TASK 72-60-22-300-020 Starter Drive Gear Housing - Replace The Damaged Inserts, Repair-020 (VRS5328)

DMC:V2500-A0-72-60-2204-02A-920A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-60-22-300-020 Starter Drive Gear Housing - Replace The Damaged Inserts, Repair-020 (VRS5328)

Effectivity

FIG/ITEM

PART NO.

01-300

4B0248

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

Housing

-

Aluminum alloy

General

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Workshop inspection equipmentLOCALWorkshop inspection equipment
Hot air gunLOCALHot air gun

Consumables, Materials and Expendables

NONE

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Insert4P0040A/R

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-60-22-350-071 Remove the Insert

    1. Refer to Figure.

      2. Heat the housing adjacent to the insert.

      1. Use the hot air gun.

      3. Drift out the insert from the housing.

      1. Use a suitable drift.

    2. SUBTASK 72-60-22-350-072 Install the New Insert

    1. Refer to Figure.

      2. Examine the fit.

      1. Be sure there is a tight fit between the outer diameter of the new insert and the corresponding hole in housing.

      3. Heat the housing adjacent to the hole.

      1. Use the hot air gun.

    4. Install the new insert.

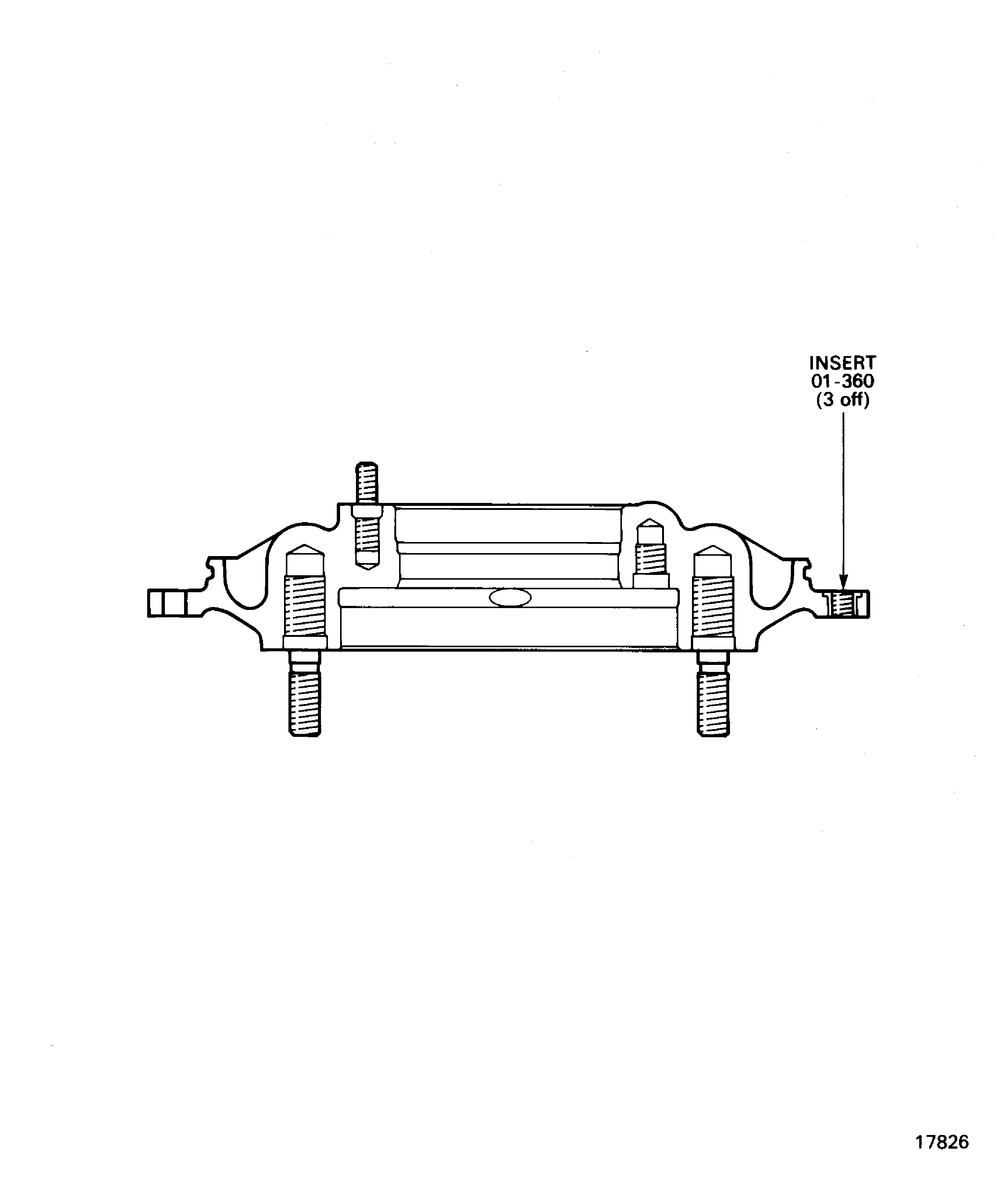

    3. Figure: Replace damaged inserts

    Replace damaged inserts

Requirements After Job Completion

Follow-On Conditions

NONE
