TASK 72-60-22-300-010 Starter Drive Gear Housing - Repair The Seal Housing Bore By Bushing In Starter Drive Housing, Repair-010 (VRS5030)

DMC:V2500-A0-72-60-2204-03A-664A-C|Issue No:004.00|Issue Date:2021-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-60-22-300-010 Starter Drive Gear Housing - Repair The Seal Housing Bore By Bushing In Starter Drive Housing, Repair-010 (VRS5030)

Effectivity

FIG/ITEM

PART NO.

01-300

4B0248

01-300A

4B0349

01-300B

4B0371

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

Housing

-

Aluminum alloy

Bushing

-

Wrought aluminum base alloy

General

NOTE

To identify the consumable materials refer to the PCI.

NOTE

Other consumable materials are given in the SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
IAE 3F10336 Drift, bushing (dia 67)0AM53IAE 3F103361
FPI Inspection stationLOCALFPI Inspection station
Magnifying Glass, 5xLOCALMagnifying Glass, 5x
OvenLOCALOven
Process Plating TanksLOCALProcess plating tanks
Vibrating Marking PencilLOCALVibrating Marking Pencil

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-001 SOLVENT, DELETEDX111XCoMat 01-001

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
BUSHING0AM534L0006

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-60-22-320-081 Machine the Seal Housing Bore in the Starter Drive Housing

    1. Refer to Figure.

      2. Machine the seal housing bore.

      1. The diameter must be 2.8331 in. to 2.8346 in. (71.960 mm to 72.000 mm), after the removal of the damage.

      3. Blend the drain holes if necessary.

      1. Blend the sharp edges around the three drain holes.

    2. SUBTASK 72-60-22-220-105 Examine the Starter Drive Housing

      1. Inspect the housing for cracks in the area of the bore.

      1. Use a 5x magnifying glass.

    3. SUBTASK 72-60-22-330-067 Apply the Chromate Conversion Coating

      1. Apply the chromate conversion coating to the machined surfaces.

      1. Refer to the SPM TASK 70-38-02-300-503.

    4. SUBTASK 72-60-22-350-081 Install the Bushing

      WARNING

      DO NOT TOUCH THE HOT PARTS WITHOUT PROTECTIVE GLOVES.
      HOT PARTS CAN CAUSE REDDENING AND BLISTERING OF THE SKIN IF THE HANDS ARE NOT PROTECTED.
      IMMERSE THE CONTACTED AREA IN COLD WATER FOR 10 MINUTES IF THE SKIN IS BURNED. IMMEDIATELY GET MEDICAL ATTENTION IF PAIN OR BLISTERING PERSISTS.

      CAUTION

      INSTALL BUSHING IN MACHINED BORE IMMEDIATELY AFTER REMOVAL FROM FREEZER, OTHERWISE BUSHING CANNOT BE CORRECTLY INSTALLED.

      NOTE

      The difference in temperature between the parts must be 216 deg F (120 deg C).

    1. Refer to Figure.

    2. CAUTION

      MAKE SURE THAT THE LEAD IN CHAMFER OF THE BUSHING POINTS AWAY FROM THE DRIFT.

      Install the bushing on the IAE 3F10336 Drift, bushing (dia 67) 1 off.

      3. Increase the temperature of the housing and/or decrease the temperature of the assembled drift and bushing.

      1. Use an oven and/or a freezer.

      2. Do not increase the temperature of the housing above 284 deg F (140 deg C). Do not decrease the temperature of the assembled drift and bushing below -58 deg F (-50 deg C).

    4. Remove the housing from the oven and/or the assembled drift and bushing from the freezer.

      5. Install the bushing into machined bore.

      1. Use IAE 3F10336 Drift, bushing (dia 67) and an arbor press.

      2. Give sufficient back-up support at bushing bore area, to prevent housing distortion, when you install the bushing.

    6. Allow the parts to reach ambient temperature.

    7. Remove the drift and the guide pin.

    5. SUBTASK 72-60-22-320-082 Machine the Inner Diameter of the Bushing

    1. Refer to Figure.

      2. Machine the inner diameter of the bushing.

      1. The dimension must be 2.6791 in. to 2.6831 in. (68.050 mm to 68.150 mm). Chamfer where necessary.

    6. SUBTASK 72-60-22-330-068 Apply the Chromate Conversion Coating

      1. Apply the chromate conversion coating to the machined surfaces of the bushing.

      1. Refer to the SPM TASK 70-38-02-300-503.

    7. SUBTASK 72-60-22-350-082 Record the Repair

      1. Vibro-engrave VRS5030.

      1. Remove the metal lifted by marking.

      2. Use vibrating marking pencil.

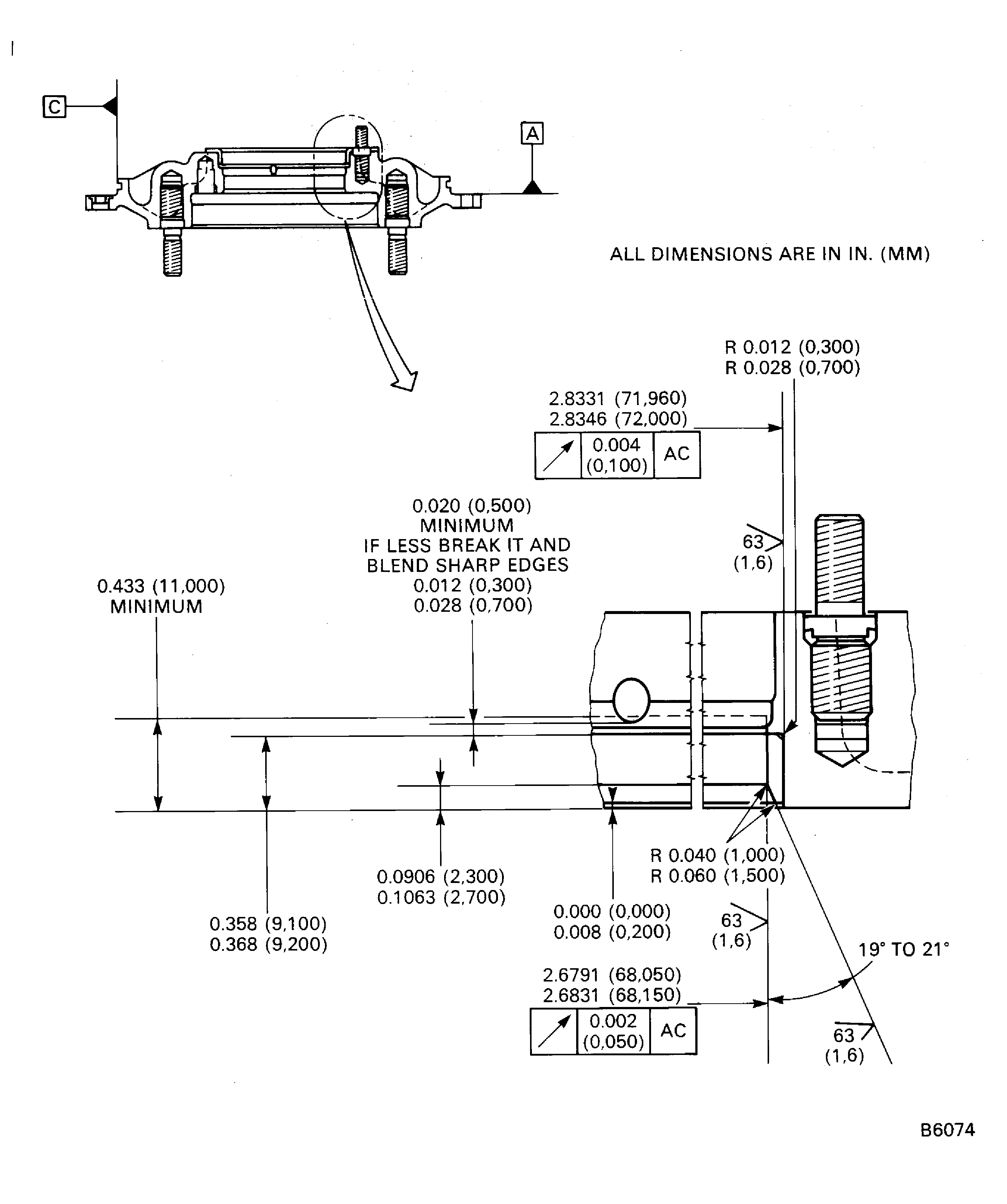

    8. Figure: Repair The Seal Housing Bore By Bushing In Starter Drive Housing

    Repair The Seal Housing Bore By Bushing In Starter Drive Housing

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Deleted grinding machine from support equipment and procedural steps. (19VF825)
