TASK 72-60-22-300-021 Starter Drive Carbon Seal Housing - Blend Repair, Repair-021 (VRS5203)
General
The practices and processes referred to in the procedure by the TASK number are in the SPM.
NOTE
To identify the consumable materials refer to the PCI.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 02-140 TRIANGULAR INDIA STONE, FINE GRIT | LOCAL | CoMat 02-140 |
Spares
NONESafety Requirements
NONEProcedure
Refer to Figure.
Refer to SPM TASK 70-35-03-300-501.
Hand polish and blend. The maximum depth of the blending is 0.005 in. (0.13 mm).
Refer to SPM TASK 70-35-03-300-501.
Hand polish and blend. The maximum depth of the blending is 0.010in. (0.25 mm).
Not seal surfaces at location 2.
SUBTASK 72-60-22-350-062 Repair the Seal Housing (01-080) Machined Surfaces

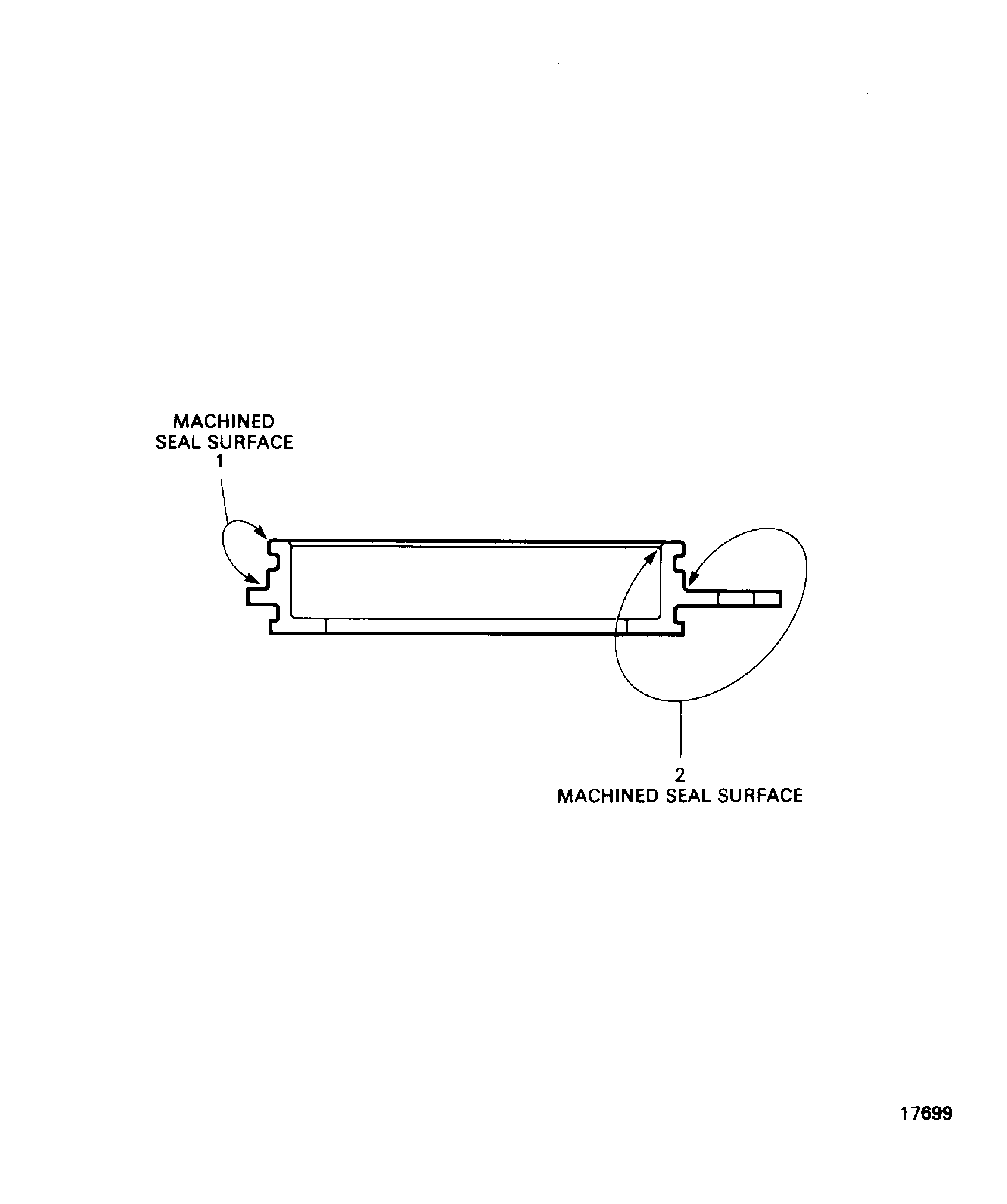

Figure: Repair details and dimensions
Repair details and dimensions
