TASK 72-60-23-300-004 Hydraulic Pump Drive Gear Housing - Nickel Plate The Hydraulic Pump Mating Surface, Repair-004 (VRS5037)

DMC:V2500-A0-72-60-2304-00A-647A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-60-23-300-004 Hydraulic Pump Drive Gear Housing - Nickel Plate The Hydraulic Pump Mating Surface, Repair-004 (VRS5037)

Effectivity

FIG/ITEM PART NO.

01-460

4B0192

01-460

4B0313

01-460

4B0350

01-460

4B0372

Material of component

RR

DESCRIPTION SYMBOL MATERIAL

Housing

-

Aluminum alloy

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

NOTE

  1. To identify the consumable materials refer to the PCI.

  2. Other consumable materials are given in the SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
BasketLOCALBasket
Grinding machineLOCALGrinding machine
Magnifying glass, 4xLOCALMagnifying glass, 4x
OvenLOCALOven
Penetrant Crack Test EquipmentLOCALPenetrant crack test equipment
Process Plating TanksLOCALProcess plating tanks
Vibro-engraving equipmentLOCALVibro-engraving equipment
Workshop inspection equipmentLOCALWorkshop inspection equipment

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-067 STRIPPABLE COATING71410CoMat 02-067

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-60-23-320-063 Machine the Hydraulic Pump Mating Surface of the Hydraulic Pump Housing

    1. Refer to: Figure

      2. Machine the mating surface.

      1. The dimension must be 0.7232 to 0.7205 in. (18.370 to 18.300 mm) after the removal of the damage. Remove all damage and wear. Keep the removal of material to the minimum necessary, to remove the damage.

    2. SUBTASK 72-60-23-230-054 Examine the Hydraulic Pump Housing

      1. Do the fluorescent penetrant inspection for cracks.

      1. Refer to the SPM TASK 70-23-01-230-501.

        Cracks are not permitted.

        Use penetrant crack test equipment.

    3. SUBTASK 72-60-23-330-058 Nickel Plate the Hydraulic Pump Mating Surface of the Hydraulic Pump Housing

    1. Refer to: Figure

      2. Mask the areas of the housing not to be plated.

      3. Do the nickel plating.

      1. Refer to the SPM TASK 70-33-08-300-503. Plate to a sufficient thickness to permit machining to the last dimensions. The plating out of the closed area is permitted, but must be removed.

    4. Remove the mask.

      5. Clean and dry the housing.

      1. Flush with cold water. Flush with hot water. Dry with air blast.

    4. SUBTASK 72-60-23-370-061 De-embrittle the Hydraulic Pump Housing

      1. Put the housing into an oven at 266 to 302 deg F (130 to 150 deg C) for 12 hours.

      1. Do this process as soon as possible, in less than 4 hours, after the plating.

    5. SUBTASK 72-60-23-220-086 Examine the Hydraulic Pump Housing

      1. Visually examine the plating for finish, cracks and adhesion.

      1. Plating must have a constant color. No circumferential cracks are permitted. Rough and blistered areas are not permitted.

    6. SUBTASK 72-60-23-320-064 Machine the Hydraulic Pump Mating Surface of the Hydraulic Pump Housing

    1. Refer to: Figure

      2. Machine the mating surface.

      1. The dimension must be 0.7323 to 0.7244 in. (18.600 to 18.400 mm), in relation to surface B. Clean up the edges of the groove. Chamfer where necessary. Use grinding machine.

    7. SUBTASK 72-60-23-220-087 Examine the Nickel Plated Area

    1. Refer to: Figure

      2. Visually examine the plated area for cracks and adhesion.

      1. Use a 4x magnifying glass. The natural network crack, emphasized by grinding, is permitted.

      3. Measure the thickness of the plating.

      1. Do not accept a thickness of less than 0.0006 in. (0.015 mm), after the last machining.

    8. SUBTASK 72-60-23-350-065 Record the Repair

      1. Vibro-engrave VRS5037 adjacent to the part number.

      1. Remove the metal lifted by marking.

        Use vibro-engraving equipment.

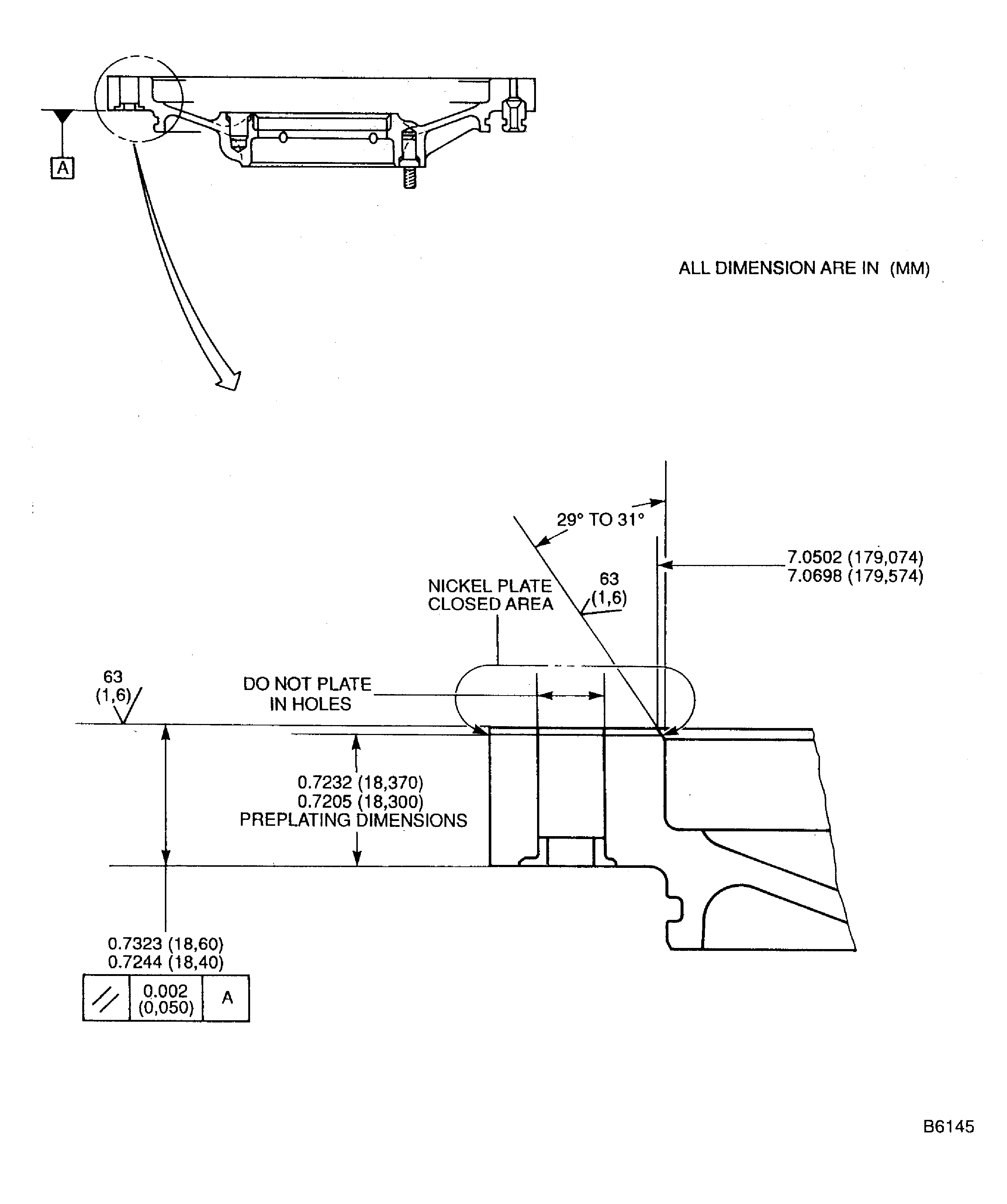

    9. Figure: Repair Details and Dimensions

    Repair Details and Dimensions
