TASK 72-60-23-300-003 Hydraulic Pump Drive Gear Housing - Replace The Damaged Screw Thread Inserts, Repair-003 (VRS5036)

DMC:V2500-A0-72-60-2304-01A-920A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-60-23-300-003 Hydraulic Pump Drive Gear Housing - Replace The Damaged Screw Thread Inserts, Repair-003 (VRS5036)

Effectivity

FIG/ITEM PART No.

01-460

4B0192

01-460

4B0313

01-460

4B0350

01-460

4B0372

Material of component

RR

DESCRIPTION SYMBOL MATERIAL

Housing

-

A357-T61 (AMS4219)

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
DrillLOCALDrill

5/16 in. (7.937 mm) (removal)

Square screw extractorLOCALSquare screw extractor

(removal)

R1106W Wrench, installationLOCALR1106W Wrench, installation
R206D Drive tool, installationLOCALR206D Drive tool, installation

Tools for removal and installation may be purchased from ROSAN Inc., 2901 West Coast Highway, Newport Beach, California 92663, USA.

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 10-048 LUBRICANT0AM53CoMat 10-048

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Lock ringMS51990E106PA/R
Screw insertMS51991E206LA/R

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-60-23-320-052 Mill the Lock Ring

    1. Refer to: Figure

      2. Install the removal tool in drill press chuck.

      1. Use 5/16in. (7.937 mm) diameter removal drill for lock ring.

      3. Mill through lock ring to remove serration interlock.

      1. It is not necessary the mill fully through the lock ring.

    2. SUBTASK 72-60-23-350-057 Remove the Insert

      1. Apply the removal torque to the insert.

      1. Drive the square screw extractor into the insert.

        Continuous pressure of withdrawn insert could cause lock ring to be forced out from its location.

        Break with a punch and remove the remaining portion of lock ring if it has been milled fully through and it does not lift out with the insert.

    2. Complete the removal of the insert.

    3. SUBTASK 72-60-23-350-058 Install the New Insert

    1. Refer to: Figure

      2. Lubricate the coarse threaded insert end.

      1. Start insert into housing.

      3. Install the insert.

      1. The depth is given in Figure.

        Use R1106W wrench.

    4. SUBTASK 72-60-23-350-059 Install the Lock Ring

    1. Refer to: Figure

      2. Install the new lock ring.

      1. Align the external serrations of the new lock ring with those in parent material of the housing.

      3. Seat the new lock ring.

      1. Seat the new lock ring to depth given in Figure.

        Use R206D drive tool.

    5. SUBTASK 72-60-23-330-052 Restore the Damaged Anodic Treatment

      1. Check the surface.

      1. Do the touch up process if the anodic treatment has been damaged by insert installation.

        Refer to the SPM TASK 70-38-02-300-503.

    6. SUBTASK 72-60-23-230-053 Crack Test the Repaired Area

      1. Do a crack test on the repaired area.

      1. Refer to the SPM TASK 70-23-01-230-501.

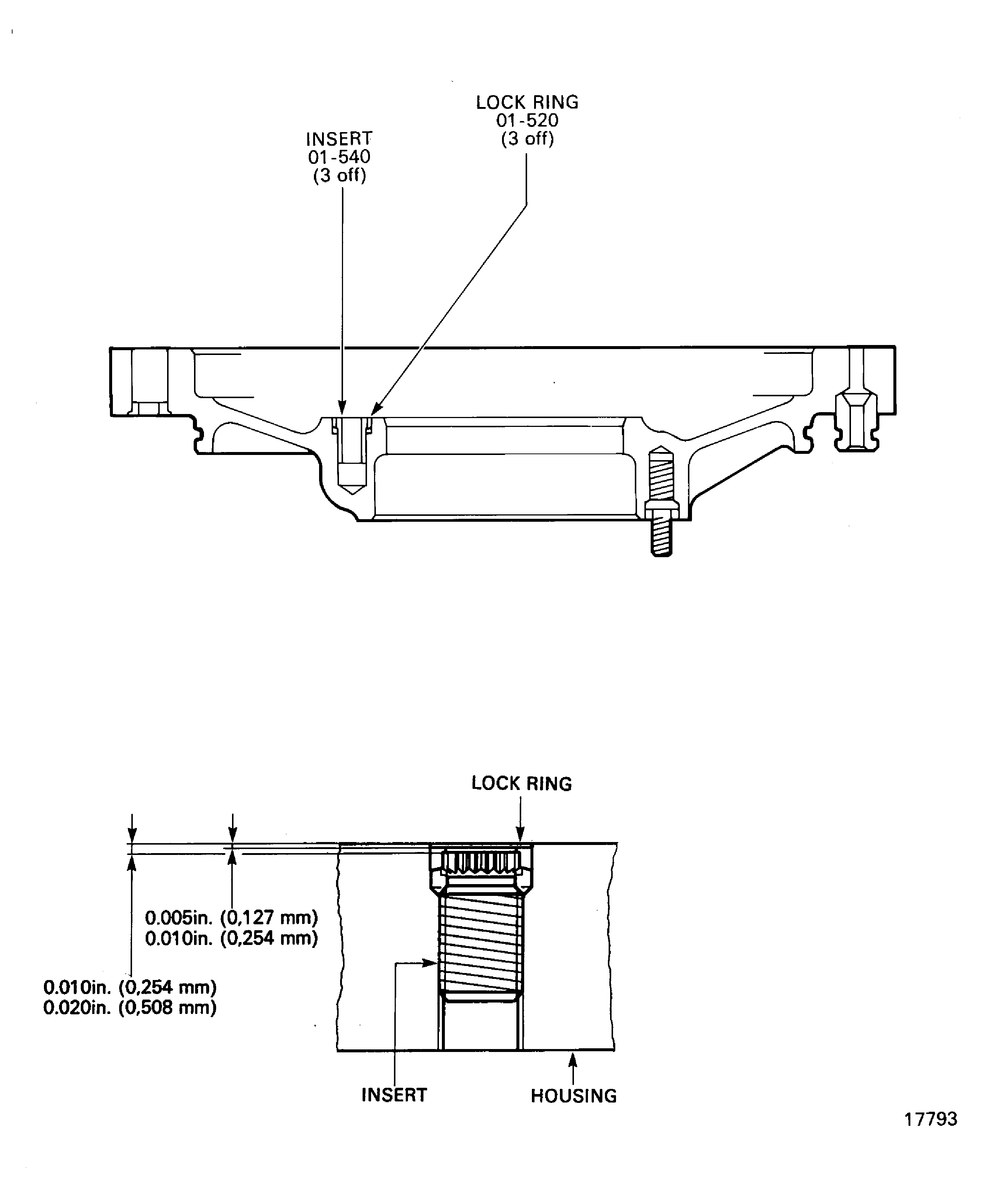

    7. Figure: Repair Details and Dimensions

    Repair Details and Dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
