TASK 72-60-24-300-009 Input Gearshaft - Blend Repair, Repair-009 (VRS5139)
General
NOTE
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 02-140 TRIANGULAR INDIA STONE, FINE GRIT | LOCAL | CoMat 02-140 |
Spares
NONESafety Requirements
NONEProcedure
Refer to Figure.
Refer to the SPM TASK 70-35-03-300-501.
The maximum permitted depth of the blending on the spline and on the gear is 0.0014in. (0.035 mm).
The maximum permitted damaged area of each tooth is 10 percent of the engagement surface.
It is not necessary to polish the repaired surfaces.
Blend the engagement surface of the spline teeth and gear teeth at location 1 and 2.
Refer to the SPM TASK 70-35-03-300-501 .
The maximum number of nicks permitted is 3 per tooth, 0.04 in. (1.02 mm) long, and each nick must not extend more than 0.02 in. (0.51 mm) onto the engagement surface.
The maximum permitted depth of blended nicks is 0.004 in. (0.10 mm).
The minimum distance between the nicks must be equal to or more than the length of the longest nick.
Blend the spline teeth tip at location 1.
Refer to the TASK 70-35-03-300-501 .
The maximum permitted depth of the blending is 0.010 in. (0.25 mm).
Blend the bearing journal and shoulder surfaces at location 3.
Refer to the TASK 70-35-03-300-501 .
The maximum number of nicks permitted is 3 per tooth, 0.04 in. (1.02 mm) long, and each nick must not extend more than 0.02 in. (0.51 mm) onto the engagement surface.
The maximum permitted depth of blended nicks is 0.01 in. (0.25 mm).
The minimum distance between the nicks must be equal to or more than the length of the longest nick.
Blend the gear tooth tip and tooth side at locations 4 and 5.
SUBTASK 72-60-24-350-053 Blend Repair the Gearshaft (01-140) Surfaces

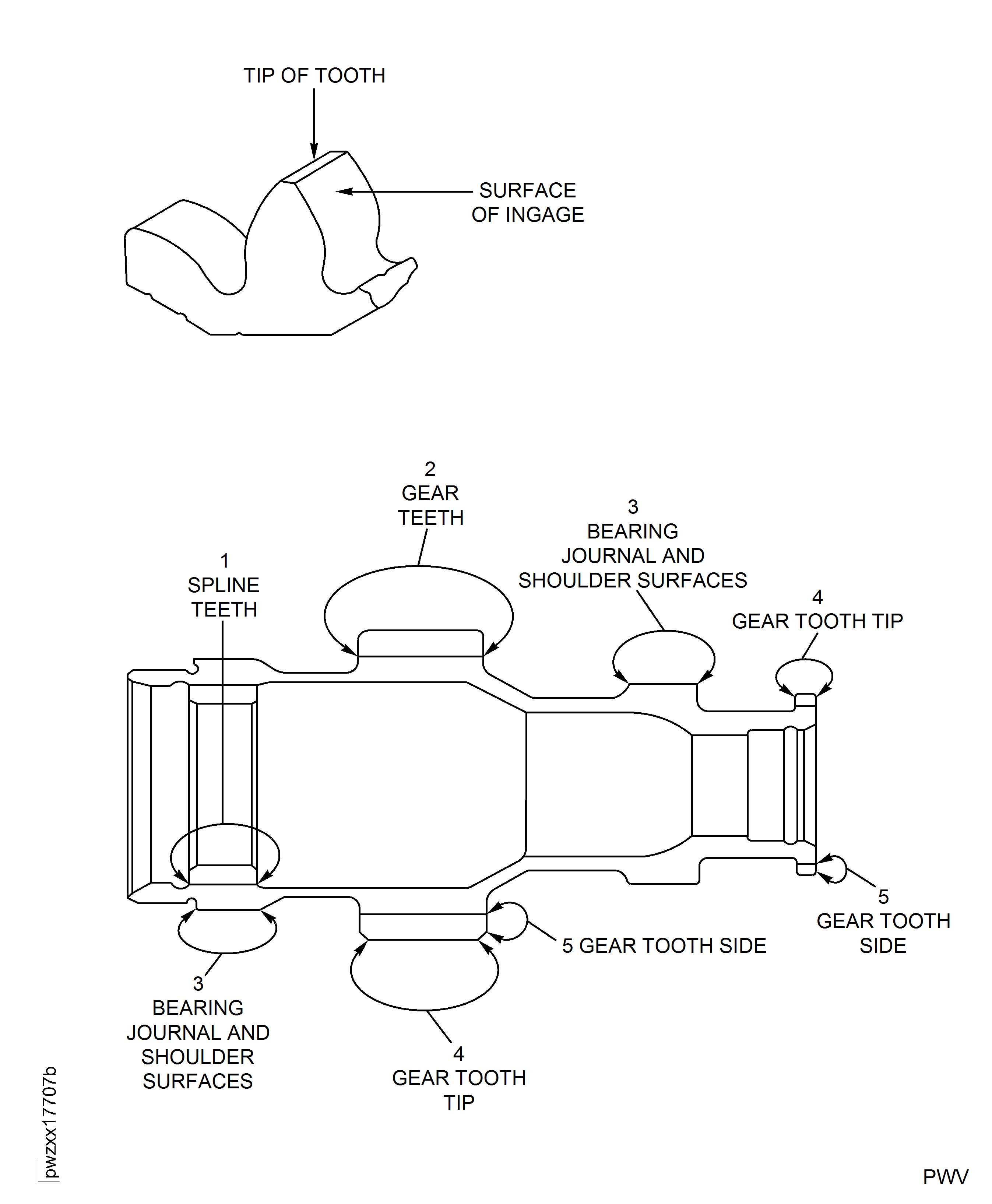

Figure: Repair Details And Dimensions
Repair Details And Dimensions
