TASK 72-60-24-300-006 PMA Drive Housing - Repair The PMA Support Bore And Bushing, Repair-006 (VRS5075)

DMC:V2500-A0-72-60-2404-03A-664A-C|Issue No:005.00|Issue Date:2021-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-60-24-300-006 PMA Drive Housing - Repair The PMA Support Bore And Bushing, Repair-006 (VRS5075)

Effectivity

FIG/ITEM

PART NO.

01-180

4B0292

01-180

4B0352

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

Housing

-

Aluminum alloy

Bushing

-

Wrought aluminum base alloy

General

NOTE

  1. To identify the consumable materials refer to the PCI.

  2. Other consumable materials are given in the SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
IAE 3F10338 Drift0AM53IAE 3F103381
Magnifying Glass, 5xLOCALMagnifying Glass, 5x
OvenLOCALOven
Vibrating Marking PencilLOCALVibrating Marking Pencil

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-001 SOLVENT, DELETEDX111XCoMat 01-001

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
BushingLOCAL4L0001

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-60-24-320-074 Machine the Bearing Bore of the PMA Drive Housing

    1. Refer to Figure.

      2. Machine the bearing bore.

      1. The diameter must be 3.3449 in. to 3.3465 in. (84.96 mm to 85.00 mm) after the removal of the damage.

      2. Remove all damage and wear.

      3. Deleted.

    2. SUBTASK 72-60-24-220-087 Examine the PMA Drive Housing

      1. Inspect the housing for cracks in the area of the bore.

    3. SUBTASK 72-60-24-330-065 Apply the Chromate Conversion Coating

      1. Apply the chromate conversion coating to the machined surfaces.

      1. Refer to SPM TASK 70-38-02-300-503.

    4. SUBTASK 72-60-24-350-074 Install the Bushing

    1. Refer to Figure.

    2. CAUTION

      MAKE SURE THAT THE LEAD IN CHAMFER OF THE BUSHING POINTS AWAY FROM THE DRIFT.

      Install the bushing on the IAE 3F10338 Drift 1 off.

      3. WARNING

        DO NOT TOUCH THE HOT PARTS WITHOUT PROTECTIVE GLOVES.

        WARNING

        HOT PARTS CAN CAUSE REDDENING AND BLISTERING OF THE SKIN IF THE HANDS ARE NOT PROTECTED.

        WARNING

        IMMERSE THE CONTACTED AREA IN COLD WATER FOR 10 MINUTES IF THE SKIN IS BURNED. IMMEDIATELY GET MEDICAL ATTENTION IF PAIN OR BLISTERING PERSISTS.

        Increase the temperature of the housing and/or decrease the temperature of the assembled drift and bushing.

      1. Use an Oven and/or a freezer.

      2. Do not increase the temperature of the housing above 284 deg F (140 deg C).

      3. Do not decrease the temperature of the assembled drift and bushing below -58 deg F (-50 deg C).

      4. Use protective gloves.

    4. NOTE

      The difference in temperature between the parts must be not less than 248 deg F (120 deg C).

      Remove the housing from the oven and/or the assembled drift and bushing from the freezer.

      5. CAUTION

        INSTALL BUSHING IN MACHINED BORE IMMEDIATELY AFTER REMOVAL FROM FREEZER, OTHERWISE BUSHING CANNOT BE CORRECTLY INSTALLED.

        Install the bushing into machined bore.

      1. Use IAE 3F10338 Drift 1 off and an arbor press.

      2. Give sufficient back-up support at bushing bore area to prevent housing distortion when you install the bushing.

    6. Allow the parts to reach ambient temperature.

    7. Remove the drift.

    5. SUBTASK 72-60-24-320-075 Machine the Inner Diameter of the Bushing

    1. Refer to Figure.

      2. Machine the inner diameter of the bushing.

      1. The dimensions must be 3.1890 in. to 3.1904 in. (81.000 mm to 81.035 mm).

      2. Chamfer where necessary.

      3. Deleted.

    6. SUBTASK 72-60-24-330-066 Apply the Chromate Conversion Coating

      1. Apply the chromate conversion coating to the machined surfaces.

      1. Refer to SPM TASK 70-38-02-300-503.

    7. SUBTASK 72-60-24-350-076 Record the Repair

      1. Vibro engrave VRS5075 adjacent to the part number.

      1. Remove the metal lifted by marking.

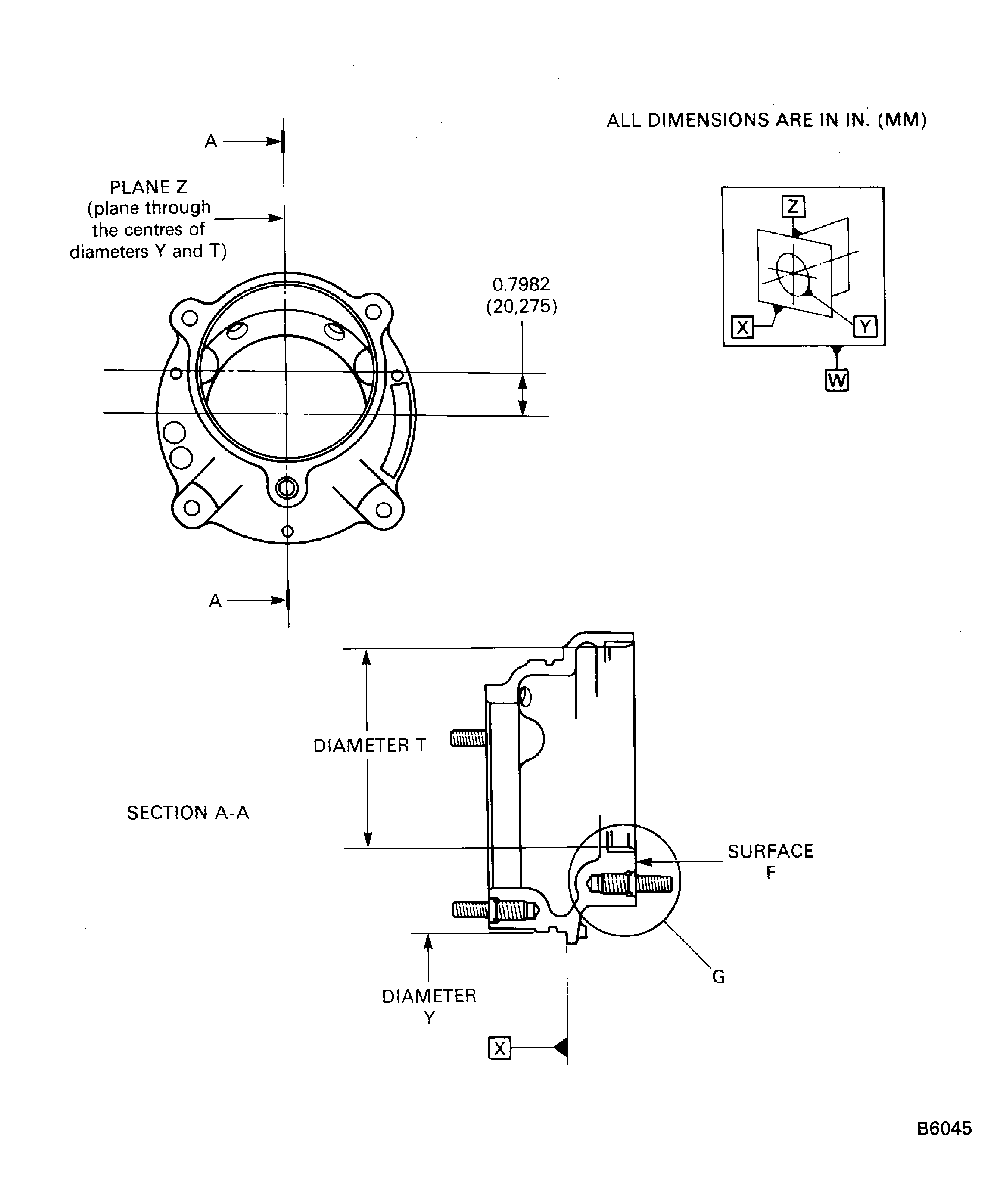

    8. Figure: Repair The PMA Support Bore And Bushing In PMA Drive Housing

    Repair The PMA Support Bore And Bushing In PMA Drive Housing

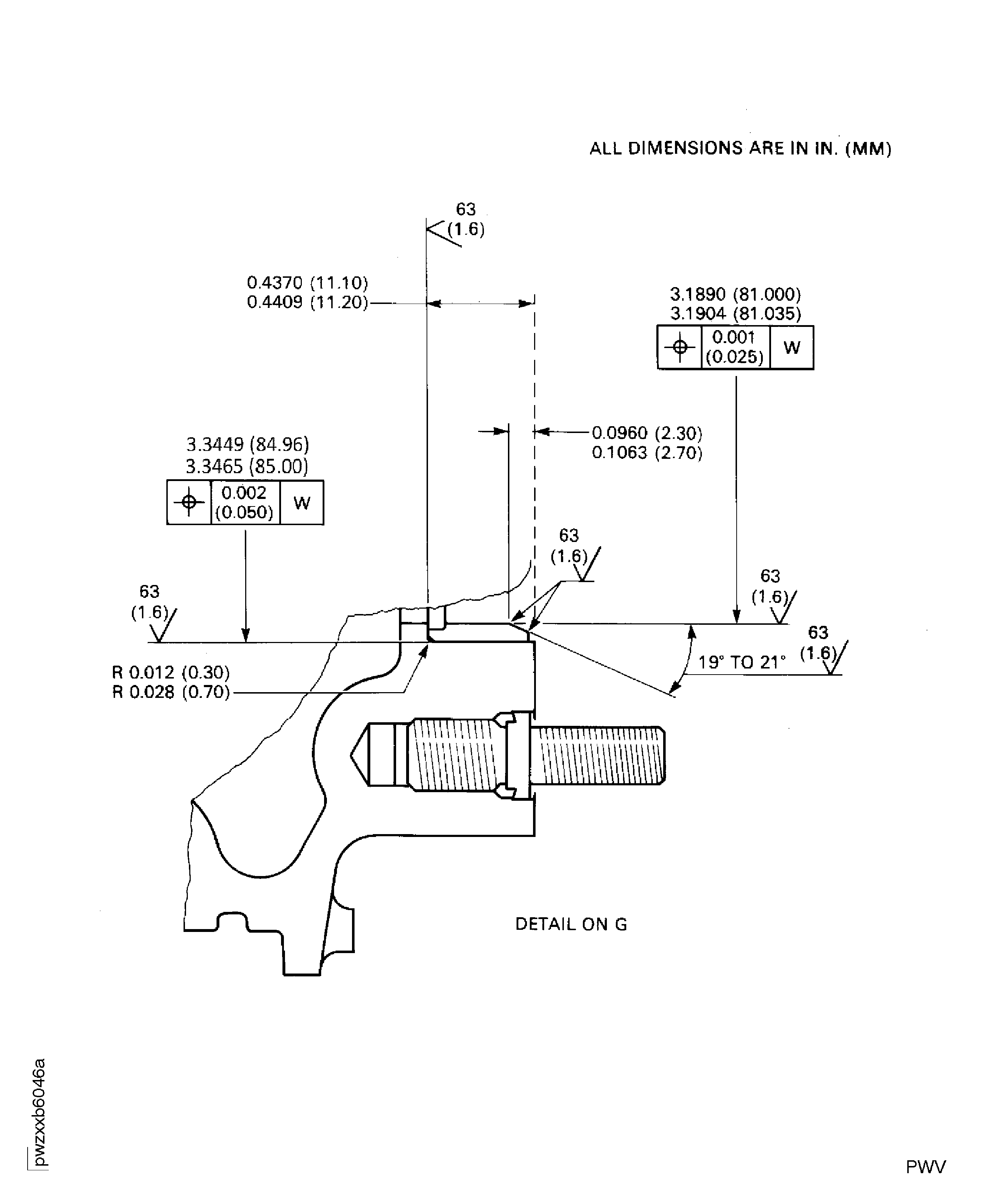

    Figure: Repair The PMA Support Bore And Bushing In PMA Drive Housing

    Repair The PMA Support Bore And Bushing In PMA Drive Housing
