TASK 72-60-24-300-002 PMA Drive Housing - Replace The Damaged Studs, Repair-002 (VRS5071)

DMC:V2500-A0-72-60-2404-04A-920A-C|Issue No:002.00|Issue Date:2016-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-60-24-300-002 PMA Drive Housing - Replace The Damaged Studs, Repair-002 (VRS5071)

Effectivity

FIG/ITEM

PART NO.

01-180

4B0292

01-180

4B0352

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

Housing

-

A357-T61

(AMS 4219)

General

NOTE

To identify the consumable materials refer to the PCI.

NOTE

Tools for removal and installation may be purchased from ROSAN Inc., 2901 West Coast Highway, Newport Beach, California 92663

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
SM101-18 Removal toolLOCALSM101-18 Removal tool
R1105W WrenchLOCALR1105W Wrench
S101D12 Drive toolLOCALS101D12 Drive tool

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 10-048 LUBRICANTLOCALCoMat 10-048

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Lock ringMS51990E-105PA/R
StudMS51551C205-9A/R

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-60-24-320-051 Mill the Lock Ring

    1. Refer to Figure.

      2. Install the removal tool in drill press chuck.

      1. Lower drill press above stud shank before starting motor.

      2. Use SM101-18 Removal tool 1 off for lock ring 01-200.

      3. Cut off stud if too long for the removal tool.

      4. Keep sufficient shank length to give pilot for the removal tool.

      3. Mill through lock ring to remove serration interlock.

      1. Lift tool frequently to permit the cutting teeth to be clear from chips.

      2. It is not necessary to mill fully through the lock ring.

    2. SUBTASK 72-60-24-350-054 Remove the Stud

      1. Apply the removal torque to the stud.

      1. Continuous pressure of withdrawn stud should cause lock ring to be forced out from its location.

      2. Break with a punch and remove the remaining portion of lock ring if it has been milled fully through and it does not lift out with the stud.

    2. Complete the removal of the stud.

    3. SUBTASK 72-60-24-350-055 Install the New Stud

    1. Refer to Figure.

      2. Lubricate the coarse threaded stud end.

      2. Start stud into housing.

      3. Install the stud.

      1. The depth is given in Figure.

        Stud must be perpendicular to flat surface of relevant flange within 0.014 in. (0.35 mm) each 4 in. (101.60 mm).

      2. Use R1105W Wrench 1 off for stud 01-220.

    4. SUBTASK 72-60-24-350-056 Install the Lock Ring

    1. Refer to Figure.

      2. Install the new lock ring.

      1. Align the external serrations of the new lock ring with those in parent material of the housing.

      3. Seat the new lock ring.

      1. Seat the new lock ring to depth given in Figure.

      2. Use S101D12 Drive tool 1 off for lock ring 01-200.

    5. SUBTASK 72-60-24-330-051 Restore the Damaged Anodic Treatment

      1. Check the surface.

      1. Do the touch up process if the anodic treatment has been damaged by stud installation.

      2. Refer to SPM TASK 70-38-02-300-503.

    6. SUBTASK 72-60-24-230-052 Crack Test the Repaired Area

      1. Do a crack test on the repaired area.

      1. Refer to SPM TASK 70-23-01-230-501.

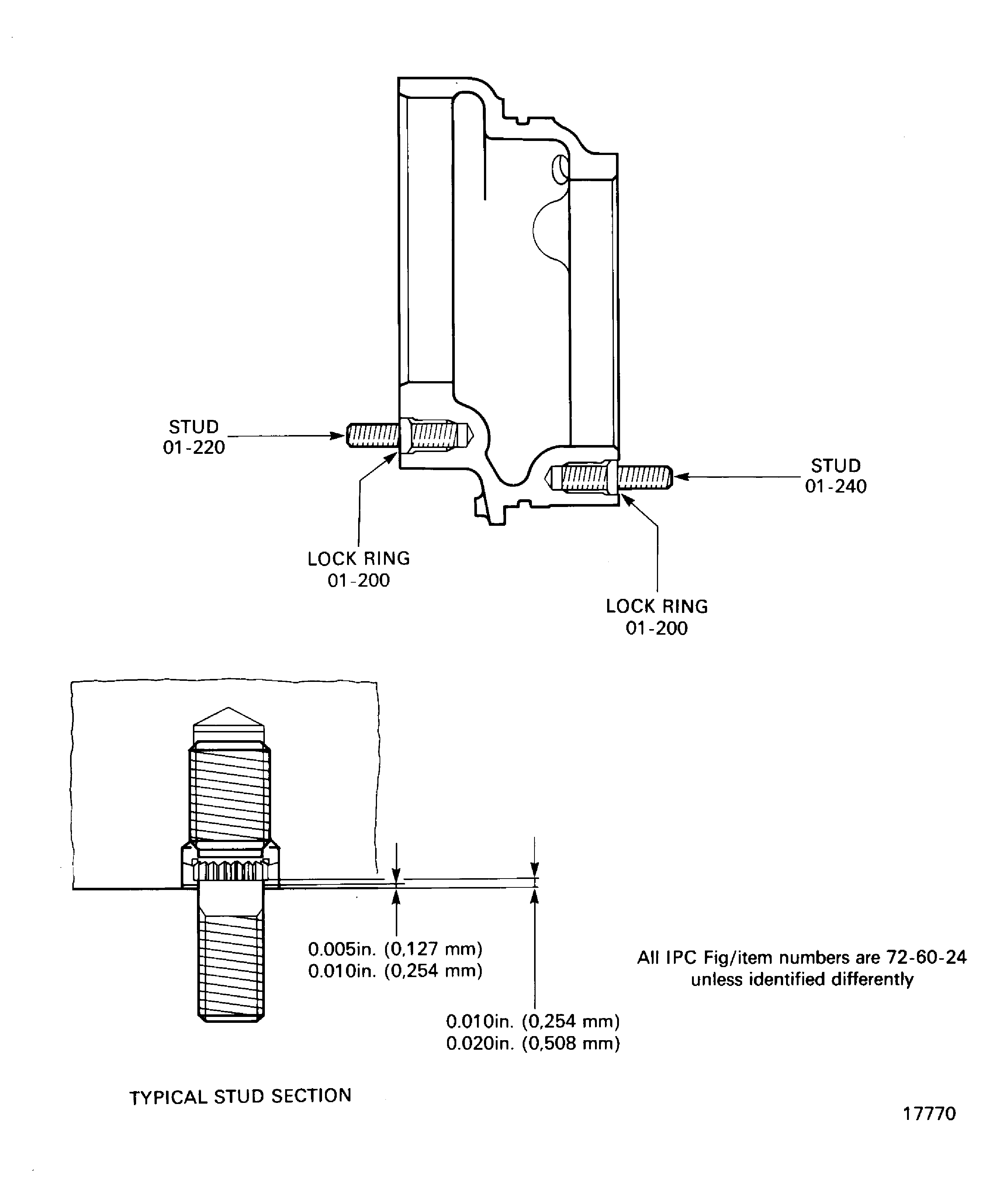

    7. Figure: Repair Details and Dimensions

    Repair Details and Dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Added PN 4B0352 to the procedure. (11VF846A)
