TASK 72-60-25-440-001 Fuel Pump Drive Gear And Bearing Assembly - Assemble The Gear Drive And Bearing Assembly, Assembly-001

DMC:V2500-A0-72-60-2500-00A-710A-B|Issue No:002.00|Issue Date:2018-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-60-25-440-001 Fuel Pump Drive Gear And Bearing Assembly - Assemble The Gear Drive And Bearing Assembly, Assembly-001

General

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

For all parts identified in a different Chapter/Section/Subject, the applicable Chapter/Section/Subject comes before the Fig/item number.

For standard torque data and procedures, refer to the SPM TASK 70-41-00-400-501 and TASK 70-41-02-400-501.

Special torque data and assembly tolerances are included in the procedure.

Lubricate all threads and abutment faces of nuts and bolts with CoMat 10-077 APPROVED ENGINE OILS, unless other lubricants are referred to in the procedure.

To identify, lubricate and install seal rings, refer to SPM TASK 70-44-01-400-501.

After assembly apply CoMat 07-012 AIR DRYING ENAMEL to any damaged surface protection, joint flanges and attach parts. Use the correct color of the air drying enamel. Refer to TASK 70-38-06-380-501.

The number for each radial location must be identified in a clockwise direction. These start at the engine top position when you look from the rear of the engine, unless stated differently in the procedure.

NOTE

To identify the consumable materials refer to the PCI.

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Arbor PressLOCAL
Hot Air GunLOCAL
OvenLOCAL
IAE 1F10002 Pusher0AM53IAE 1F100021
IAE 1F10171 Base, installation0AM53IAE 1F101711
IAE 1F10174 Drift0AM53IAE 1F101741
IAE 1F10168 Base, installation0AM53IAE 1F101681
IAE 1F10172 Drift, installation (2500-A1)0AM53IAE 1F101721
IAE 1F10166 Base, installation0AM53IAE 1F101661
IAE 1F10156 Drift0AM53IAE 1F101561
IAE 1F10426 Drift0AM53IAE 1F104261

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 07-012 AIR DRYING ENAMELLOCALCoMat 07-012
CoMat 10-077 APPROVED ENGINE OILSIAE00CoMat 10-077

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-60-25-440-051 Install the Carbon Seal in to the Seal Housing

    1. Refer to Figure.

    2. Put the seal housing in to oven and increase the temperature to 250 deg F (121 deg C) maximum.

    3. WARNING

      DO NOT TOUCH THE HOT PARTS WITHOUT PROTECTIVE GLOVES.
      HOT PARTS CAN CAUSE REDDENING AND BLISTERING OF THE SKIN IF THE HANDS ARE NOT PROTECTED.
      IMMERSE THE CONTACTED AREA IN COLD WATER FOR 10 MINUTES IF THE SKIN IS BURNED. IMMEDIATELY GET THE MEDICAL ATTENTION IF PAIN OR BLISTERING PERSISTS.

      Install the seal housing on the adapter of IAE 1F10002 Pusher 1 off with the smaller ID to the bottom.

    4. Put the carbon seal in to the seal housing with the carbon face to the top. Push the drift until the carbon seal is fully installed in to the seal housing.

    5. Remove the drift and the seal housing from the adapter.

    2. SUBTASK 72-60-25-440-052 Install the Inner Race of the Roller Bearing (01-290) on the Gearshaft

    1. Refer to Figure.

    2. Install the gearshaft on IAE 1F10168 Base, installation 1 off with the internal splined end to the bottom.

    3. Put the inner race of the roller bearing in to oven and increase the temperature to 250 deg F (121 deg C) maximum.

    4. WARNING

      DO NOT TOUCH THE HOT PARTS WITHOUT PROTECTIVE GLOVES.
      HOT PARTS CAN CAUSE REDDENING AND BLISTERING OF THE SKIN IF THE HANDS ARE NOT PROTECTED.
      IMMERSE THE CONTACTED AREA IN COLD WATER FOR 10 MINUTES IF THE SKIN IS BURNED. IMMEDIATELY GET THE MEDICAL ATTENTION IF PAIN OR BLISTERING PERSISTS.

      Put the inner race of the roller bearing on the gearshaft.

    5. Put IAE 1F10172 Drift, installation (2500-A1) 1 off or IAE 1F10426 Drift 1 off on the inner race of the roller bearing with the guide pusher of the drift in to the ID of the gearshaft.

    6. Push the drift until the inner race of the roller bearing touch the shoulder of the gearshaft. Use arbor press or equivalent. Apply a load of 3372 lbf (15000 N).

    7. Remove the drift from the gearshaft.

    8. Let the inner race of the roller bearing get to the room temperature. Make sure the inner race of the roller bearing is correctly installed on the gearshaft.

    9. Remove the gearshaft from the base.

    3. SUBTASK 72-60-25-440-053 Install the Inner Race of the Roller Bearing (01-180) on the Gearshaft

    1. Refer to Figure.

    2. Install the gearshaft on IAE 1F10171 Base, installation 1 off with the internal splined end to the top.

    3. Put the inner race of the roller bearing in to oven and increase the temperature to 250 deg F (121 deg C).

    4. WARNING

      DO NOT TOUCH THE HOT PARTS WITHOUT PROTECTIVE GLOVES.
      HOT PARTS CAN CAUSE REDDENING AND BLISTERING OF THE SKIN IF THE HANDS ARE NOT PROTECTED.
      IMMERSE THE CONTACTED AREA IN COLD WATER FOR 10 MINUTES IF THE SKIN IS BURNED. IMMEDIATELY GET THE MEDICAL ATTENTION IF PAIN OR BLISTERING PERSISTS.

      Put the inner race of the roller bearing on the gearshaft.

    5. Put IAE 1F10174 Drift 1 off on the inner race of the roller bearing with the guide pusher of the drift in to the ID of the gearshaft.

    6. Push the drift until the inner race of the roller bearing touch the shoulder of the gearshaft. Use arbor press or equivalent. Apply a load of 3147 lbf (14000 N).

    7. Remove the drift from the gearshaft.

    8. Let the inner race of the roller bearing get to the room temperature. Make sure the inner race of the roller bearing is correctly installed on the gearshaft.

    9. Remove the gearshaft from the base.

    4. SUBTASK 72-60-25-440-054 Install the Outer Race of the Roller Bearing on the Fuel Pump Drive Housing

    1. Refer to Figure.

    2. WARNING

      DO NOT TOUCH THE HOT PARTS WITHOUT PROTECTIVE GLOVES.
      HOT PARTS CAN CAUSE REDDENING AND BLISTERING OF THE SKIN IF THE HANDS ARE NOT PROTECTED.
      IMMERSE THE CONTACTED AREA IN COLD WATER FOR 10 MINUTES IF THE SKIN IS BURNED. IMMEDIATELY GET THE MEDICAL ATTENTION IF PAIN OR BLISTERING PERSISTS.

      NOTE

      If the subsequent operation is not easy, locally increase the temperature of the bearing housing to 250 deg F (121 deg C) maximum. Use hot air gun.

      Install the fuel pump drive housing on IAE 1F10166 Base, installation 1 off. Install the bolts which attach the fuel pump drive housing to the base. Tighten the bolts.

    3. Install the outer race of the roller bearing on the fuel pump drive housing. Use IAE 1F10156 Drift 1 off.

    5. SUBTASK 72-60-25-440-055 Install the Gearshaft on the Fuel Pump Drive Housing

    1. Refer to Figure.

    2. Install the shroud around the gearshaft.

    3. Install the gearshaft in to the fuel pump drive housing with splined end to the top.

    4. Install the inner race of the roller bearing in to the outer race on the fuel pump drive housing. Align the holes of the shroud with the studs of the fuel pump drive housing.

    5. Install the three nuts which attach the shroud and the outer race of the roller bearing on the fuel pump drive housing. Torque to 85 to 95 lbfin (9.604 to 10.734 Nm).

    6. Remove the bolts which attach the fuel pump drive housing to the base. Remove the fuel pump drive housing from the base.

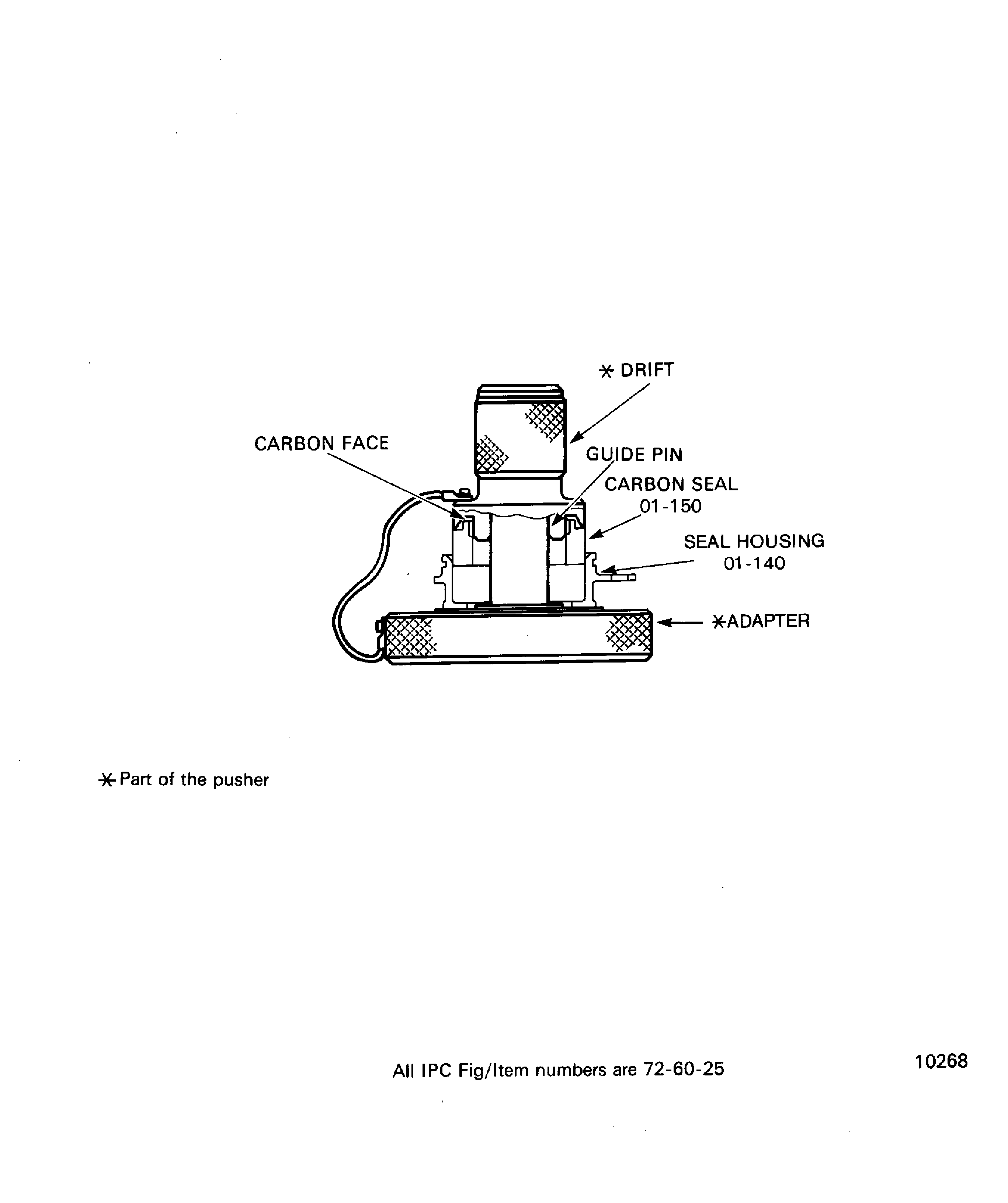

    6. Figure: Install the carbon seal in to the seal housing

    Install the carbon seal in to the seal housing

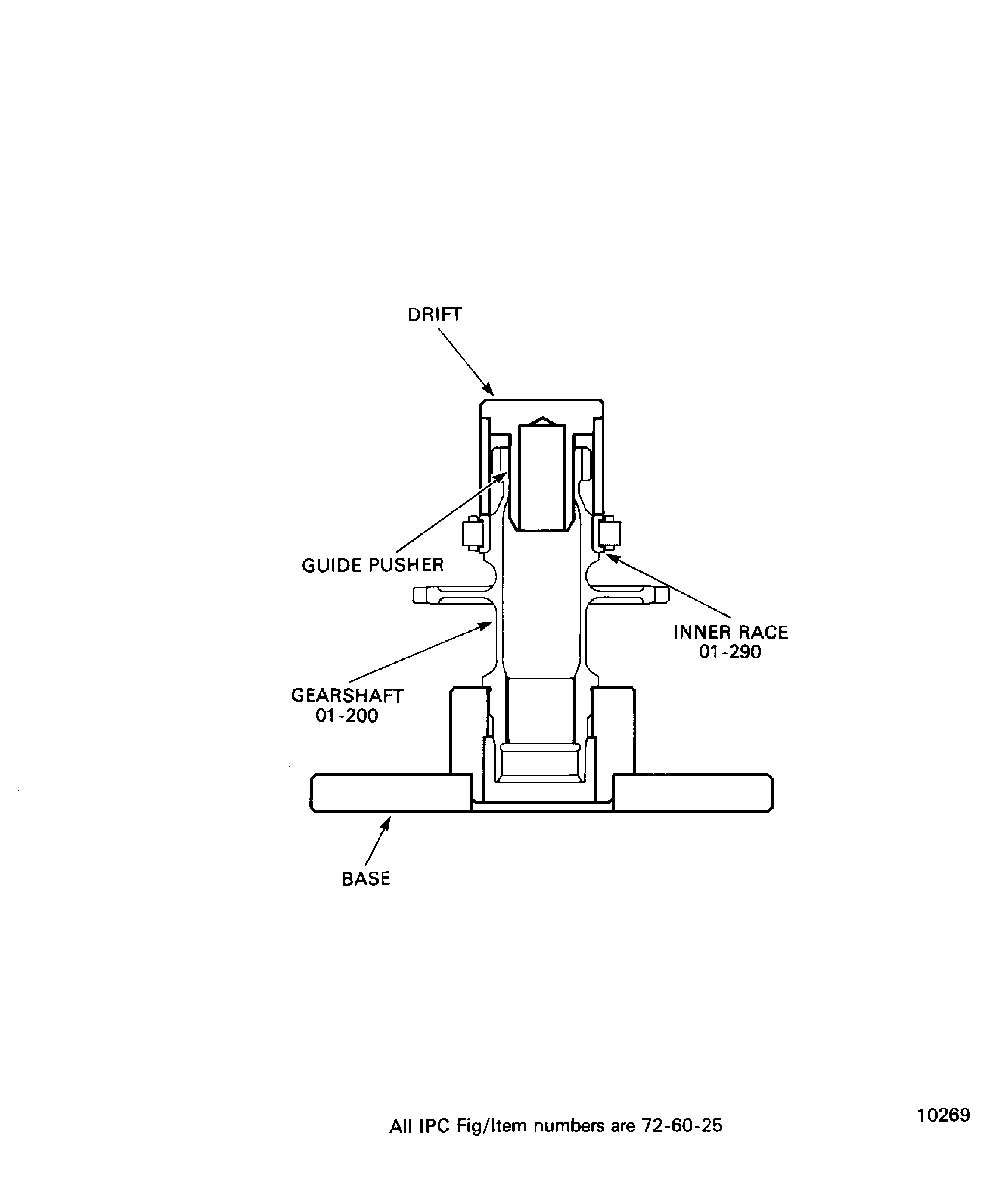

    Figure: Install the inner race of the roller bearing (01-290) on the gearshaft

    Install the inner race of the roller bearing (01-290) on the gearshaft

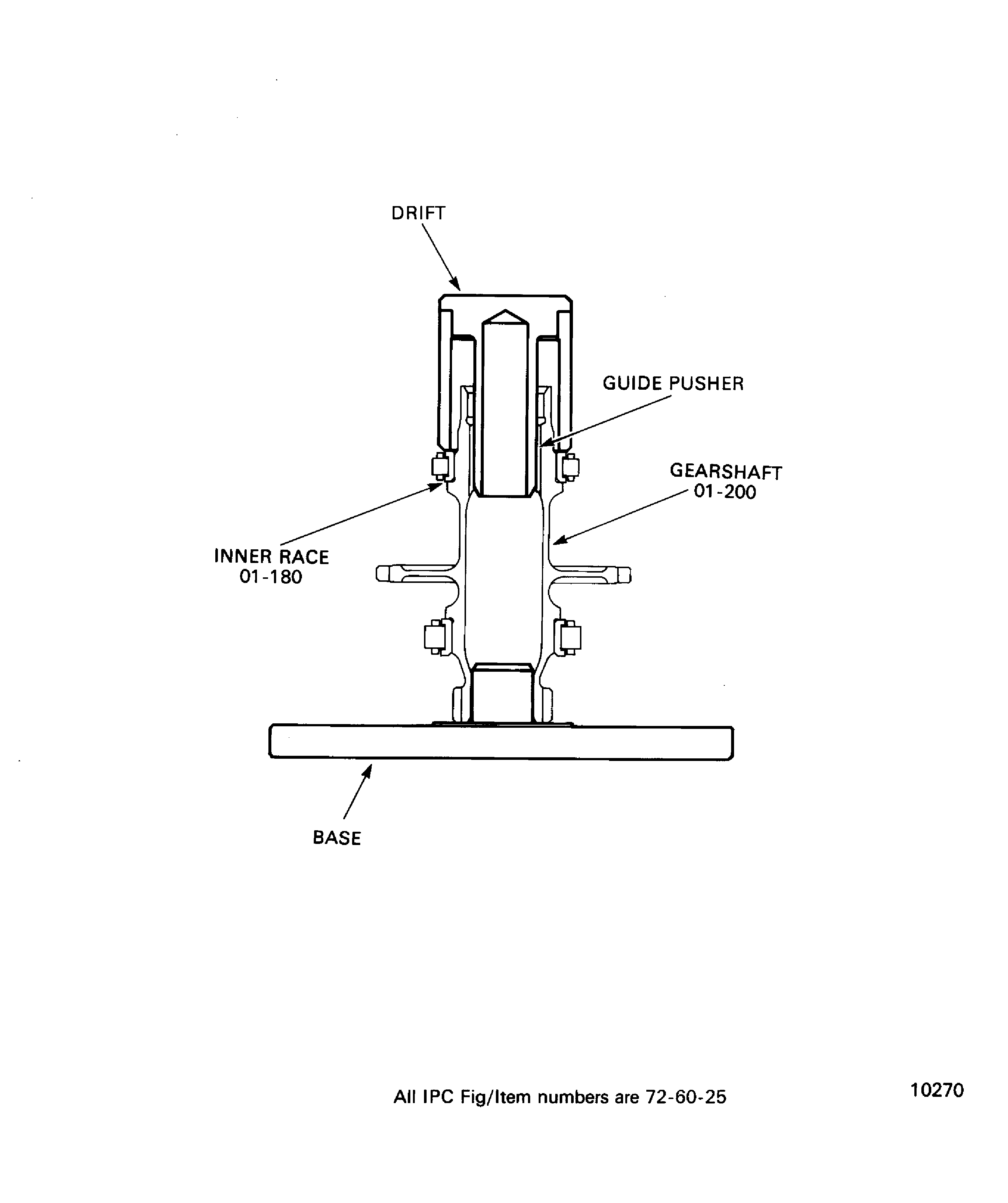

    Figure: Install the inner race of the roller bearing (01-180) on the gearshaft

    Install the inner race of the roller bearing (01-180) on the gearshaft

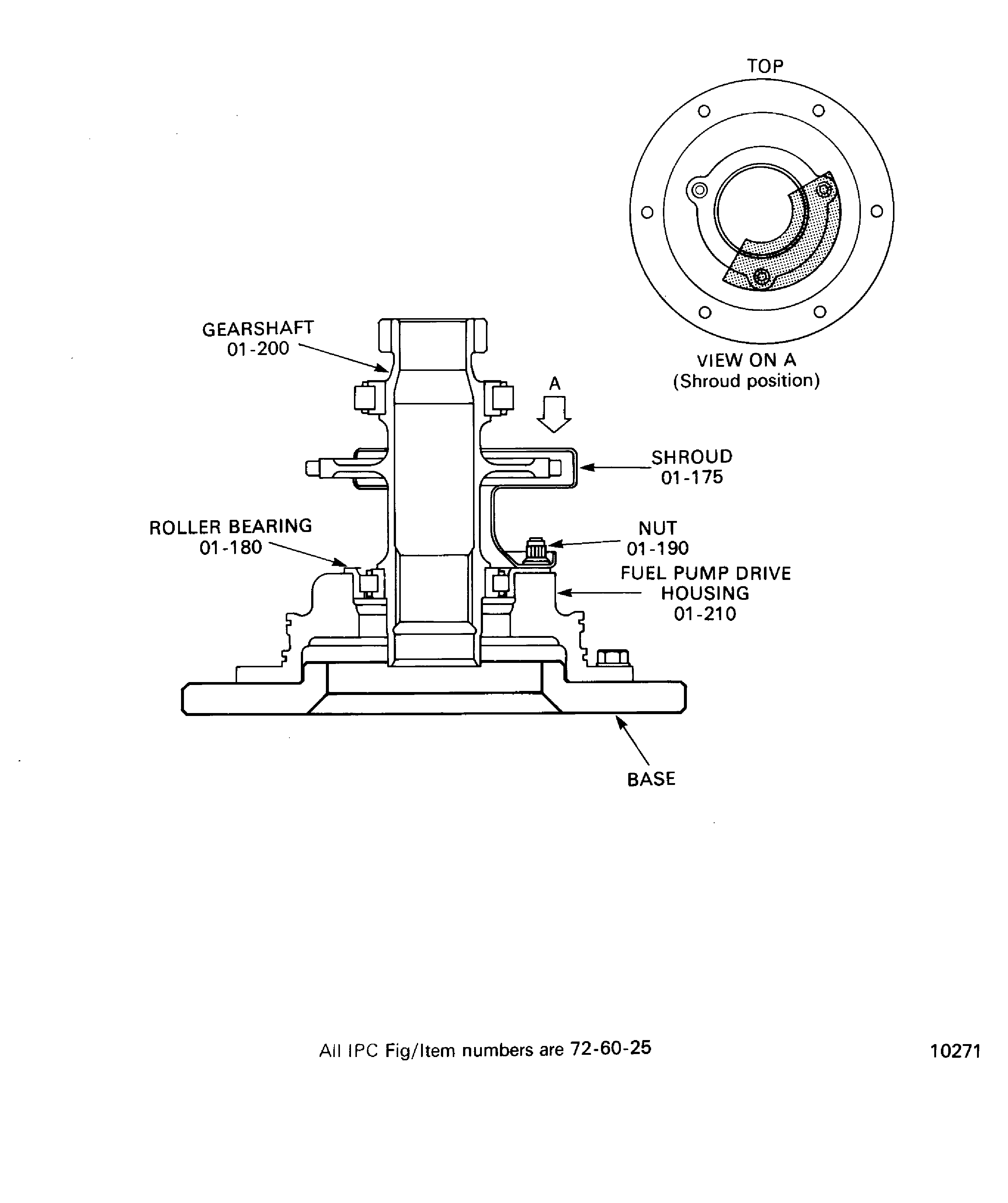

    Figure: Install the gearshaft on the fuel pump drive housing

    Install the gearshaft on the fuel pump drive housing

Requirements After Job Completion

Follow-On Conditions

NONE
