TASK 72-60-25-300-007 Fuel Pump Drive Gear Housing - Repair The Adapter Seat By Bushing, Repair-007 (VRS5052)

DMC:V2500-A0-72-60-2504-01A-664A-C|Issue No:004.00|Issue Date:2021-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-60-25-300-007 Fuel Pump Drive Gear Housing - Repair The Adapter Seat By Bushing, Repair-007 (VRS5052)

Effectivity

FIG/ITEM

PART NO.

01-210

4B0087

01-210

4B0351

01-210

4B0373

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

Housing

-

Aluminum alloy

Bushing

-

Wrought aluminum base alloy

General

NOTE

To identify the consumable materials refer to the PCI.

NOTE

Other consumable materials are given in the SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Arbor PressLOCALArbor press
FPI Inspection stationLOCALFPI Inspection station
FreezerLOCALFreezer
IAE 3F10343 Drift0AM53IAE 3F10343
Magnifying Glass, 5xLOCALMagnifying Glass, 5x
OvenLOCALOven
Vibrating Marking PencilLOCALVibrating Marking Pencil

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-001 SOLVENT, DELETEDX111XCoMat 01-001

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
BushingLOCAL4L0005

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-60-25-320-067 Machine the Adapter Seat of the Fuel Pump Drive Housing

    1. Refer to Figure.

      2. Machine the adapter seat.

      1. The diameter must be between 4.6835 in. to 4.6850 in. (118.960 mm to 119.000 mm) after the removal of the damage.

      2. FIR in relation to surface A and diameter B.

      3. Remove all damage and wear.

      4. Deleted.

      3. Blend sharp edges around the three drain holes.

      1. Refer to Figure.

    2. SUBTASK 72-60-25-220-071 Examine the Fuel Pump Drive Housing

      1. Inspect the housing for cracks, in the area of the adapter seat.

    3. SUBTASK 72-60-25-330-060 Apply the Chomate Conversion Coating

      1. Apply the chromate conversion coating to the machined surfaces.

      1. Refer to the SPM TASK 70-38-02-300-503.

    4. SUBTASK 72-60-25-350-069 Install the Bushing

    1. Refer to Figure.

    2. CAUTION

      MAKE SURE THAT THE LEAD IN CHAMFER OF THE BUSHING POINTS AWAY FROM THE DRIFT.

      Install the bushing on the IAE 3F10343 Drift.

      3. WARNING

        DO NOT TOUCH THE HOT PARTS WITHOUT PROTECTIVE GLOVES.
        HOT PARTS CAN CAUSE REDDENING AND BLISTERING OF THE SKIN, IF THE HANDS ARE NOT PROTECTED.
        IMMERSE THE CONTACTED AREA IN COLD WATER, FOR 10 MINUTES, IF THE SKIN IS BURNED. IMMEDIATELY GET MEDICAL ATTENTION IF PAIN OR BLISTERING PERSISTS.

        Increase the temperature of the housing and/or decrease the temperature of the assembled drift and bushing.

      1. NOTE

        The difference in temperature between the parts must be 216 deg F (120 deg C).
        Do not increase the temperature of the housing above 284 deg F (140 deg C). Do not decrease the temperature of the assembled drift and bushing below -58 deg F (-50 deg C).

        Use an Oven and/or a Freezer.

    4. Remove the housing from the oven and/or the assembled drift and bushing from the freezer.

      5. CAUTION

        INSTALL BUSHING IN MACHINED BORE IMMEDIATELY AFTER REMOVAL FROM FREEZER; OTHERWISE BUSHING CANNOT BE CORRECTLY INSTALLED.

        Install the bushing into machined adapter seat.

      1. Use IAE 3F10343 Drift 1 off and an arbor press.

      2. Give sufficient back-up support, at bushing bore area, to prevent housing distortion when you install the bushing.

    6. Allow the parts to reach ambient temperature.

    7. Remove drift.

    5. SUBTASK 72-60-25-320-068 Machine the Inner Diameter of the Bushing

    1. Refer to Figure.

      2. Machine the inner diameter of the bushing.

      1. The dimensions must be between 4.5280 in. to 4.5300 in. (115.011 mm to 115.062 mm).

      2. FIR in relation to surface A and diameter B.

      3. Chamfer where necessary.

      4. Deleted.

    6. SUBTASK 72-60-25-330-061 Apply the Chromate Conversion Coating

      1. Apply the chromate conversion coating to the machined surfaces of the bushing.

      1. Refer to the SPM TASK 70-38-02-300-503.

    7. SUBTASK 72-60-25-350-070 Record the Repair

      1. Vibro engrave VRS5052 adjacent to the part number.

      1. Remove the metal lifted by marking.

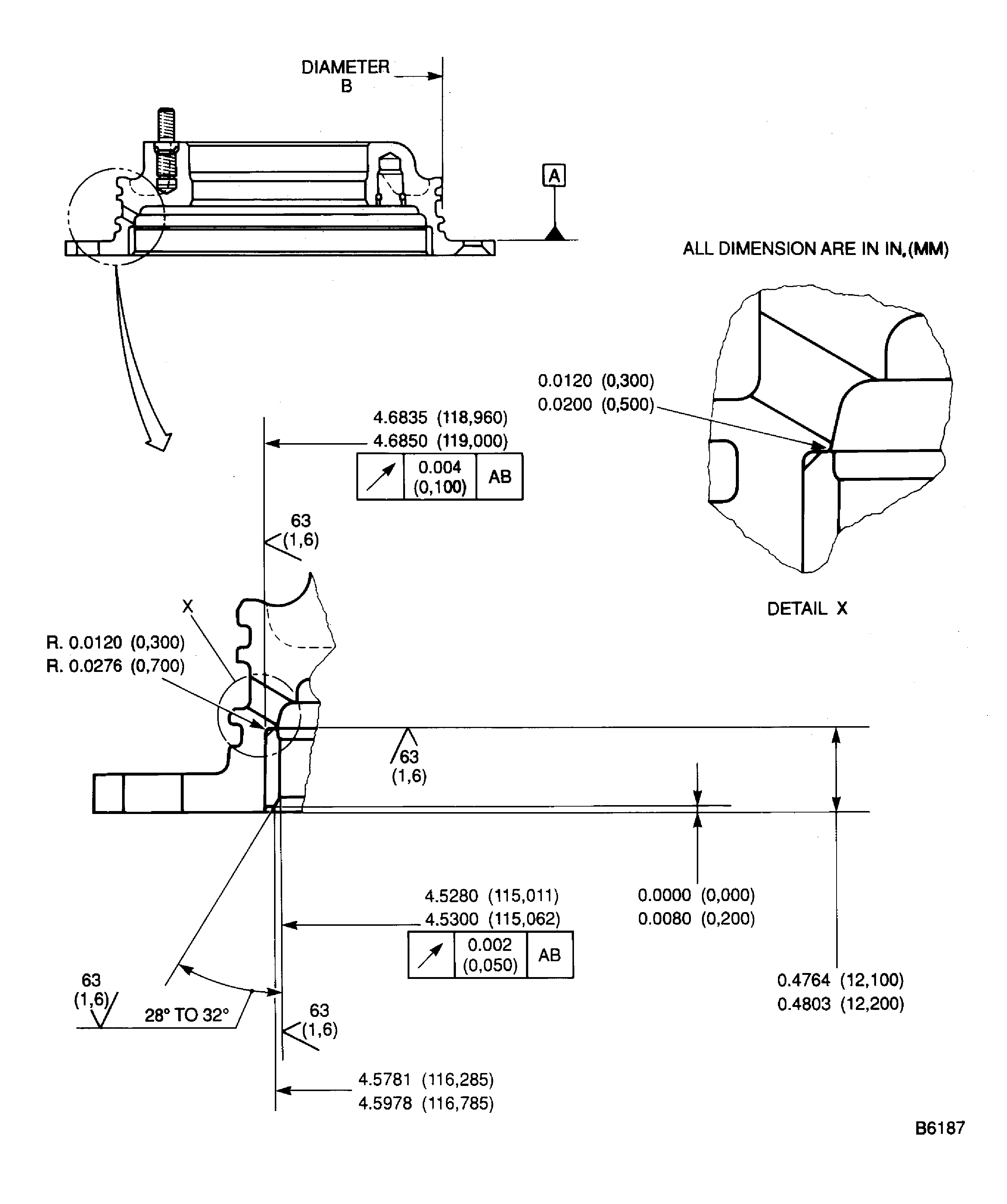

    8. Figure: Repair The Adapter Seat

    Repair The Adapter Seat

Requirements After Job Completion

Follow-On Conditions

NONE
