TASK 72-60-25-300-012 Fuel Pump Drive Gear Housing - Nickel Plate The Small Piloting Diameter, Repair-012 (VRS5057)

DMC:V2500-A0-72-60-2504-04A-647A-C|Issue No:003.00|Issue Date:2015-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-60-25-300-012 Fuel Pump Drive Gear Housing - Nickel Plate The Small Piloting Diameter, Repair-012 (VRS5057)

Effectivity

FIG/ITEM

PART NO.

01-210

4B0087

01-210

4B0351

01-210

4B0373

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

Housing

-

Aluminum alloy

General

NOTE

  1. To identify the consumable materials refer to PCI.

  2. Consumable materials are given in SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Workshop inspection equipmentLOCALWorkshop inspection equipment
Grinding machineLOCALGrinding machine
FPI inspection stationLOCALFPI inspection station
BasketLOCALBasket
Vapor degreaserLOCALVapor degreaser
Process Plating TanksLOCALProcess plating tanks
OvenLOCALOven
Magnifying glass, 4xLOCALMagnifying glass, 4x
Vibrating marking pencilLOCALVibrating marking pencil

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-067 STRIPPABLE COATING71410CoMat 02-067

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-60-25-320-073 Machine the Small Piloting Diameter of the Fuel Pump Drive Housing

    1. Refer to Figure.

      2. Machine the small piloting diameter.

      1. The preplating dimension must be between 5.0366 to 5.0311 in. (127.930 to 127.790 mm) after the removal of the damage.

      2. Remove all damage and wear.

      3. Keep the removal of material to the minimum necessary to remove the damage.

    2. SUBTASK 72-60-25-230-054 Examine the Housing

      1. Do the fluorescent penetrant inspection for cracks.

      1. Refer to the SPM TASK 70-23-01-230-501.

      2. No cracks are permitted.

    3. SUBTASK 72-60-25-330-066 Nickel Plate the Small Piloting Diameter of the Fuel Pump Drive Housing

    1. Refer to Figure.

      2. Mask the areas of the housing not to be plated.

      3. Do the nickel plating.

      1. Refer to the SPM TASK 70-33-08-300-503.

      2. Plate to a sufficient thickness to permit the machining to the last dimensions indicated in the reference figure.

      3. The plating out of the close area is permitted but must be removed.

    4. Remove the mask.

      5. Clean and dry the housing.

      1. Flush with cold water.

      2. Flush with hot water.

      3. Dry with air blast.

    4. SUBTASK 72-60-25-370-061 De-embrittle the Housing

      1. Put the housing into an oven at 266 to 302 deg F (130 to 150 deg C) for 12 hours.

      1. Do this process as soon as possible, in less than 4 hours, after the plating.

    5. SUBTASK 72-60-25-220-074 Examine the Housing

      1. Do the visual inspection of the plating for finish, cracks and adhesion.

      1. Plating must have a constant color.

      2. No circumferential cracks are permitted.

      3. No rough and blistering are permitted.

    6. SUBTASK 72-60-25-320-074 Machine the Small Piloting Diameter of the Fuel Pump Drive Housing

    1. Refer to Figure.

      2. Machine the small piloting diameter.

      1. The dimension must be between 5.0390 to 5.0378 in. (127.990 to 127.960 mm).

      2. FIR in relation to surface A and diameter B.

      3. Clean up the edge of groove and chamfer where necessary.

    7. SUBTASK 72-60-25-220-075 Examine the Nickel Plated Area

    1. Refer to Figure.

      2. Do the visual inspection of the plated area for cracks and adhesion.

      2. The natural network crack, emphasized by grinding, is permitted.

      3. Measure thickness of the plating.

      1. Do not accept a thickness of less than 0.0006 in. (0.015 mm), after the last machining.

    8. SUBTASK 72-60-25-350-075 Record the Repair

      1. Vibro engrave VRS 5057 adjacent to the part number.

      1. Remove the metal lifted by marking the number.

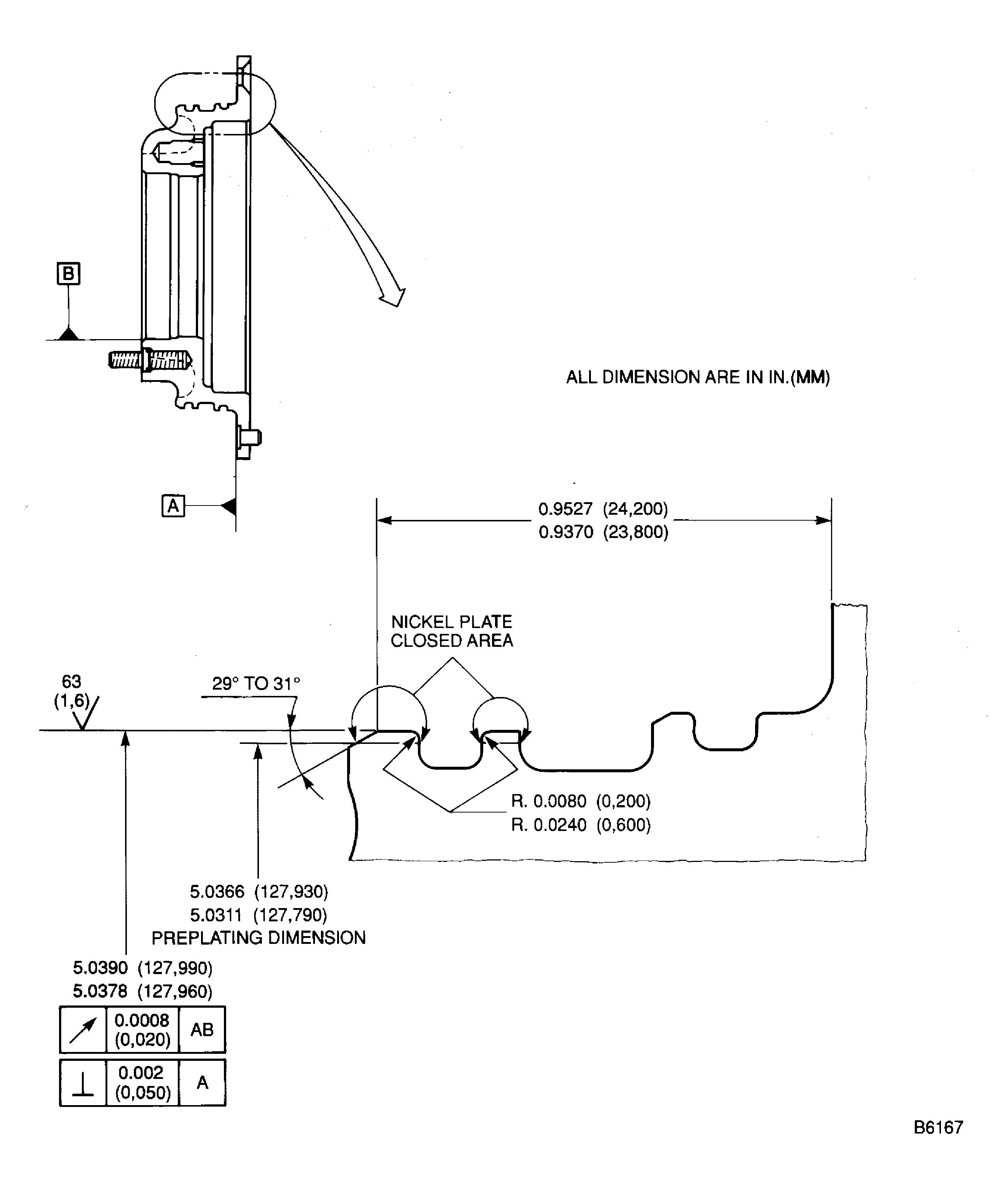

    9. Figure: Nickel plate the small piloting diameter of the fuel pump drive housing

    Nickel plate the small piloting diameter of the fuel pump drive housing

Requirements After Job Completion

Follow-On Conditions

NONE
