Common Information
TASK 72-60-26-040-001 Oil Scavenge Pump Drive Gear And Bearing Assembly - Disassemble The Gear And Bearing, Disassembly-001
General
Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.
Apply the approved CoMat 10-058 PENETRATING OIL before the removal of threaded parts and parts with an interference fit. Let the parts soak before removal.
Discard all rubber seal rings, cotter pins and seal washers removed in this procedure.
NOTE
NOTE
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Arbor Press | LOCAL | Arbor press | ||
| IAE 1F10200 Base | 0AM53 | IAE 1F10200 | 1 | |
| IAE 1F10234 Drift | 0AM53 | IAE 1F10234 | 1 | |
| IAE 1F10235 Drift | 0AM53 | IAE 1F10235 | 1 | |
| IAE 1F10243 Half ring | 0AM53 | IAE 1F10243 | 2 |
Consumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 10-058 PENETRATING OIL | 0AM53 | CoMat 10-058 |
Spares
NONESafety Requirements
NONEProcedure
Refer to Figure.
Put IAE 1F10243 Half ring 2 off around and below the inner race of the roller bearing adjacent to the external splined end of the gearshaft.
Install the half rings and the gearshaft on IAE 1F10200 Base 1 off with the external splined end to the top.
Install IAE 1F10235 Drift 1 off into the ID of the gearshaft. Push the drift until the gearshaft is fully removed from the inner race of the roller bearing. Use arbor press or equivalent.
Turn the gearshaft. Put the half rings (See Step) around and below the inner race of the remaining roller bearing.
Install IAE 1F10234 Drift 1 off into the ID of the gearshaft. Push the drift until the gearshaft is fully removed from the inner race of the roller bearing. Use the arbor press or equivalent.
SUBTASK 72-60-26-040-051 Remove the Two Inner Races of the Roller Bearings from the Gearshaft

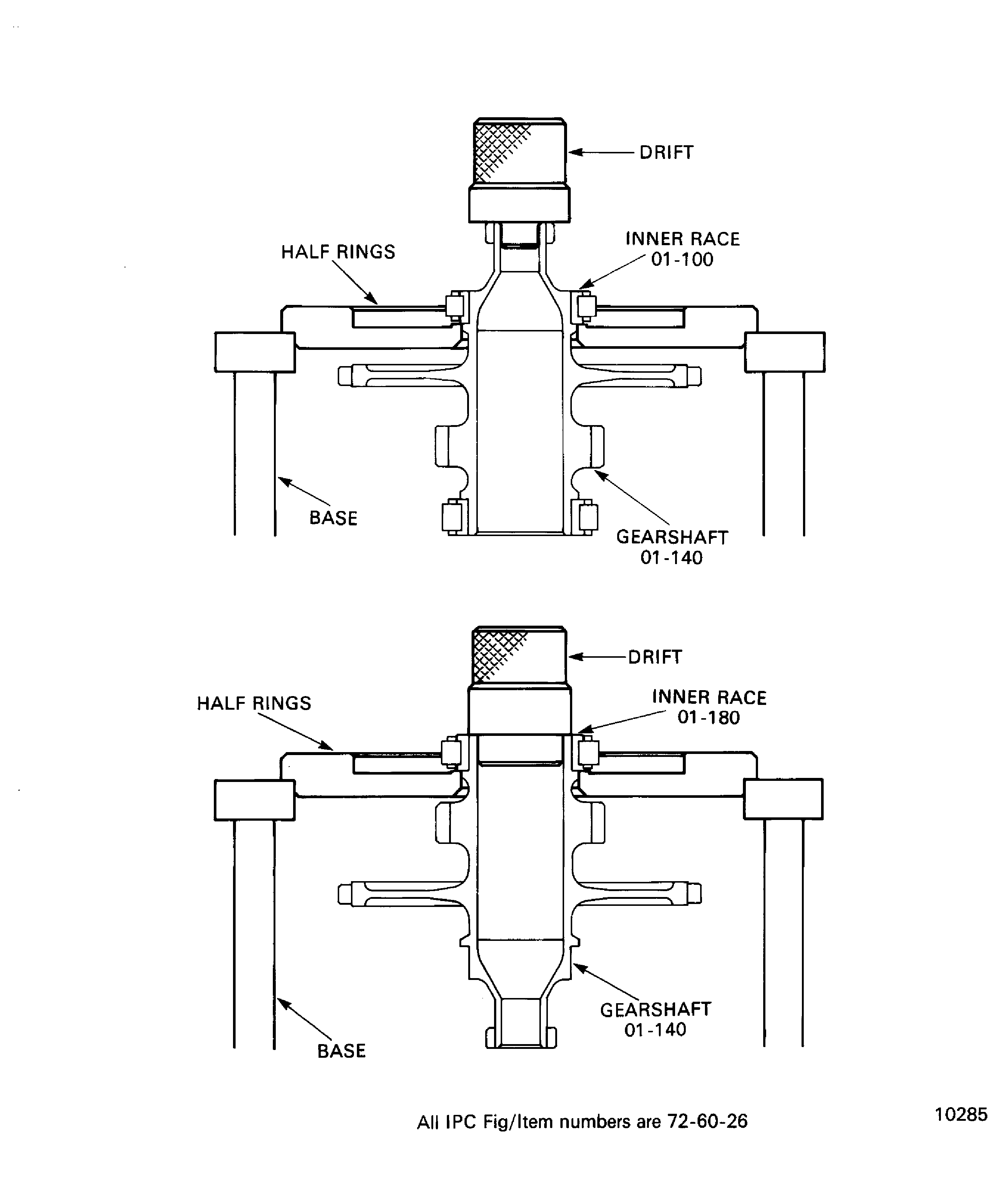

Figure: Remove the inner races of the roller bearings from the gearshaft
Remove the inner races of the roller bearings from the gearshaft
