TASK 72-60-28-300-017 Generator Drive Gear Housing - Blend Repair, Repair-017 (VRS5058)
Effectivity
FIG/ITEM PART No. | |
|---|---|
01-450 | 4B0161 |
01-450 | 4B0271 |
01-450 | 4B0281 |
01-450 | 4B0312 |
01-450 | 4B0348 |
01-450 | 4B0370 |
General
Price and availability - none
NOTE
To identify the consumable materials refer to the PCI.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 02-140 TRIANGULAR INDIA STONE, FINE GRIT | LOCAL | CoMat 02-140 |
Spares
NONESafety Requirements
NONEProcedure
Refer to Figure.
SUBTASK 72-60-28-350-053 Repair the IDG Housing (01-450) Rough Surfaces at Location 1
Refer to Figure.
Refer to the TASK 70-35-03-300-501.
Use CoMat 02-140 TRIANGULAR INDIA STONE, FINE GRIT triangular india stone.
Hand polish and blend. The depth of the blending is not more than 0.005 in. (0.13 mm).
Seal surfaces at location 3.
SUBTASK 72-60-28-350-054 Repair the IDG Housing (01-450) Machined Surfaces

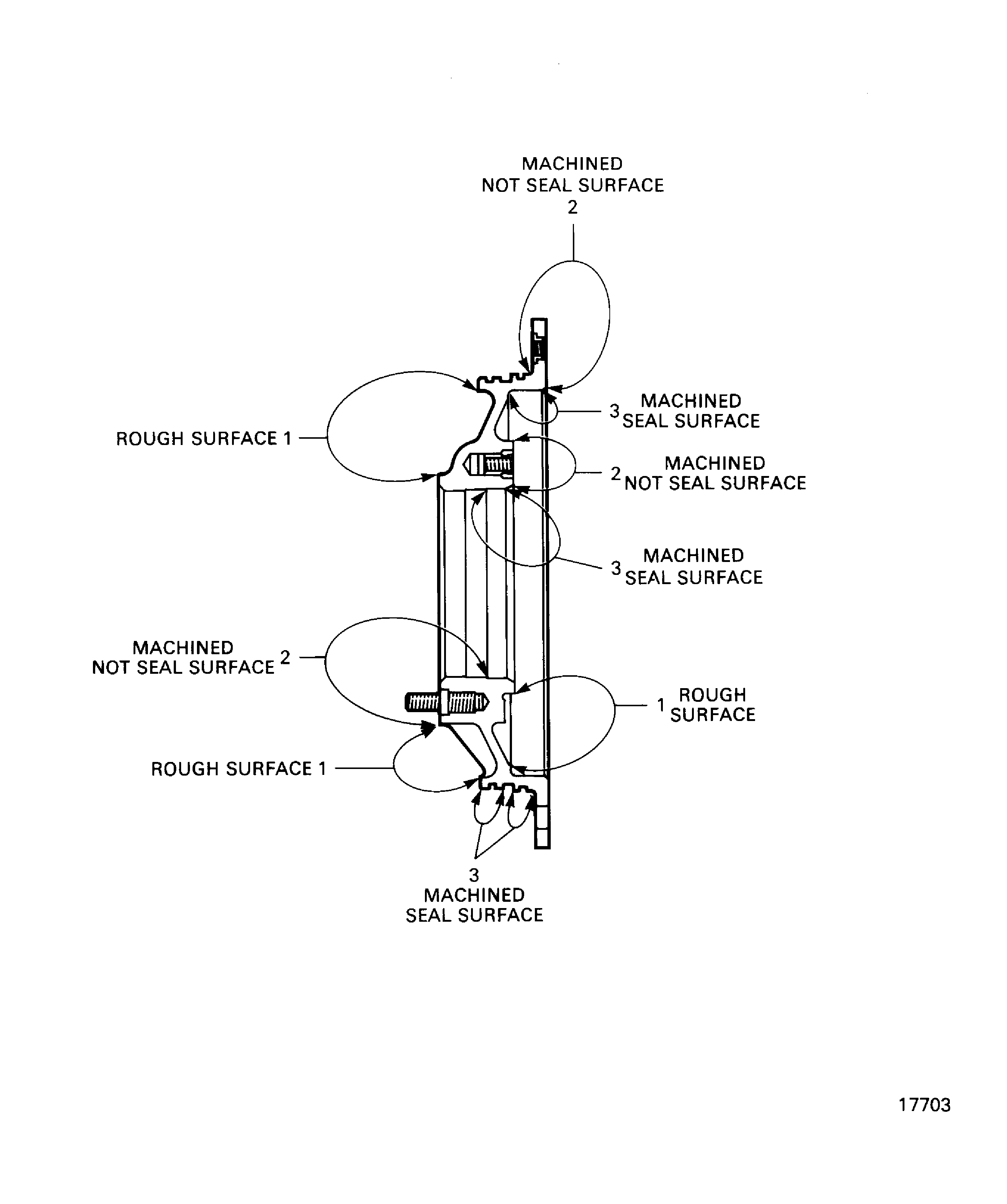

Figure: Repair Details and Dimensions
Repair Details and Dimensions
