TASK 72-60-28-300-009 Generator Drive Gear Housing - Repair The Generator Seat By Bushing, Repair-009 (VRS5064)

DMC:V2500-A0-72-60-2804-00A-664A-C|Issue No:003.00|Issue Date:2021-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-60-28-300-009 Generator Drive Gear Housing - Repair The Generator Seat By Bushing, Repair-009 (VRS5064)

Effectivity

FIG/ITEM PART No.

01-450

4B0161

01-450

4B0271

01-450

4B0281

01-450

4B0312

01-450

4B0348

01-450

4B0370

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

Housing

-

A357 T613 (AMS 4219)

Bushing

-

Wrought aluminum base alloy

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

NOTE

  1. To identify the consumable materials refer to the PCI.

  2. Other consumable materials are given in the SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
FPI Inspection stationLOCALFPI Inspection station
IAE 3F10346 Drift0AM53IAE 3F103461
Magnifying Glass, 5xLOCALMagnifying Glass, 5x
OvenLOCALOven
Process Plating TanksLOCALProcess plating tanks
Vibroengraving equipmentLOCALVibroengraving equipment

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-001 SOLVENT, DELETEDX111XCoMat 01-001

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
BushingLOCAL4L0014

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-60-28-320-087 Machine the IDG Seat of the IDG Housing

    1. Refer to Figure.

      2. Machine the IDG seat.

      1. The diameter must be between 6.732 in. to 6.734 in. (171.00 mm to 171.04 mm) after the removal of the damage.

      2. Remove all damage and wear.

      3. Keep the removal of material to the minimum necessary to remove the damage.

      4. Deleted.

    2. SUBTASK 72-60-28-220-110 Examine the IDG Housing

      1. Inspect the housing for cracks in the area of the seat.

      1. Use a 5x magnifying glass.

    3. SUBTASK 72-60-28-330-072 Apply the Chromate Conversion Coating

      1. Apply the chromate conversion coating to the machined surfaces.

      1. Refer to the SPM TASK 70-38-02-300-503.

    4. SUBTASK 72-60-28-350-086 Install the Bushing

    1. CAUTION

      MAKE SURE THAT THE LEAD IN CHAMFER OF THE BUSHING POINTS IS AWAY FROM THE DRIFT.

      Refer to Figure.

    2. Install the bushing on the IAE 3F10346 Drift.

      3. WARNING

        DO NOT TOUCH THE HOT PARTS WITHOUT PROTECTIVE GLOVES.
        HOT PARTS CAN CAUSE REDDENING AND BLISTERING OF THE SKIN IF THE HANDS ARE NOT PROTECTED.
        IMMERSE THE CONTACTED AREA IN COLD WATER FOR 10 MINUTES IF THE SKIN IS BURNED. IMMEDIATELY GET MEDICAL ATTENTION IF PAIN OR BLISTERING PERSISTS.

        Increase the temperature of the housing and/or decrease the temperature of the assembled drift and bushing.

      1. Use an oven and/or a freezer.

      2. Do not increase the temperature of the housing above 284 deg F (140 deg C).

      3. Do not decrease the temperature of the assembled drift and bushing below -58 deg F (-50 deg C).

        NOTE

        The difference in temperature between the parts must be 216 deg F (120 deg C).

    4. Remove the housing from the oven and/or the assembled drift and bushing from the freezer.

      5. CAUTION

        INSTALL BUSHING IN MACHINED BORE IMMEDIATELY AFTER REMOVAL FROM FREEZER, OTHERWISE BUSHING CANNOT BE CORRECTLY INSTALLED.

        Install the bushing into machined seat.

      1. Use IAE 3F10346 Drift 1 off and an arbor press.

      2. Give sufficient back-up support at bushing bore area to prevent housing distortion when you install the bushing.

    6. Allow the parts to reach ambient temperature.

    7. Remove the drift.

    5. SUBTASK 72-60-28-320-088 Machine the Inner Diameter of the Bushing

    1. Refer to Figure.

      2. Machine the inner diameter of the bushing.

      1. The dimensions must be 6.604 in. to 6.606 in. (167.74 mm to 167.79 mm).

      2. Chamfer where necessary.

      3. Deleted.

    6. SUBTASK 72-60-28-330-073 Apply the Chromate Conversion Coating

      1. Apply the chromate conversion coating to the machined surfaces of the bushing.

      1. Refer to the SPM TASK 70-38-02-300-503.

    7. SUBTASK 72-60-28-350-087 Record the Repair

      1. Vibro engrave VRS5064 adjacent to the part number.

      1. Remove the metal lifted by marking.

      2. Use vibrating marking pencil.

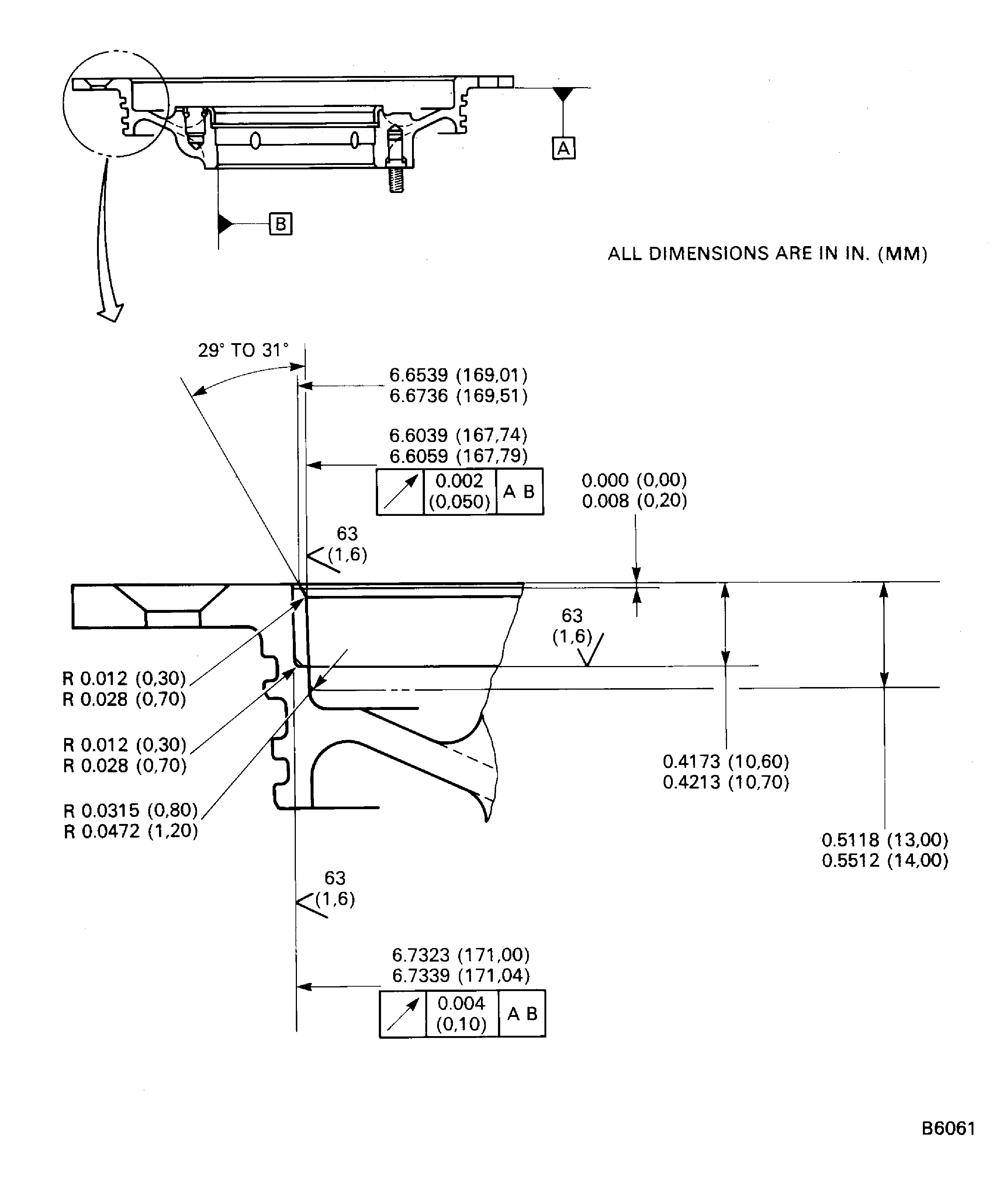

    8. Figure: Repair Details And Dimensions

    Repair Details And Dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Deleted grinding machine from support equipment and procedural steps. (19VF825)
