TASK 72-60-29-300-012 Deoiler Housing Assembly - Repair The Bearing Mating Surface By Flanged Bushing, Repair-012 (VRS5087)

DMC:V2500-A0-72-60-2904-01A-664A-C|Issue No:004.00|Issue Date:2021-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-60-29-300-012 Deoiler Housing Assembly - Repair The Bearing Mating Surface By Flanged Bushing, Repair-012 (VRS5087)

Effectivity

FIG/ITEM

PART NO.

4B0088

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

Housing

-

A357 T613 (AMS 4219)

Flanged bushing

-

Wrought aluminum base alloy

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPP.

NOTE

To identify the consumable materials refer to the PCI.

NOTE

Other consumable materials are given in the SPM

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
FPI Inspection stationLOCALFPI Inspection station
IAE 3F10339 Drift0AM53IAE 3F103391
IAE 3F10428 Guide pin0AM53IAE 3F104281
Magnifying Glass, 5xLOCALMagnifying Glass, 5x
OvenLOCALOven
Process Plating TanksLOCALProcess plating tanks
Vibrating Marking PencilLOCALVibrating Marking Pencil

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-001 SOLVENT, DELETEDX111XCoMat 01-001

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Flanged bushingLOCAL4L0019

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-60-29-350-079 Remove the Studs

    1. Refer to Figure.

      2. Remove the studs and the lock rings.

      1. Refer to Repair VRS5079, TASK 72-60-29-300-004.

    2. SUBTASK 72-60-29-320-078 Machine the Bearing Seat in the Deoiler Housing

    1. Refer to Figure.

      2. Machine the adapter seat.

      1. The diameter must be 3.5024 in. to 3.5039 in. (88.960 mm to 89.000 mm), after the removal of the damage.

      3. Blend the drain holes if necessary.

      1. Blend the sharp edges around the four drain holes.

    3. SUBTASK 72-60-29-320-079 Machine the Bearing Mating Surface in the Deoiler Housing

    1. Refer to Figure.

      2. Machine the adapter mating surface.

      1. The dimension must be 0.7697 in. to 0.7657 in. (19.550 mm to 19.450 mm) in relation to surface A, after the removal of the damage.

      2. Deleted.

    4. SUBTASK 72-60-29-220-100 Examine the Deoiler Housing

      1. Inspect the housing for cracks in the area of the bore.

      1. Use a 5x magnifying glass.

    5. SUBTASK 72-60-29-330-066 Apply the Chromate Conversion Coating

      1. Apply the chromate conversion coating to the machined surfaces.

      1. Refer to the SPM TASK 70-38-02-300-503.

    6. SUBTASK 72-60-29-350-080 Install the Bushing

    1. Refer to Figure.

      2. Install the guide pin.

      1. Put IAE 3F10428 Guide pin in threaded hole, on bearing mating surface, adjacent to machine seat.

    3. Install the bushing on the IAE 3F10339 Drift 1 off.

      4. WARNING

        DO NOT TOUCH THE HOT PARTS WITHOUT PROTECTIVE GLOVES.
        HOT PARTS CAN CAUSE REDDENING AND BLISTERING OF THE SKIN IF THE HANDS ARE NOT PROTECTED.
        IMMERSE THE CONTACTED AREA IN COLD WATER FOR 10 MINUTES IF THE SKIN IS BURNED. IMMEDIATELY GET MEDICAL ATTENTION IF PAIN OR BLISTERING PERSISTS.

        Increase the temperature of the housing and/or decrease the temperature of the assembled drift and bushing.

      1. Use an oven and/or a freezer.

      2. Do not increase the temperature of the housing above 284 deg F (140 deg C).

      3. Do not decrease the temperature of the assembled drift and bushing below -58 deg F (-50 deg C).

    5. NOTE

      The difference in temperature between the parts must be 216 deg F (120 deg C).

      Remove the housing from the oven and/or the assembled drift and bushing from the freezer.

      6. CAUTION

        INSTALL BUSHING IN MACHINED SEAT IMMEDIATELY AFTER REMOVAL FROM FREEZER, OTHERWISE BUSHING CANNOT BE CORRECTLY INSTALLED.

        Install the bushing into machined seat.

      1. Use IAE 3F10339 Drift and an arbor press. Give sufficient back-up support at bushing seat area, to prevent housing distortion, when you install the bushing.

    7. Allow the parts to reach ambient temperature.

    8. Remove the drift and the guide pin.

    7. SUBTASK 72-60-29-320-080 Machine the Inner Diameter of the Bushing

    1. Refer to Figure.

      2. Machine the inner diameter of the bushing.

      1. The dimension must be 3.3457 in. to 34.3466 in. (84.982 mm to 85.004 mm). Chamfer where necessary.

    8. SUBTASK 72-60-29-320-081 Machine the Flange Surface of the Bushing

    1. Refer to Figure.

      2. Machine the flange surface.

      1. The dimension must be 0.8287 in. to 0.8248 in. (21.050 mm to 20.950 mm) in relation to Surface A.

    9. SUBTASK 72-60-29-330-067 Apply the Chromate Conversion Coating

      1. Apply the chromate conversion coating to the machined surfaces of the bushing.

      1. Refer to the SPM TASK 70-38-02-300-503.

    10. SUBTASK 72-60-29-350-081 Install the New Studs

    1. Refer to Figure.

      2. Install the new studs and the new lock rings.

      1. Refer to Repair VRS5079, TASK 72-60-29-300-004.

    11. SUBTASK 72-60-29-350-082 Record the Repair

      1. Vibro-engrave VRS5087 adjacent to part number.

      1. Remove the metal lifted by marking.

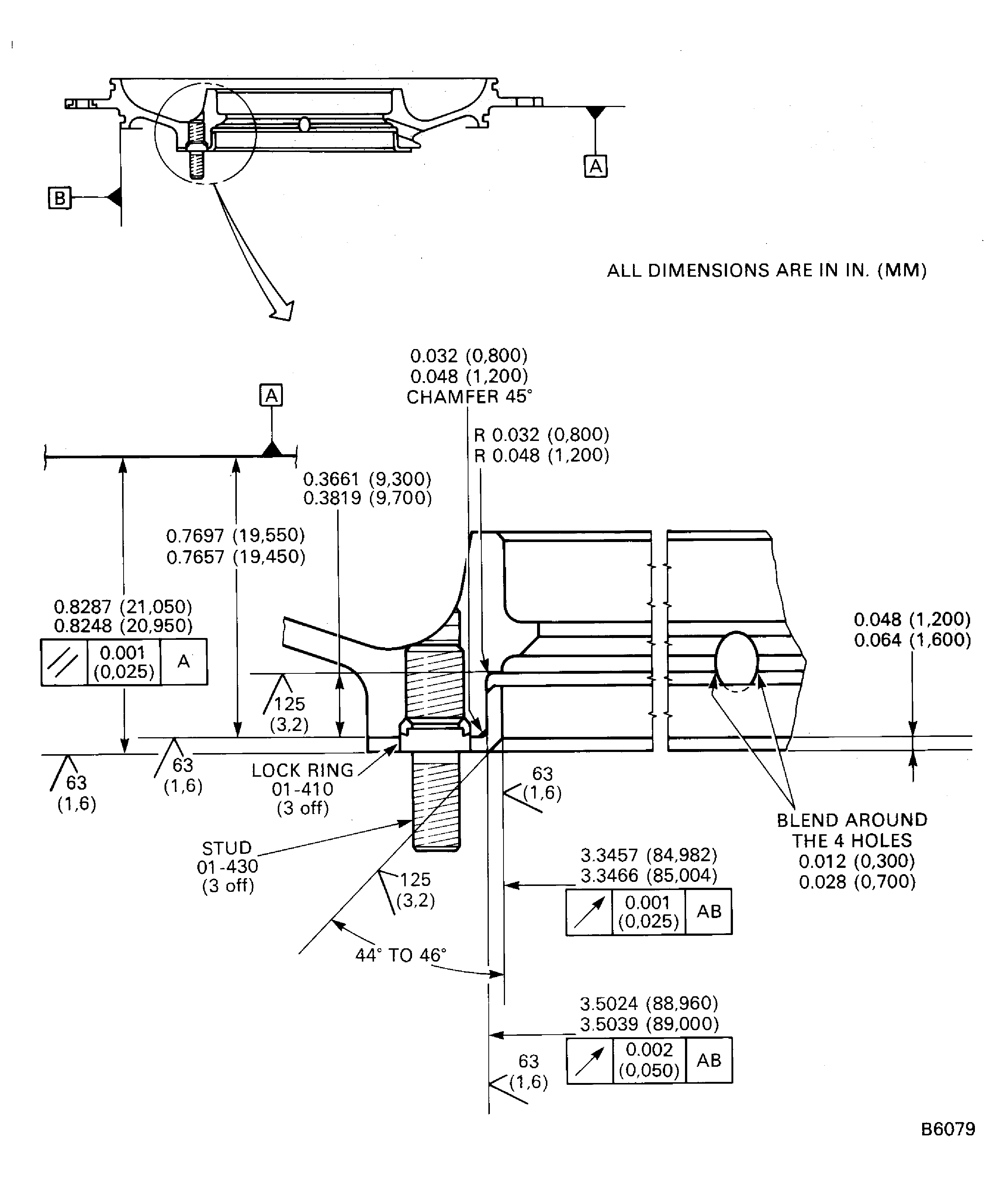

    12. Figure: Repair Details And Dimensions
