TASK 72-60-29-300-005 Deoiler Housing Assembly - Replace The Damaged Inserts, Repair-005 (VRS5080)

DMC:V2500-A0-72-60-2904-01A-920A-C|Issue No:002.00|Issue Date:2016-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-60-29-300-005 Deoiler Housing Assembly - Replace The Damaged Inserts, Repair-005 (VRS5080)

Effectivity

FIG/ITEM

PART NO.

01-390

4B0088

01-390

4B0315

01-390

4B0347

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

Housing

-

A357 T613 (AMS 4219)

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Workshop inspection equipmentLOCALWorkshop inspection equipment
Hot air gunLOCALHot air gun

Consumables, Materials and Expendables

NONE

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
INSERT0AM534P00403

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-60-29-350-067 Remove the Inserts

    1. Refer to Figure.

      2. Heat the housing adjacent to the insert.

      1. Use the Hot air gun.

      3. Drift out the insert from the housing.

      1. Use a suitable drift.

    2. SUBTASK 72-60-29-350-068 Install the New Inserts

    1. Refer to Figure.

    2. Verify that the tight fit exists between the outer diameter of the new insert and the corresponding hole in housing.

      3. Heat the housing adjacent to hole.

      1. Use the Hot air gun.

    4. Drift in the new insert.

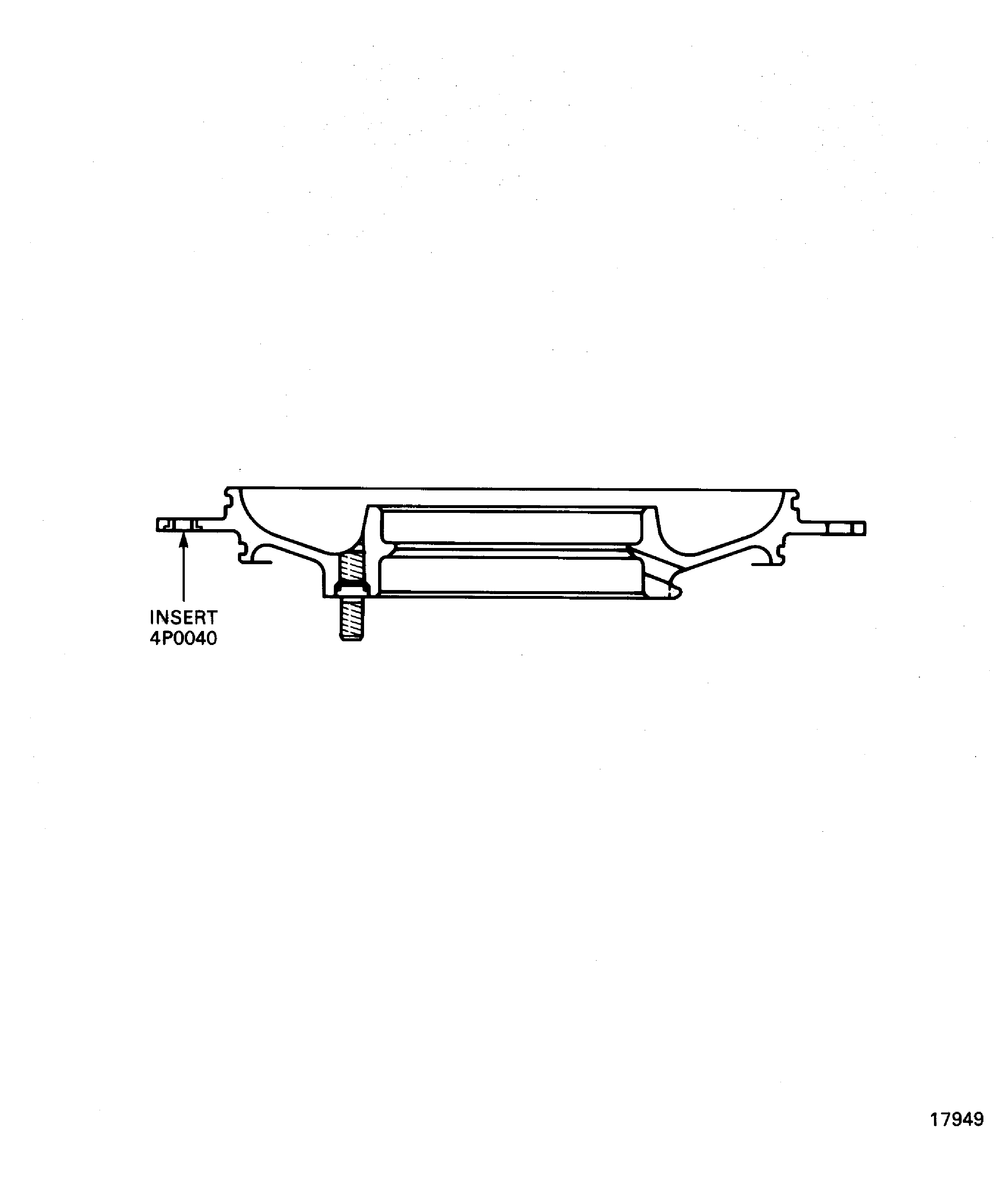

    3. Figure: Repair Details and Dimensions

    Repair Details and Dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Revised the effectivity table to add part number 4B0347. (11VF849A)
