TASK 72-60-29-300-038 Deoiler Nut - Blend Repair, Repair-038 (VRS5665)
General
Price and availability - none
The practices and processes referred to in the procedure by the TASK number are in the SPM.
NOTE
To identify the consumable materials refer to the PCI.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 02-140 TRIANGULAR INDIA STONE, FINE GRIT | LOCAL | CoMat 02-140 |
Spares
NONESafety Requirements
NONEProcedure
Refer to Figure.
Refer to the SPM TASK 70-35-03-300-501.
Hand polish and blend. The maximum depth of the blending is 0.010 in. (0.25 mm).
SUBTASK 72-60-29-320-082 Repair the Nut (01-170) Washer Face, Location 1
Refer to Figure.
Refer to the SPM TASK 70-35-03-300-501 .
Hand polish and blend. The maximum depth of the blending is 0.010 in. (0.25 mm).
SUBTASK 72-60-29-320-083 Repair the Nut (01-170) Wrenching Slot, Location 2

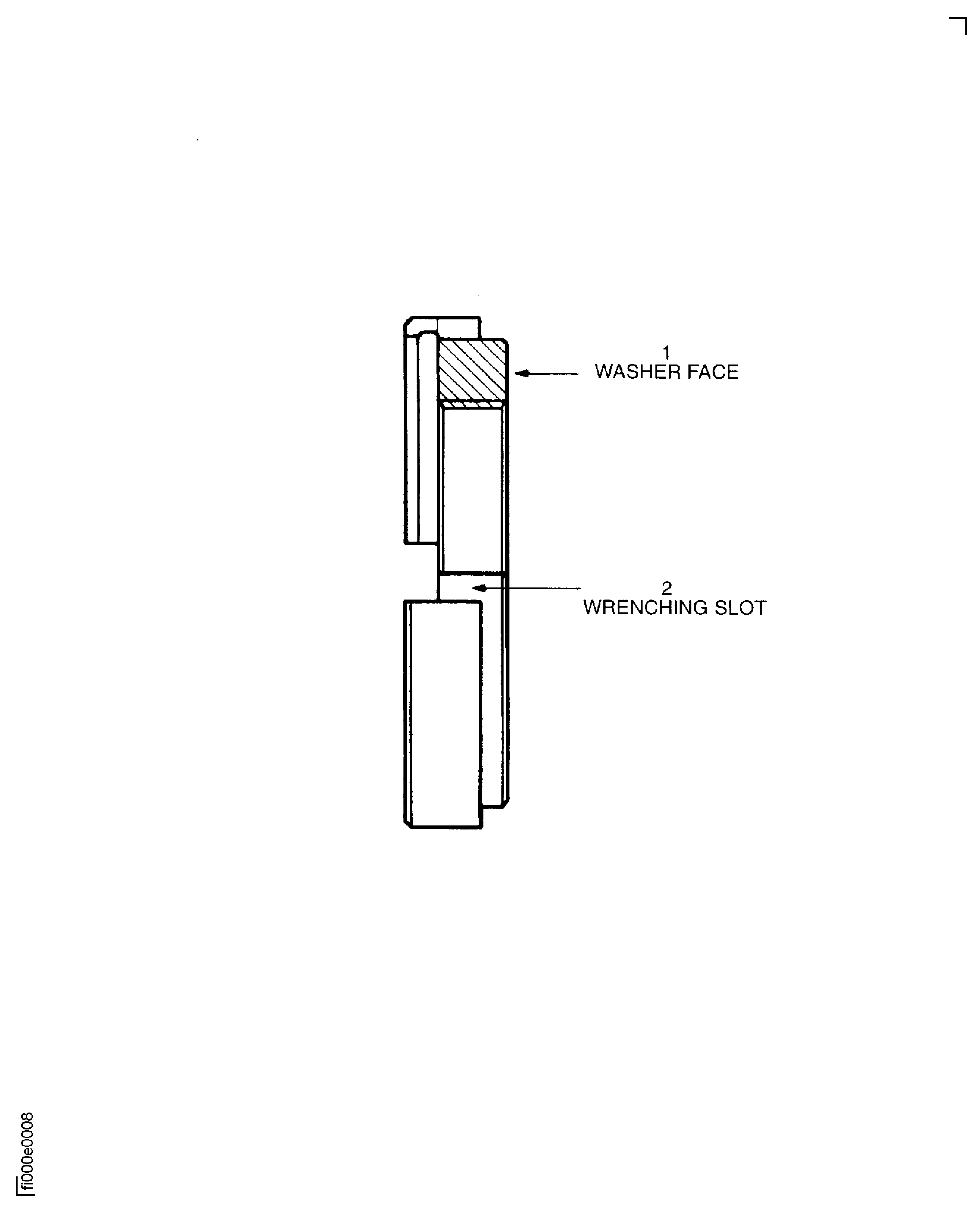

Figure: Locations - Nut
Locations - Nut
