TASK 72-60-31-040-001 Deoiler Case Assembly - Disassemble The Deoiler Case, Disassembly-001

DMC:V2500-A0-72-60-3100-00A-530A-B|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-60-31-040-001 Deoiler Case Assembly - Disassemble The Deoiler Case, Disassembly-001

General

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

Apply the approved CoMat 10-058 PENETRATING OIL before the removal of the threaded parts and parts with an interference fit. Let the parts soak before removal.

Discard all rubber seal rings, cotter pins and seal washers removed in this procedure.

NOTE

To identify the consumable materials refer to the PCI.

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Swivel viseLOCALSwivel vise
IAE 1F10068 Pusher0AM53IAE 1F100681
IAE 1F10228 Base0AM53IAE 1F102281

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 10-058 PENETRATING OIL0AM53CoMat 10-058

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-60-31-040-051 Remove the Strainer and the Plug from the Deoiler Case

    1. Refer to Figure.

    2. Install IAE 1F10228 Base 1 off on swivel vise.

    3. Install the deoiler case on the base. Attach with the socket head capscrews.

    4. Remove the lockwire from the plug. Remove the plug from the seat on the deoiler case. Discard the packing.

    5. Turn the base until the strainer is to the top.

    6. Remove the strainer from the seat on the deoiler case.

    7. Remove the deoiler case from the base.

    2. SUBTASK 72-60-31-040-052 Remove the Carbon Seal from the Seal Housing

    1. Refer to Figure.

    2. Install the seal housing on the base of IAE 1F10068 Pusher 1 off with the carbon face to the bottom.

    3. Install the pusher on the carbon seal.

    4. Push the pusher until the carbon seal is fully removed from the seal housing.

    5. Remove the pusher from the seal housing and remove the seal housing from the base.

    3. Figure: Remove the strainer and the plug from the deoiler case

    Remove the strainer and the plug from the deoiler case

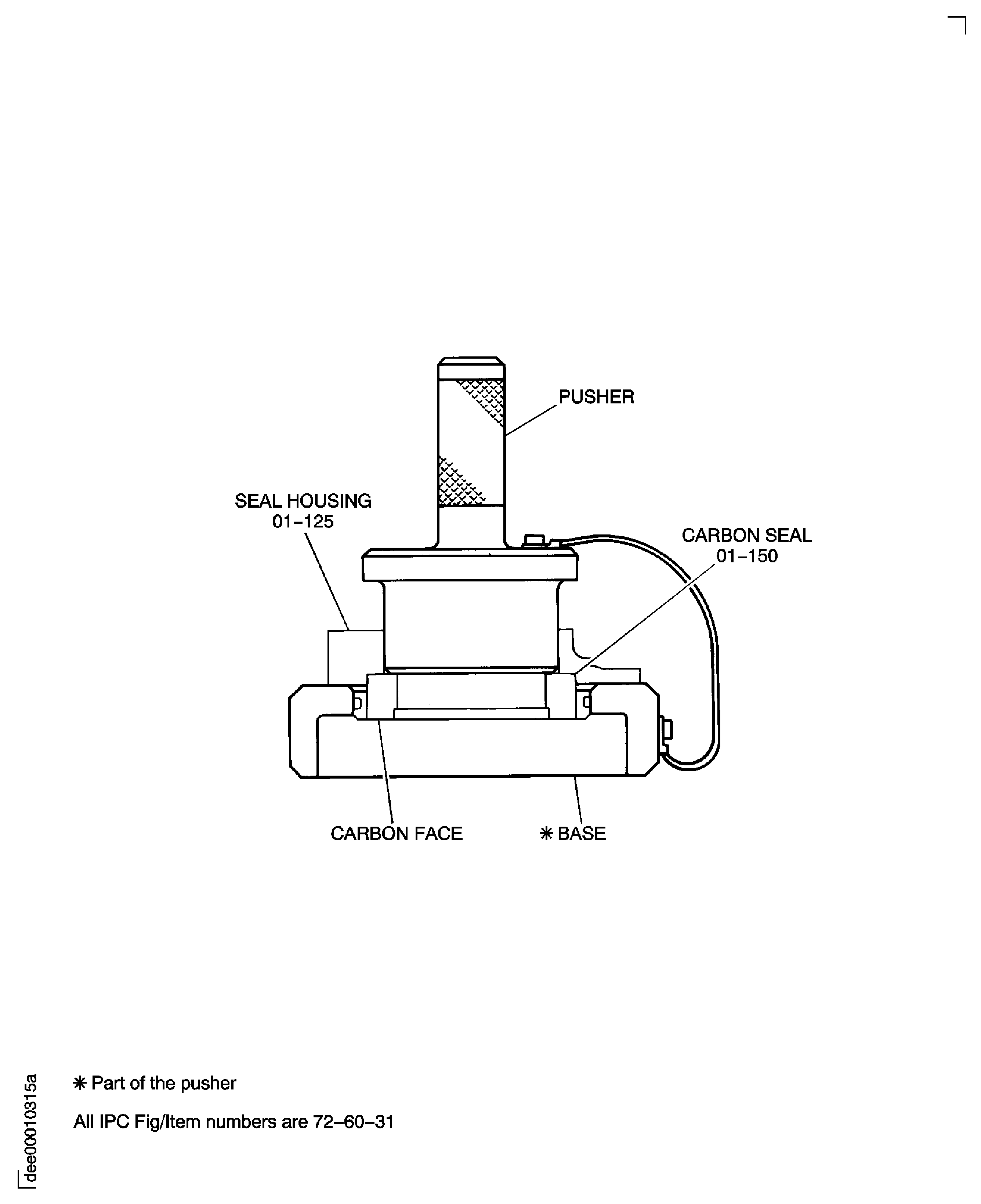

    Figure: Remove the Carbon Seal from the Seal Housing

    Remove the Carbon Seal from the Seal Housing

Requirements After Job Completion

Follow-On Conditions

NONE
