TASK 72-60-31-300-001 Deoiler Casing - Blend Repair, Repair-001 (VRS5432)

DMC:V2500-A0-72-60-3104-00A-649A-C|Issue No:002.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-60-31-300-001 Deoiler Casing - Blend Repair, Repair-001 (VRS5432)

Effectivity

FIG/ITEM

PART NO.

01-170

4B7153

01-170

4B7262

01-170

4B7361

Material of component

PART IDENT

SYMBOL

MATERIAL

Deolier casing

-

A357T61

AMS4219

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK number are in the SPP.

NOTE

To identify the consumable materials, refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-140 TRIANGULAR INDIA STONE, FINE GRITLOCALCoMat 02-140

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-60-31-350-057 Repair the Rough Surfaces at Location 1

    1. Refer to Figure.

      2. Hand polish and blend. The maximum depth of the blending is 0.037 in. (0.94 mm).

      1. Refer to the SPM TASK 70-35-03-300-501.

      3. Repair the surface protection.

      1. Refer to Repair, VRS5433 TASK 72-60-31-300-002 (REPAIR-002).

    2. SUBTASK 72-60-31-350-058 Repair the Machined Surfaces

    1. Refer to Figure.

    2. Seal surfaces - Location 2.

      3. Hand polish and blend. The maximum depth of blending is 0.005 in. (0.13 mm).

      1. Refer to the SPM TASK 70-35-03-300-501.

    4. Not seal surfaces - Location 3.

      5. Hand polish and blend. The maximum depth of blending is 0.01 in. (0.25 mm).

      1. Refer to the SPM TASK 70-35-03-300-501.

      6. Repair the surface protection.

      1. Refer to Repair, VRS5433, TASK 72-60-31-300-002 (REPAIR-002).

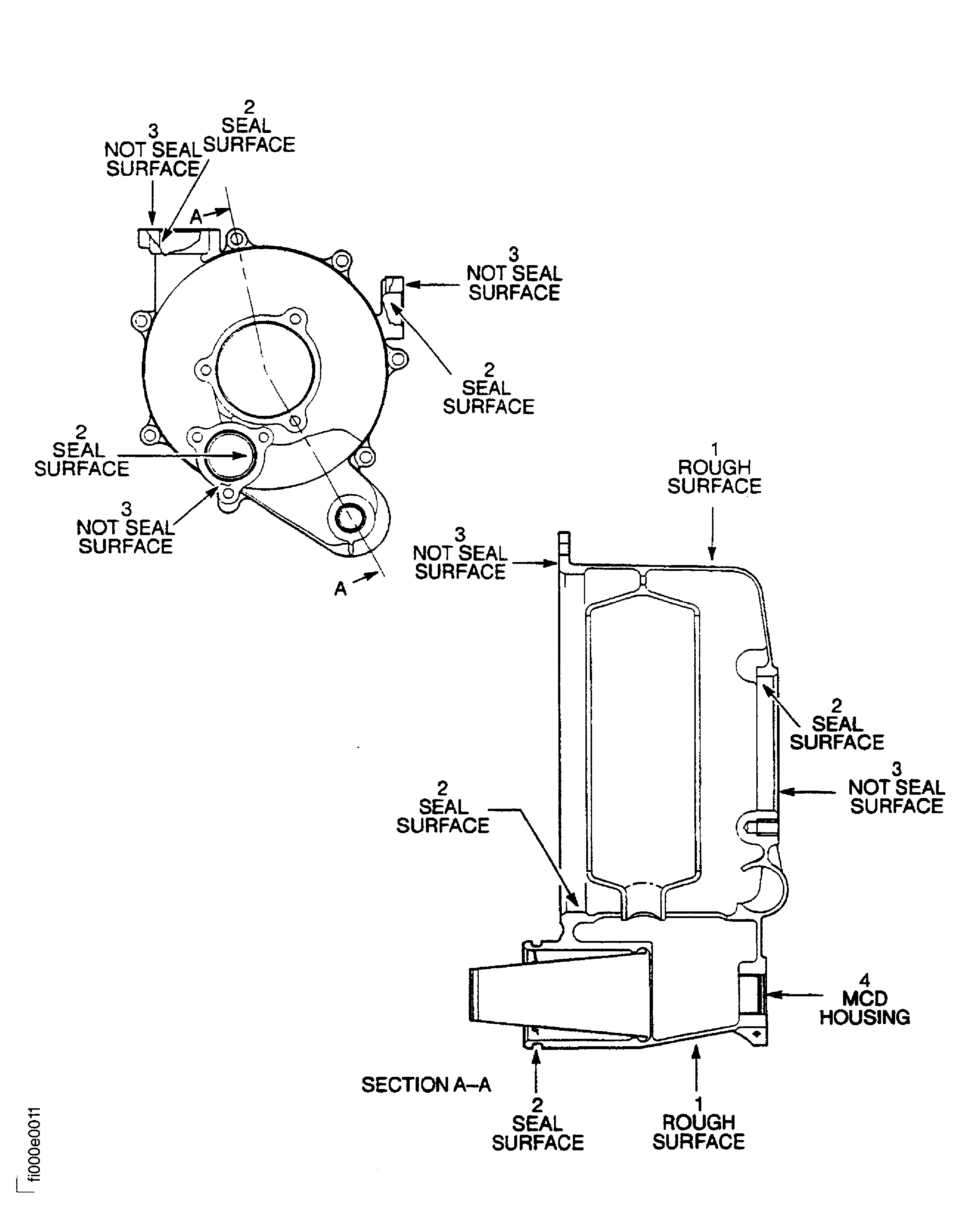

    3. Figure: Repair details and dimensions

    Repair details and dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
