TASK 72-60-32-300-001 Angle Gearbox Support - Blend Repair, Repair-001 (VRS5110)
General
Price and availability - none
The practices and processes referred to in the procedure by the TASK numbers are in the SPM.
NOTE
To identify the consumable materials refer to the PCI.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 02-140 TRIANGULAR INDIA STONE, FINE GRIT | LOCAL | CoMat 02-140 |
Spares
NONESafety Requirements
NONEProcedure
Refer to Figure.
Refer to Repair, VRS5111 TASK 72-60-32-300-002.
Repair the surface protection.
SUBTASK 72-60-32-350-051 Repair the Rough Surfaces - Location 1
Refer to Figure.
Refer to TASK 70-35-03-300-501 .
Hand polish and blend. The maximum depth of the blending is 0.005 in. (0.13 mm).
Refer to TASK 70-35-03-300-501.
Hand polish and blend. The maximum depth of the blending is 0.01 in. (0.25 mm).
Not seal surfaces - location 3.
SUBTASK 72-60-32-350-052 Repair the Machined Surfaces

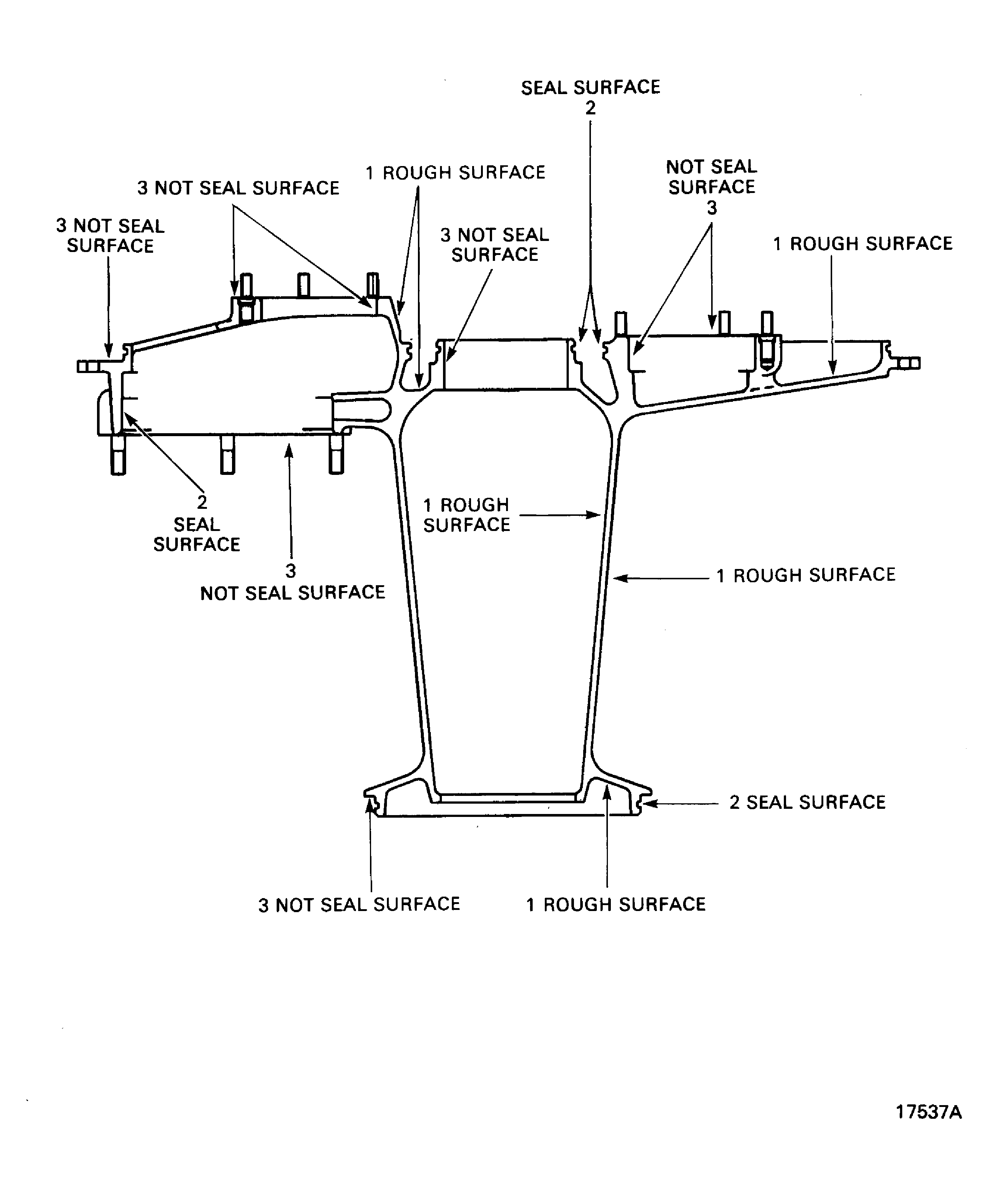

Figure: Repair details and dimensions
Repair details and dimensions
