DMC:V2500-A0-72-60-3201-03A-920A-CIssue No:001.00Issue Date:2013-11-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
Common Information
TASK 72-60-32-300-012 Angle Gearbox Support - Replace The Damaged Inserts, Repair-012 (VRS5045)
General
Price and availability - none
The practices and processes referred to in the procedure by the TASK numbers are in the SPM.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Workshop inspection equipment | LOCAL | Workshop inspection equipment | ||
| Hot air gun | LOCAL | Hot air gun |
Consumables, Materials and Expendables
NONESafety Requirements
NONEProcedure
Refer to Figure.
Use the Hot air gun.
Heat the support adjacent to the insert.
SUBTASK 72-60-32-350-068 Remove the Damaged Inserts
Refer to Figure.
Use the Hot air gun.
Heat the housing adjacent to hole.
SUBTASK 72-60-32-350-069 Install the New Insert

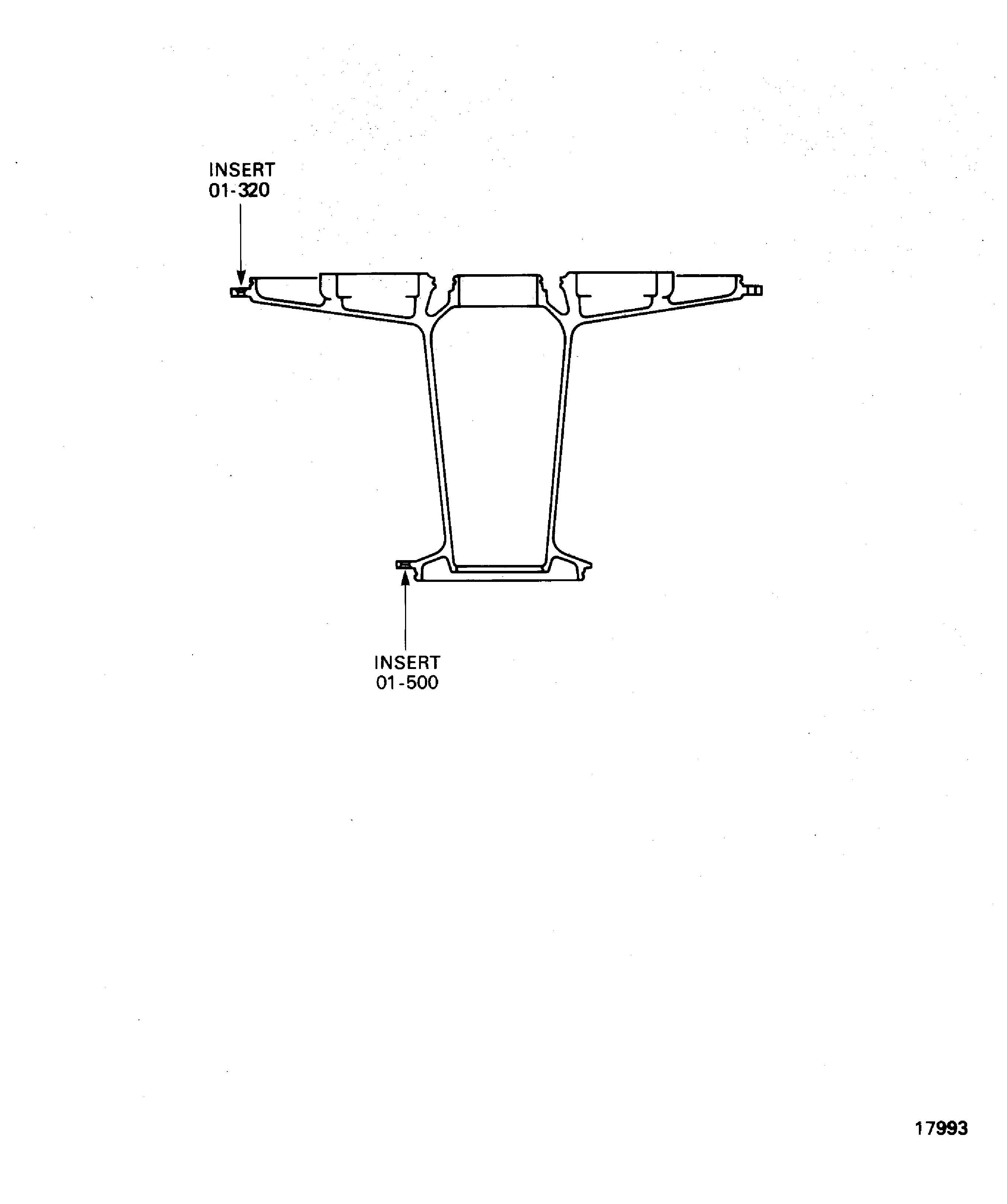

Figure: Replace the damaged inserts in the angle gearbox support
Replace the damaged inserts in the angle gearbox support
