TASK 72-60-42-300-009 Angle Gearbox Radial Gearshaft Support - Repair The Plug Seat By Bushing, Repair-009 (VRS5093)

DMC:V2500-A0-72-60-4204-01A-664A-C|Issue No:005.00|Issue Date:2021-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-60-42-300-009 Angle Gearbox Radial Gearshaft Support - Repair The Plug Seat By Bushing, Repair-009 (VRS5093)

Effectivity

FIG/ITEM

PART NO.

01-230

4B0211

01-230

4B0272

01-230

4B0355

01-230

4B0375

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

Support

-

Aluminium alloy

Bushing

-

Wrought aluminium

base alloy

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

NOTE

To identify the consumable materials refer to the PCI.

NOTE

Other consumable materials are given in the SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Arbor PressLOCALArbor press
FPI Inspection stationLOCALFPI Inspection station
FreezerLOCALFreezer
IAE 3F10335 Drift0AM53IAE 3F10335
Magnifying Glass, 5xLOCALMagnifying Glass, 5x
OvenLOCALOven
Vibrating Marking PencilLOCALVibrating Marking Pencil

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-001 SOLVENT, DELETEDX111XCoMat 01-001

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
BushingLOCAL4L0034

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-60-42-320-074 Machine the Plug Seat in the Radial Gear Support

    1. Refer to Figure.

      2. Machine the plug seat.

      1. The diameter must be between 2.5181 in. to 2.5197 in. (63.960 mm to 64.000 mm) after the removal of the damage.

      2. FIR in relation to diameter A.

      3. Remove all damage and wear.

      4. Deleted.

    2. SUBTASK 72-60-42-220-095 Examine the Radial Gear Support

      1. Inspect the support for cracks in the area of the plug seat.

    3. SUBTASK 72-60-42-330-063 Apply the Chromate Conversion Coating

      1. Apply the chromate conversion coating to the machined surfaces.

      1. Refer to the SPM TASK 70-38-02-300-503.

    4. SUBTASK 72-60-42-350-070 Install the BUshing

    1. Refer to Figure.

    2. WARNING

      DO NOT TOUCH THE HOT PARTS WITHOUT PROTECTIVE GLOVES.
      HOT PARTS CAN CAUSE REDDENING AND BLISTERING OF THE SKIN IF THE HANDS ARE NOT PROTECTED.
      IMMERSE THE CONTACTED AREA IN COLD WATER FOR 10 MINUTES IF THE SKIN IS BURNED. IMMEDIATELY GET THE MEDICAL ATTENTION IF PAIN OR BLISTERING PERSISTS.

      CAUTION

      MAKE SURE THAT THE LEAD IN CHAMFER OF THE BUSHING POINTS AWAY FROM THE DRIFT.

      Install the bushing on the IAE 3F10335 Drift 1 off.

      3. Increase the temperature of the support and/or decrease the temperature of the assembled drift and bushing.

      1. NOTE

        The difference in temperature between the parts must be 216 deg F (120 deg C).
        Do not increase the temperature of the housing above 284 deg F (140 deg C).
        Do not decrease the temperature of the assembled drift and bushing below -58 deg F (-50 deg C).

        Use Oven and/or a Freezer.

    4. Remove the support from the oven and/or the assembled drift and bushing from the freezer.

      5. CAUTION

        INSTALL BUSHING IN MACHINED BORE IMMEDIATELY AFTER REMOVAL FROM FREEZER, OTHERWISE BUSHING CANNOT BE CORRECTLY INSTALLED.

        Install the bushing into machined bore.

      1. Use IAE 3F10335 Drift 1 off and an Arbor Press.

      2. Give sufficient back-up support at bushing bore area prevent support distortion when you install the bushing.

    6. Allow the parts to reach ambient temperature.

    7. Remove the drift.

    5. SUBTASK 72-60-42-320-075 Machine the Inner Diameter of the Bushing

    1. Refer to Figure.

      2. Machine the inner diameter of the bushing.

      1. The dimensions must be between 2.3642 in.to 2.3681 in. (60.050 mm to 60.150 mm).

      2. FIR in relation to diameter A.

      3. Chamfer where necessary.

      4. Deleted.

    6. SUBTASK 72-60-42-330-064 Apply the Chromate Conversion Coating

      1. Apply the chromate conversion coating to the machined surfaces of the bushing.

      1. Refer to the SPM TASK 70-38-02-300-503.

    7. SUBTASK 72-60-42-350-071 Record the Repair

      1. Vibro engrave VRS5093 adjacent to the part number.

      1. Remove the metal lifted by marking.

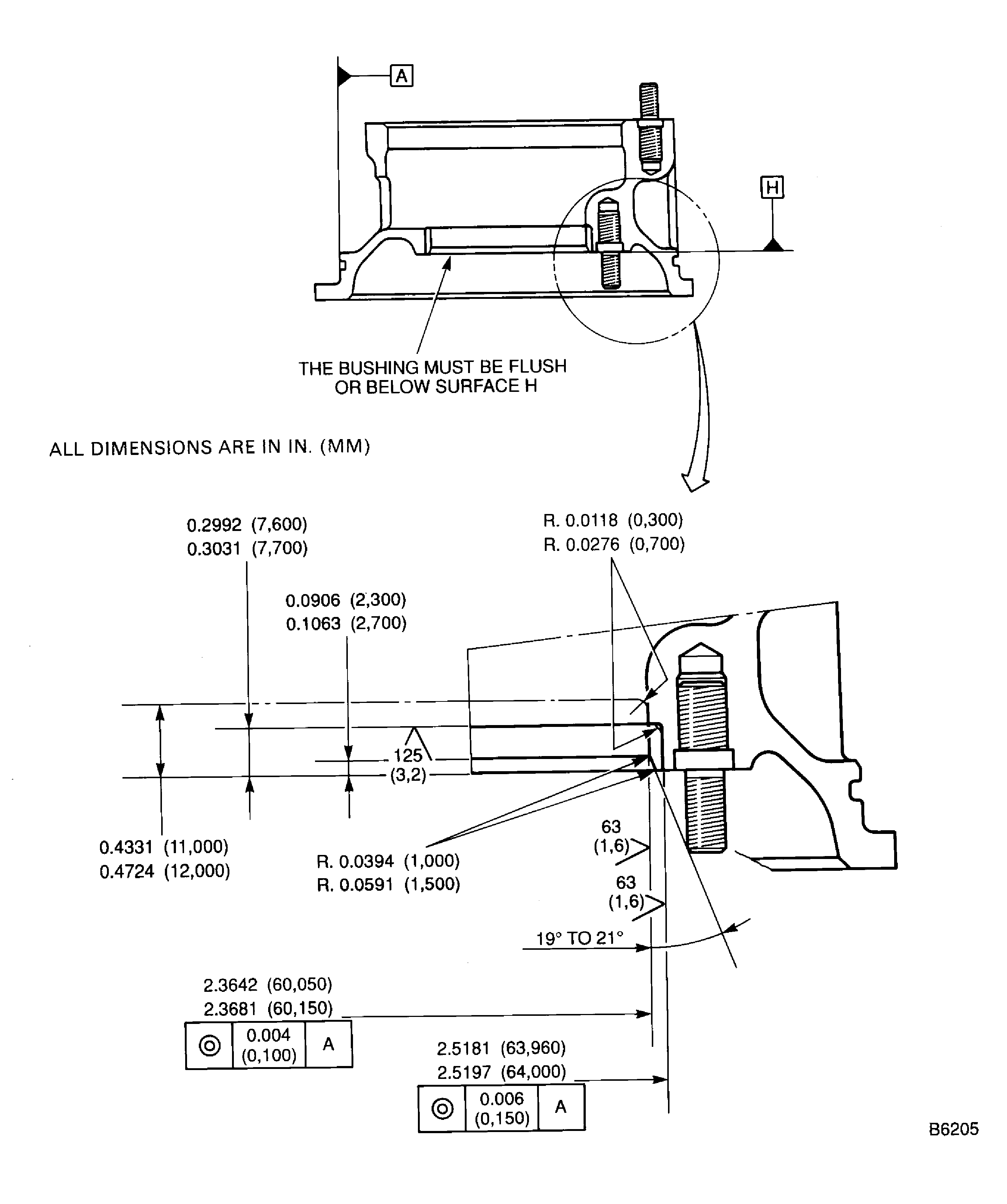

    8. Figure: Repair The Plug Seat

    Repair The Plug Seat

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Deleted grinding machine from support equipment and procedural steps. (19VF825)
