TASK 72-60-43-300-001 Angle Gearbox Driven Bevel Gearshaft - Blend Repair, Repair-001 (VRS5199)
General
Price and availability - none
The practices and processes referred to in the procedure by the TASK number are in the SPM.
NOTE
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 02-140 TRIANGULAR INDIA STONE, FINE GRIT | LOCAL | CoMat 02-140 |
Spares
NONESafety Requirements
NONEProcedure
Refer to Figure.
Refer to the SPM TASK 70-35-03-300-501.
The maximum permitted depth of the blending on the spline and on the gear is 0.0014 in. (0.035 mm).
The maximum permitted damaged area of each tooth is 10 percent of the surface of ingage.
It is not necessary to polish the repaired surfaces.
Blend the surface of ingage of the spline teeth and gear teeth at location 1 and 4.
The maximum number of nicks permitted is 3 per tooth, 0.04 in. (1.02 mm) long, not extended more than 0.02 in. (0.51 mm) onto the surface of ingage.
The maximum permitted depth of blended nicks is 0.004 in. (0.10 mm).
The minimum distance between the nicks must be equal to or more than the length of the longest nick.
Refer to the SPM TASK 70-35-03-300-501.
Blend the spline tooth tip at location 1.
The maximum permitted depth of the blending is 0.008 in.
Refer to the SPM TASK 70-35-03-300-501.
Blend the gearshaft surfaces at location 2.
The maximum permitted depth of the blending is 0.010 in. (0.25 mm).
Refer to the SPM TASK 70-35-03-300-501.
Blend the bearing journal and shoulder surfaces at location 3.
The maximum number of nicks permitted is 3 per tooth, 0.04 in. (1.02 mm) long, not extended more than 0.02 in. (0.51 mm) onto the surface of ingage.
The maximum permitted depth of blended nicks is 0.01 in. (0.25 mm).
The minimum distance between the nicks must be equal to or more than the length of the longest nick.
Refer to the SPM TASK 70-35-03-300-501 .
Blend the gear tooth tip and tooth side at locations 5 and 6.
SUBTASK 72-60-43-350-051 Blend Repair the Bevel Gearshaft (01-420) Surfaces

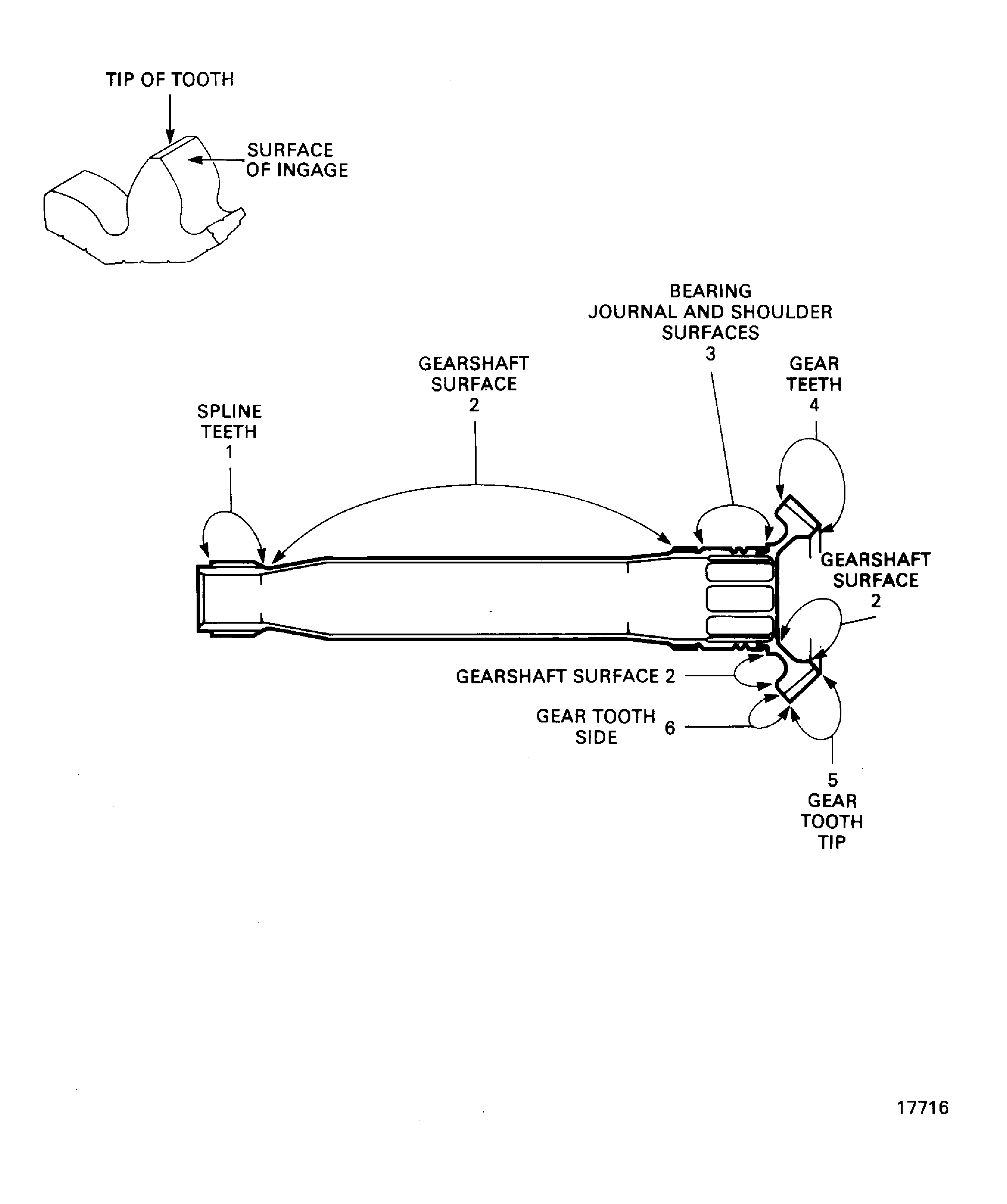

Figure: Repair details and dimensions
Repair details and dimensions
