Common Information
TASK 73-12-41-300-001 Fuel Pumps - Related Parts - Repair The Surface Damage Of The Adapter Housing, Repair-001 (VRS1489)
General
Price and availability - none
The practices and processes referred to in the procedure by the TASK numbers are in the SPM.
NOTE
To identify the consumable materials refer to the PCI.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 05-019 WATERPROOF SILICON CARBIDE | LOCAL | CoMat 05-019 | GRIT SIZE 400 | |
| CoMat 05-020 WATERPROOF SILICON CARBIDE | LOCAL | CoMat 05-020 | ||
| CoMat 01-275 CHROMATE CONVERSION COATING FOR ALUMINIUM | LOCAL | CoMat 01-275 |
Spares
NONESafety Requirements
NONEProcedure
Refer to Figure.
Use abrasive stones or abrasive papers.
Refer to SPM TASK 70-35-03-300-501.
Make smooth the damaged surface.
SUBTASK 73-12-41-350-051 Remove Damage from the Adapter Housing
Refer to Inspection-000 TASK 73-12-41-200-400.
Examine the repaired surface
SUBTASK 73-12-41-220-067 Examine the Repaired Surface of the Adapter Housing
Refer to SPM TASK 70-38-02-300-503.
Apply chromate conversion coating to the repaired surface.
SUBTASK 73-12-41-380-051 Apply Surface Protection to the Adapter Housing

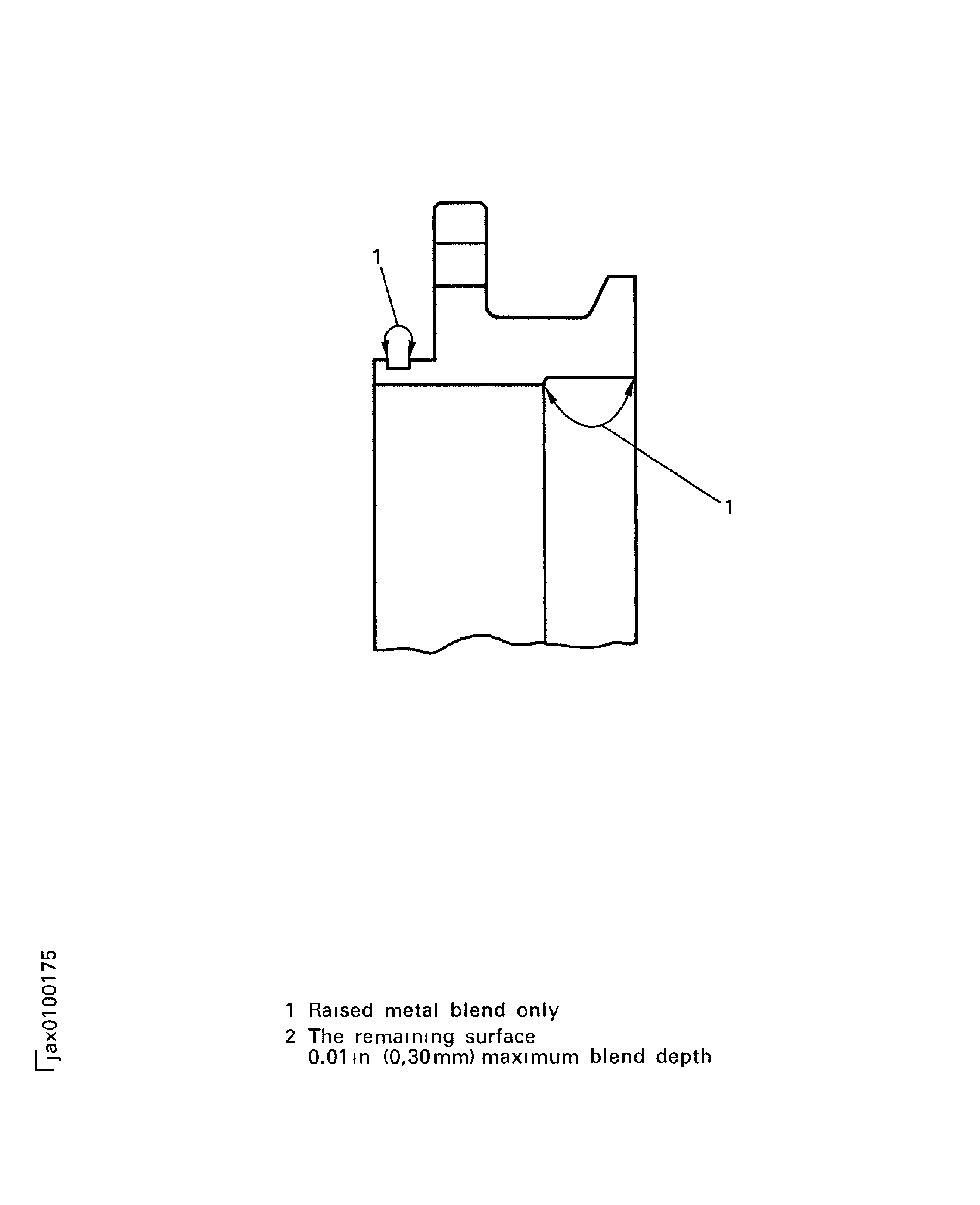

Figure: Adapter Housing - Repair Limit
Adapter Housing - Repair Limit
