TASK 73-13-41-990-501 Fuel Nozzle And Support Assembly - Description And Operation of the Fuel Nozzles

DMC:V2500-A0-73-13-4100-00A-040A-C|Issue No:002.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Description

  1. TASK 73-13-41-990-501 Fuel Nozzle And Support Assembly - Description And Operation of the Fuel Nozzles

    1. Description

      1. The fuel nozzle and support assembly is a single tube design contained by fairings. Refer to Figure.

      2. There are 20 fuel nozzles in groups of two. They are externally installed through ports in the diffuser case. The fuel nozzles are bolted at the mounting flange to cast pads on the case.

        NOTE

        A seal prevents air leakage around the mounting flange.

    2. The fuel nozzle is a single orifice air blast design. The nozzle mixes air with fuel to get a fuel spray (atomization). Each nozzle will flow 13 to 600 pph (5,90 to 272,16 kg/hr). You can remove the inlet strainer element and the metering plug through the fuel inlet fitting. Refer to Figure.

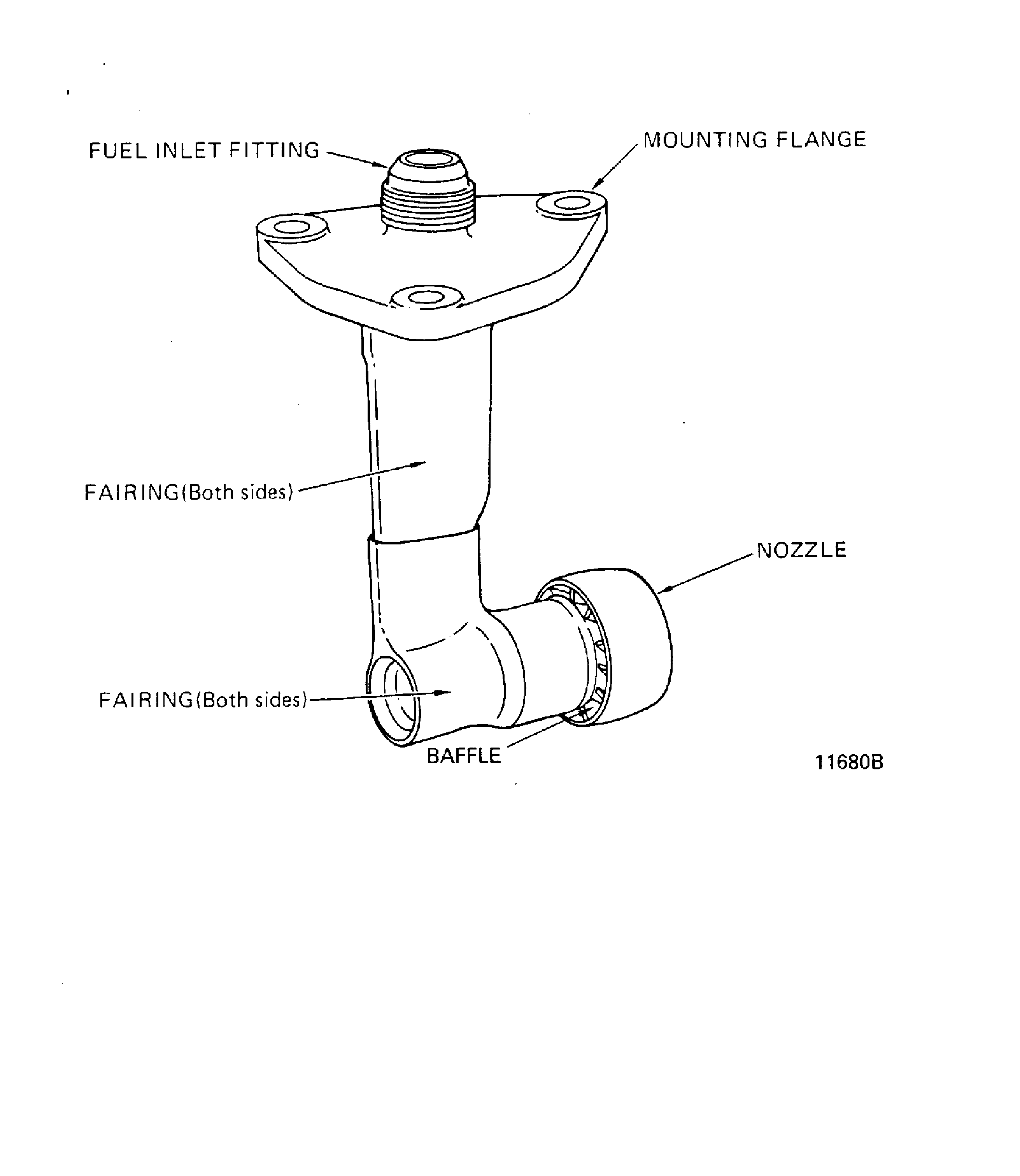

    Figure: Fuel Nozzle and Support Assembly

    Fuel Nozzle and Support Assembly

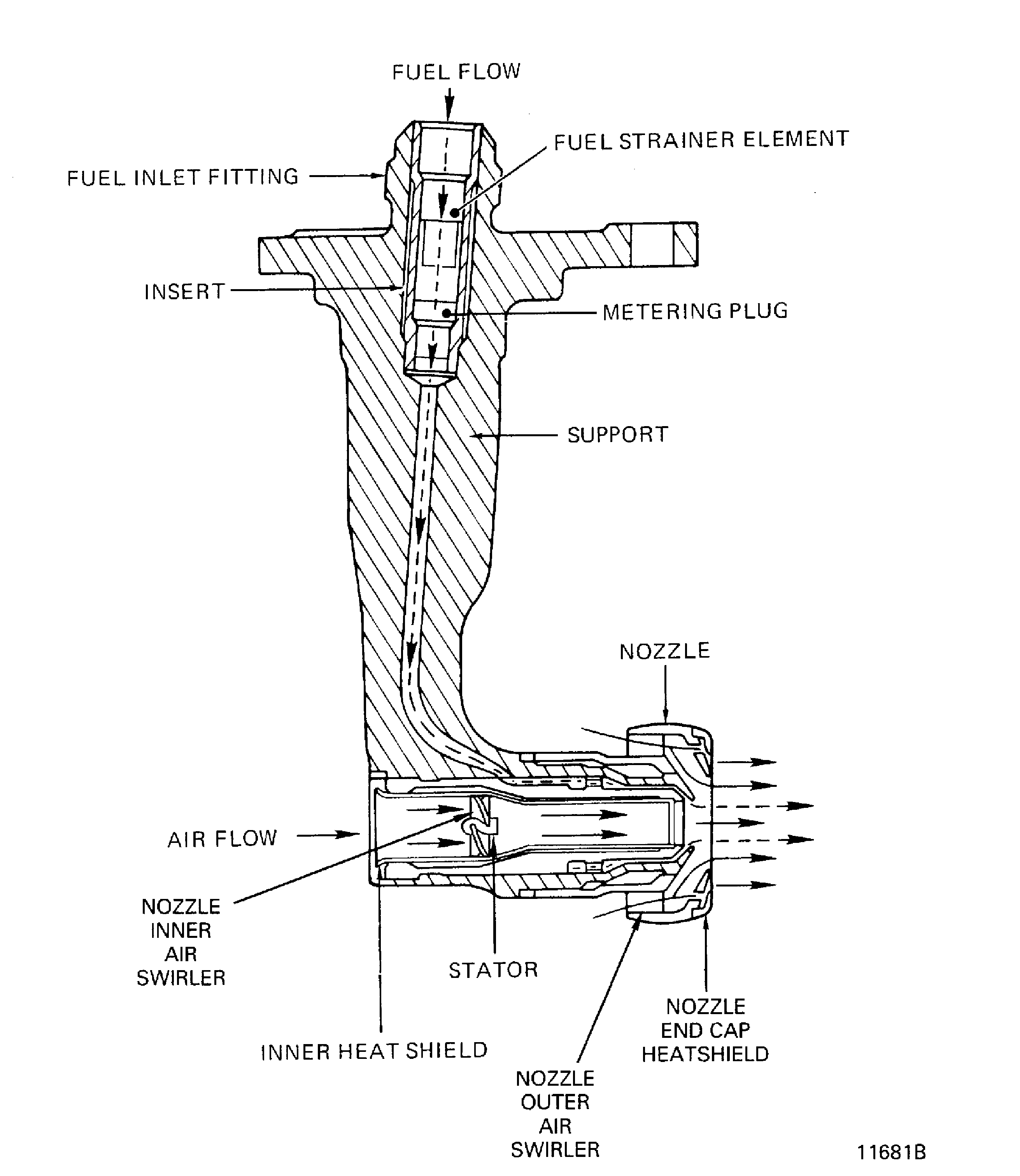

    Figure: Fuel nozzle and support assembly

    Fuel nozzle and support assembly
