TASK 73-22-15-300-001 P3/T3 Sensor - Related Parts - Repair Stud Thread, Repair-001 (VRS3480)
General
Price and availability - none.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Open-end wrench | LOCAL | Open-end wrench | ||
| Vise | LOCAL | Vise | ||
| Die (0.164 - 32NS) | LOCAL | Die (0.164 - 32NS) | ||
| Die (0.190 - 32NS) | LOCAL | Die (0.190 - 32NS) |
Consumables, Materials and Expendables
NONESpares
NONESafety Requirements
NONEProcedure
Refer to Figure.
Use a Die (0.164 - 32NS) for the chromel studs.
Use a Die (0.190 - 32NS) for the alumel studs.
Chase the stud threads with a die.
SUBTASK 73-22-15-350-051 Chase the Stud Threads on the P3/T3 Sensor

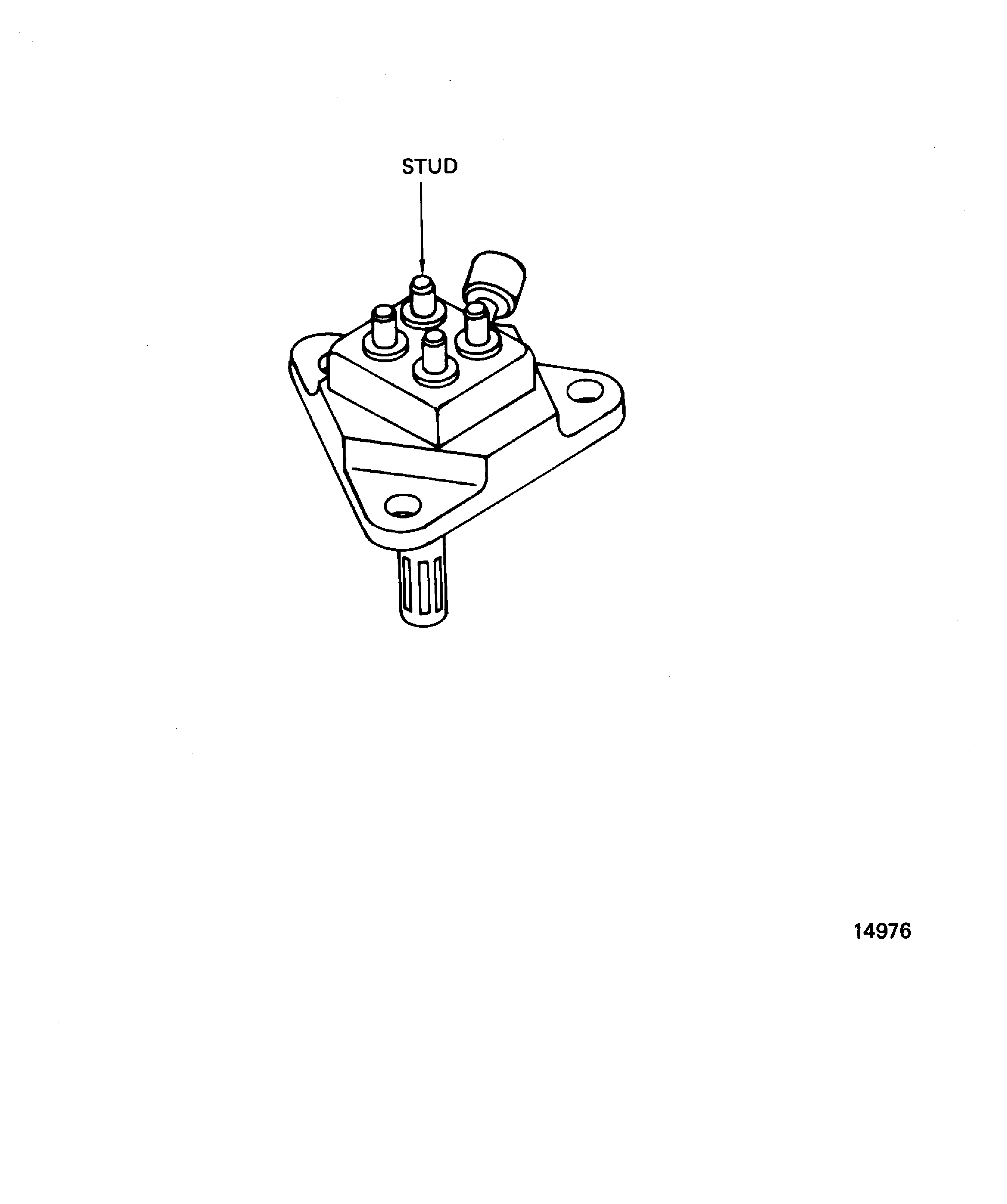

Figure: P3/T3 Sensor Stud Thread Repair
P3/T3 Sensor Stud Thread Repair
