TASK 73-22-35-300-003 EEC Data Entry Plug - Related Parts - Remove The Moisture from The Data Entry Plug Connector, Repair-003 (VRS3502)
General
Price and availability - none
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Oven | LOCAL | Oven | (low temperature) |
Consumables, Materials and Expendables
NONESpares
NONESafety Requirements
NONEProcedure
Refer to Figure.
Clean the connector by the procedures given in Cleaning-000 TASK 73-22-35-100-400.
Clean the data entry plug connector
SUBTASK 73-22-35-110-052 Clean the Data Entry Plug Connector
Refer to Figure.
Examine the connector for moisture.
SUBTASK 73-22-35-220-065 Examine the Repair

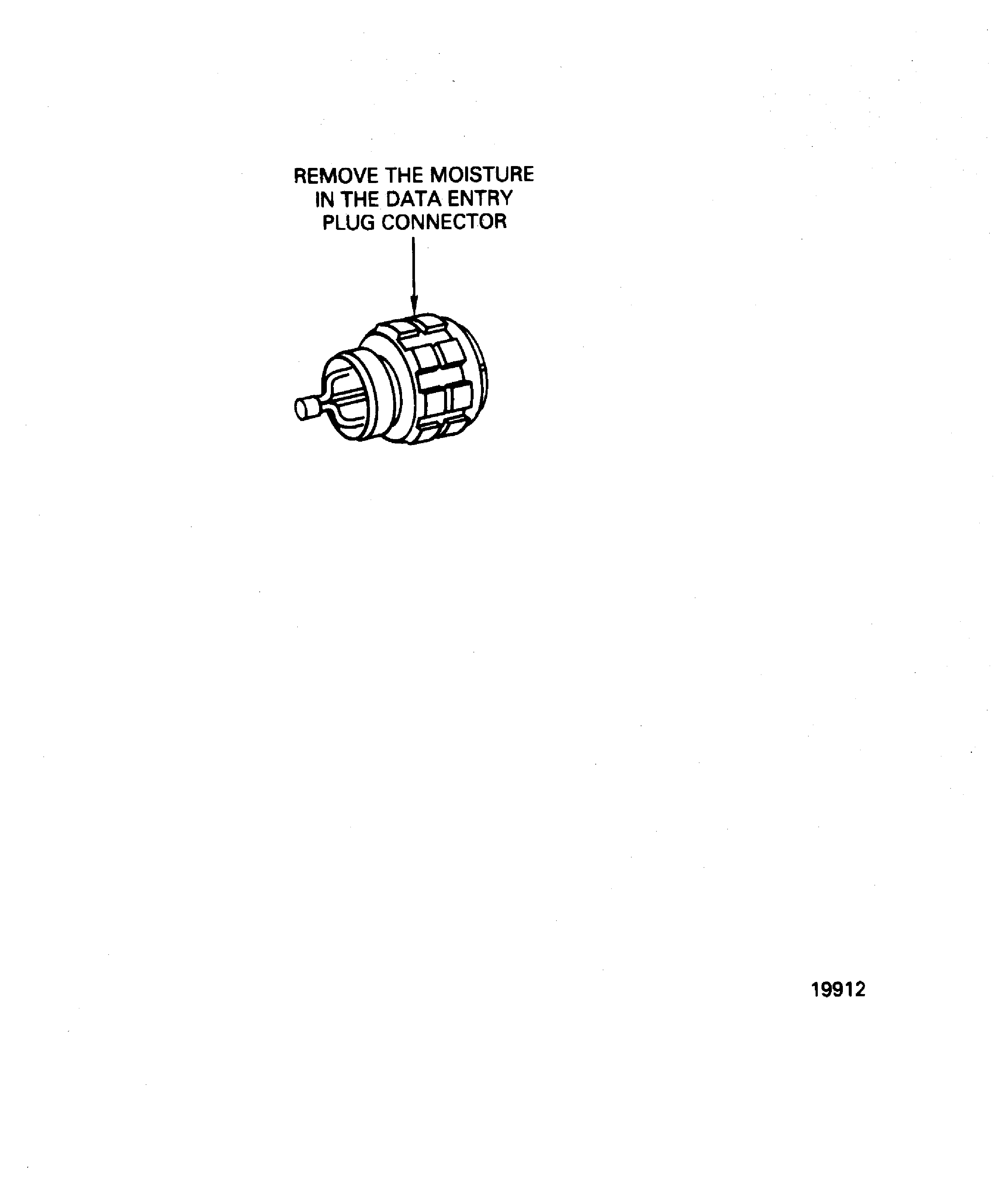

Figure: Repair Details and Dimensions
Repair Details and Dimensions
