TASK 73-22-35-300-002 EEC Data Entry Plug - Related Parts - Repair The Jumper Contact or Contact, Repair-002 (VRS3501)

DMC:V2500-A0-73-22-3500-00A-270A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 73-22-35-300-002 EEC Data Entry Plug - Related Parts - Repair The Jumper Contact or Contact, Repair-002 (VRS3501)

Effectivity

FIG/ITEM

PART NO.

01-100

2A2309

01-100

2A3106

01-100

5A0431

01-100

5A0432

Material of component

DESCRIPTION

RR SYMBOL

MATERIAL

Data entry plug assembly

-

Stainless steel

General

Price and availability - none

The practices and processes referred to in the procedure by TASK number are in the SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Long soft nose pliersLOCALLong soft nose pliers

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 73-22-35-350-053 Make the Jumper Contact or Contact Straight in the Connector

    1. Refer to Figure.

      2. Make the jumper contact or contact straight.

      1. Use a Long soft nose pliers or equivalent.

    2. SUBTASK 73-22-35-220-064 Examine the Repair

    1. Refer to Figure.

      2. Examine the repaired jumper contact or contact

      1. Make sure the repaired contacts are of equal distance from the other contacts and there is no damage on the contacts from the tool.

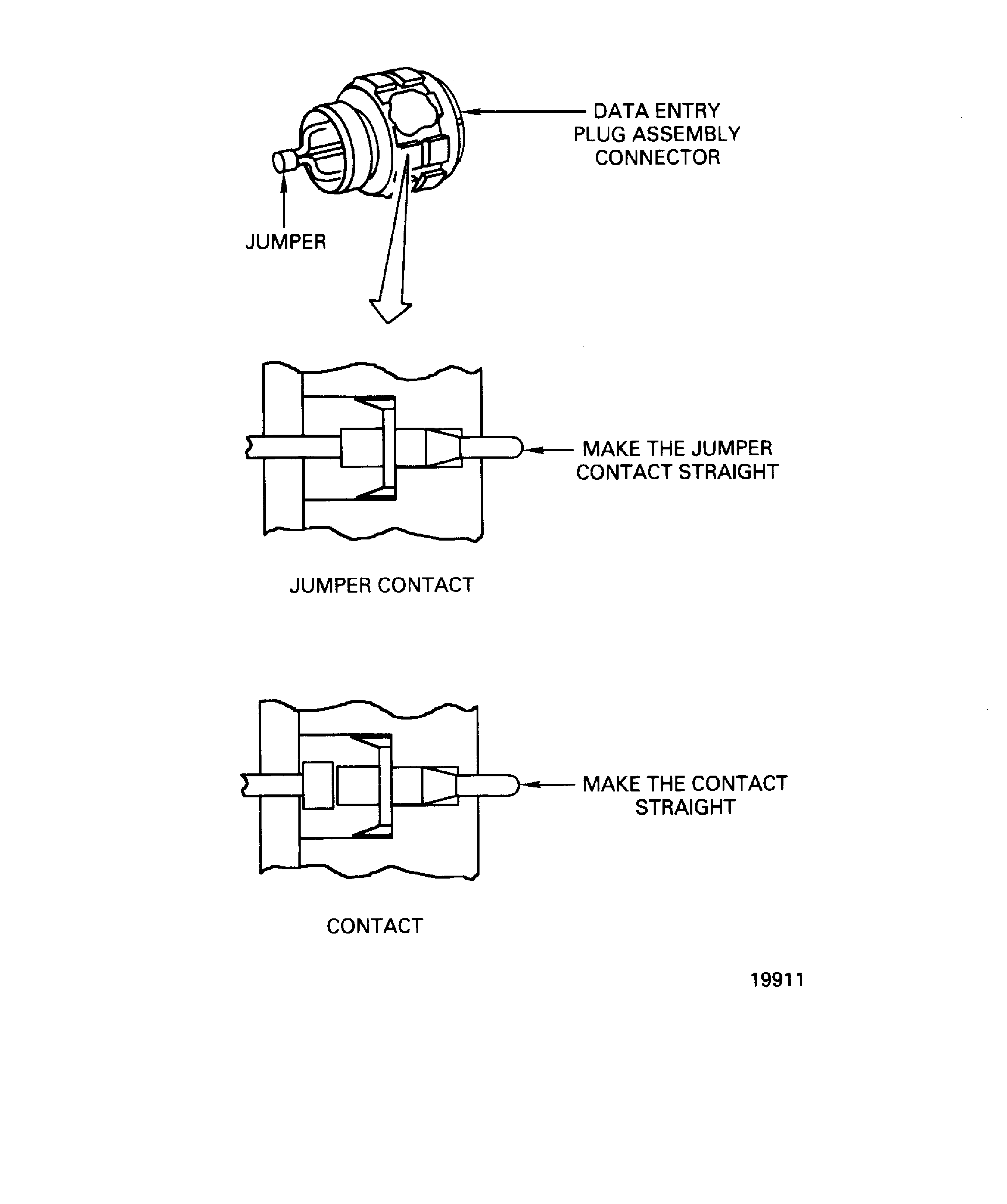

    3. Figure: Repair Details and Dimensions

    Repair Details and Dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
Manufacturer Code:LOCAL
Enterprise Name:LOCALLY SUPPLIED
Manufacturer Code:LOCAL
Tool Number:Long soft nose pliers
Tool Name:Long soft nose pliers
