TASK 73-22-51-300-005 P4.9 Air Sensor Tubes and Manifolds - Blend Repair Surface Damage on the Connector, Repair 005 (VRS3278)
General
Price and availability - none.
The practices and processes referred to in the procedure by the TASK numbers are in the SPM.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| File (fine) | LOCAL | File (fine) | ||
| Workshop Inspection Equipment | LOCAL | Workshop Inspection Equipment |
Consumables, Materials and Expendables
NONESpares
NONESafety Requirements
NONEProcedure
Refer to Figure and SPM TASK 70-35-21-350-501.
Blend damage to a maximum of 0.010 in. (0.254 mm) in depth.
Blend damage on the conical seats, threads and seal ring sealing surface.
SUBTASK 73-22-51-350-059 Blend the Damage on the Pressure Control Tube Connectors
Refer to Inspection-001 TASK 73-22-51-200-100.
Examine the connector after blend repair.
SUBTASK 73-22-51-220-074 Examine the Repair

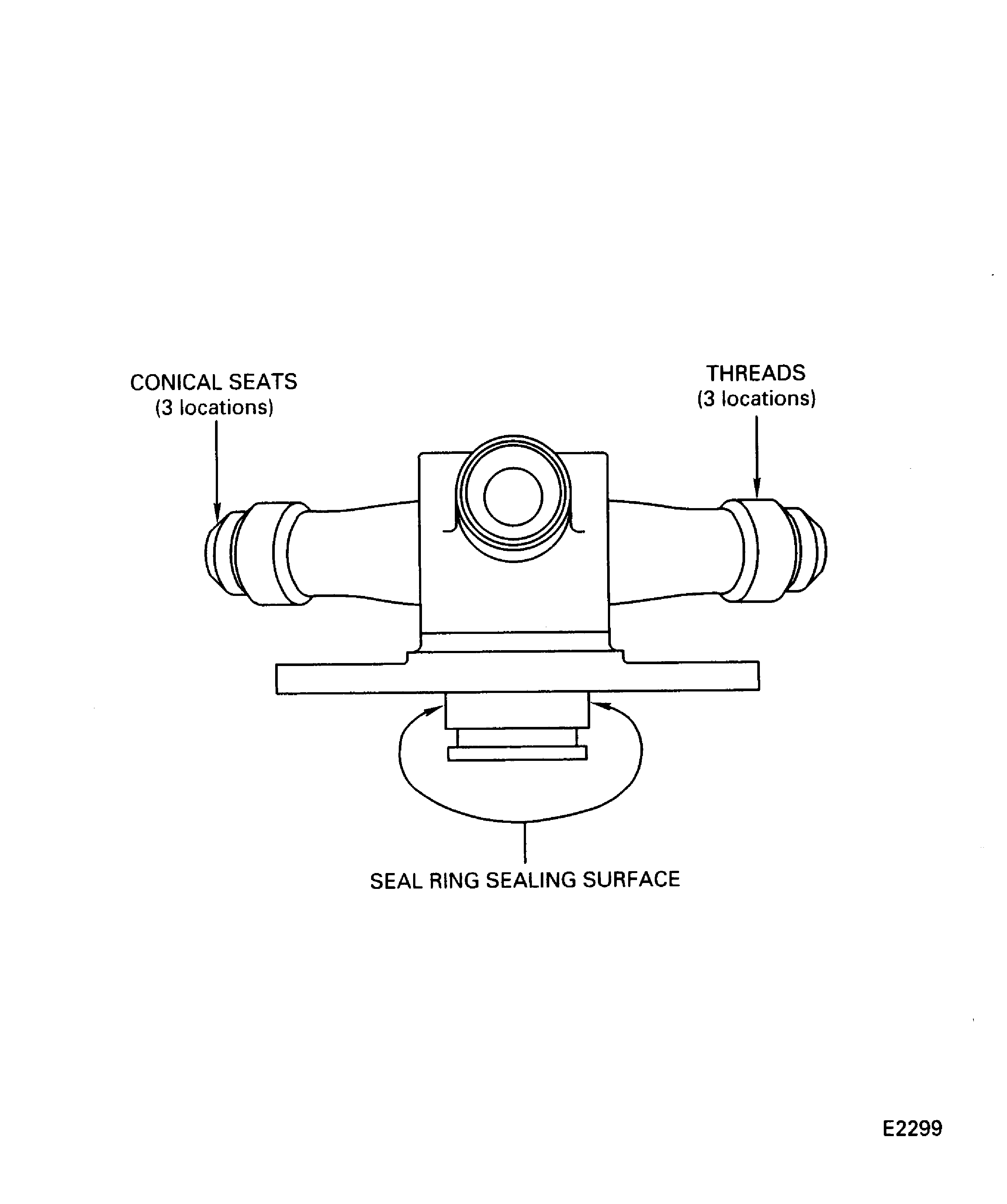

Figure: Pressure Control Tube Connector Blend Repair
Pressure Control Tube Connector Blend Repair
