TASK 74-11-38-300-001 Ignition Exciters - Related Parts - Blend Damaged Surface Of The Bracket, Repair-001 (VRS1627)
General
Price and availability - none
The practices and processes referred to in the procedure by the TASK numbers are in the SPM.
For the method to clean the parts, refer to Cleaning-000 TASK 74-11-38-100-400.
NOTE
To identify the consumable materials refer to the PCI.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 05-020 WATERPROOF SILICON CARBIDE | LOCAL | CoMat 05-020 | ||
| CoMat 05-021 WATERPROOF SILICON CARBIDE | 44197 | CoMat 05-021 |
Spares
NONESafety Requirements
NONEProcedure
Refer to Figure.
Use portable grinding equipment. Dress until all damage is removed.
Dress to remove damage
Refer to SPM TASK 70-35-03-300-501.
Blend dressed area
SUBTASK 74-11-38-350-051 Blend the Damaged Surface of the Bracket (01-740)
Refer to Figure.
If the blended area exceeds the blend limit given in Figure, reject the bracket
Examine the repaired area of bracket
Refer to Inspection-000 TASK 74-11-38-200-400.
Use 8X magnifying glass.
Visually examine the bracket
SUBTASK 74-11-38-220-051 Examine the Bracket (01-740)

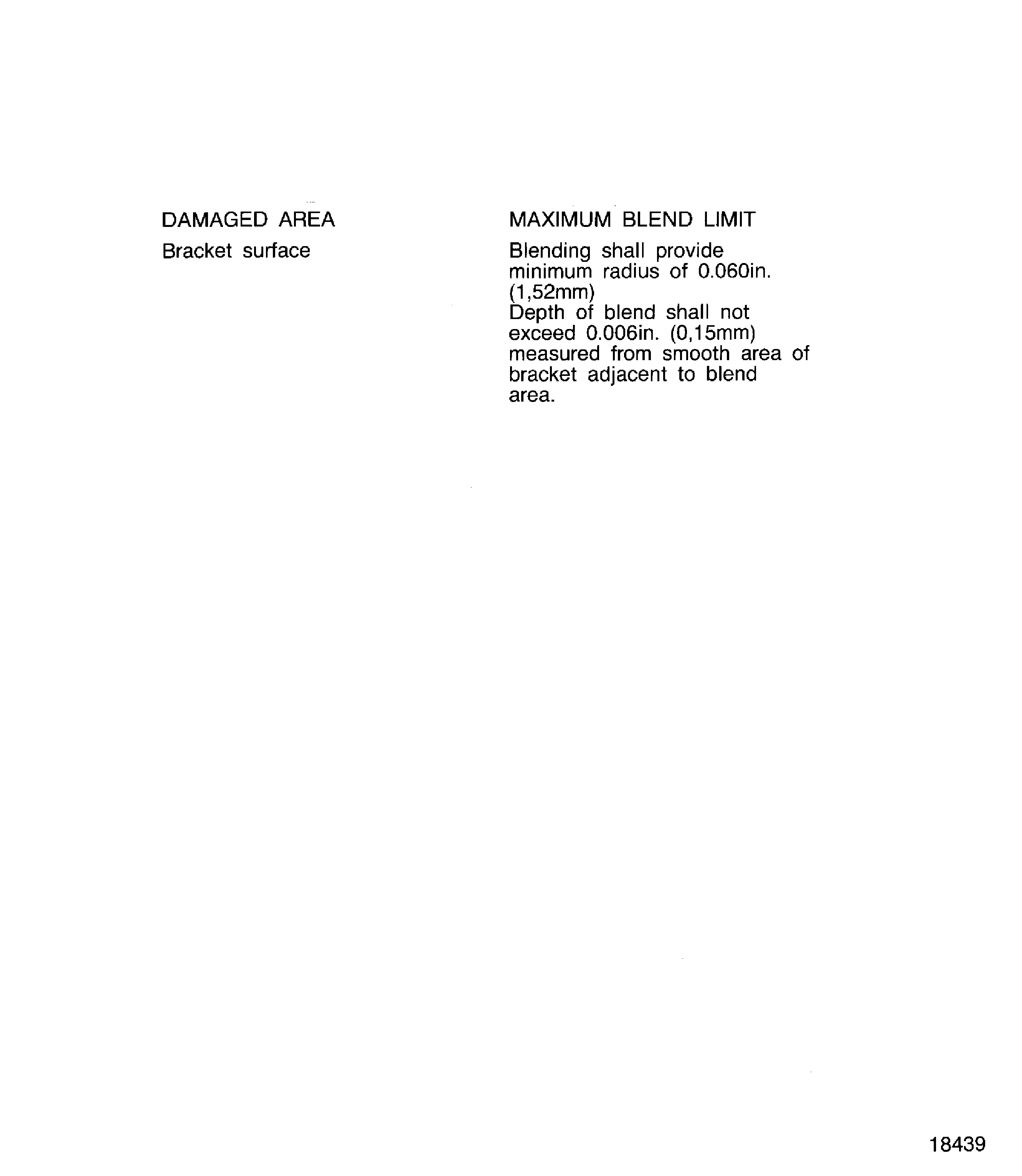

Figure: Blend Limit Of The Bracket
Blend Limit Of The Bracket
