TASK 74-11-38-300-003 Ignition Exciters - Related Parts - Repair The Brackets By Replacing Anti Vibration Mounts And Rivets, Repair-003 (VRS1624)

DMC:V2500-A0-74-11-3800-01A-920A-C|Issue No:001.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 74-11-38-300-003 Ignition Exciters - Related Parts - Repair The Brackets By Replacing Anti Vibration Mounts And Rivets, Repair-003 (VRS1624)

Effectivity

FIG/ITEM

PART NO.

01-200

5T0032

Assembly A

01-200

5T0051

Assembly D

01-270

5T0058

Assembly B

01-270

5T0041

Assembly B

01-270

5T0043

Assembly B

01-600

5T0032

Assembly A

01-600

5T0051

Assembly D

01-670

5T0030

Assembly C

01-670

5T0045

Assembly C

01-200

6A5768

Assembly D

01-600

6A5769

Assembly D

Material of component

DESCRIPTION

SYMBOL

MATERIAL

Bracket

-

Titanium alloy

General

This Repair scheme gives the procedure for replacing anti vibration mounts and rivets of the brackets.

Price and availability

Refer to IAE for any of the following:

Tools

Engine parts

Repair of spares

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

Repair parts

FIG/ITEM

PART NO.

PART IDENT

QTY

01-235

AS16088

Rivet, solid universal head

4

01-240

5U0020

Mount, anti vibration

1

01-305

AS16088

Rivet, solid universal head

4

01-310

5U0020

Mount, anti vibration

1

01-315

AS16088

Rivet, solid universal head

2

01-320

AS16488

Rivet, solid CSK head

2

01-325

5U0020

Mount, anti-vibration

1

01-330

AS16490

Rivet, solid CSK head

2

01-635

AS16088

Rivet, solid universal head

4

01-640

5U0020

Mount, anti vibration

1

01-705

AS16088

Rivet, solid universal head

4

01-710

5U0020

Mount, anti vibration

1

01-715

AS16088

Rivet, solid universal head

2

01-720

AS16488

Rivet, solid CSK head

2

01-725

5U0020

Mount, anti vibration

1

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Hand drillLOCALHand drill
Rivet squeezerLOCALRivet squeezer

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 74-11-38-350-053 Replace Damaged Anti Vibration Mounts

    1. Refer to Figure, Figure, Figure, and Figure.

      2. Remove rivets.

    2. SUBTASK 74-11-38-350-054 Remove Damaged Anti Vibration Mounts

    1. Remove anti-vibration mounts.

    3. SUBTASK 74-11-38-350-055 Install New Anti Vibration Mounts

    1. Install anti-vibration mounts.

    4. SUBTASK 74-11-38-350-056 Install New Rivets

      1. Install rivets

      1. Use Rivet squeezer. Maximum gap of 0.003 in. (0.07 mm) between rivet and parent material is permitted if 60 percent of circumference has no gaps.

    5. SUBTASK 74-11-38-220-053 Visually Examine Repaired Area

      1. Visually examine repaired area.

      1. Refer to the SPM TASK 70-21-01-220-501.

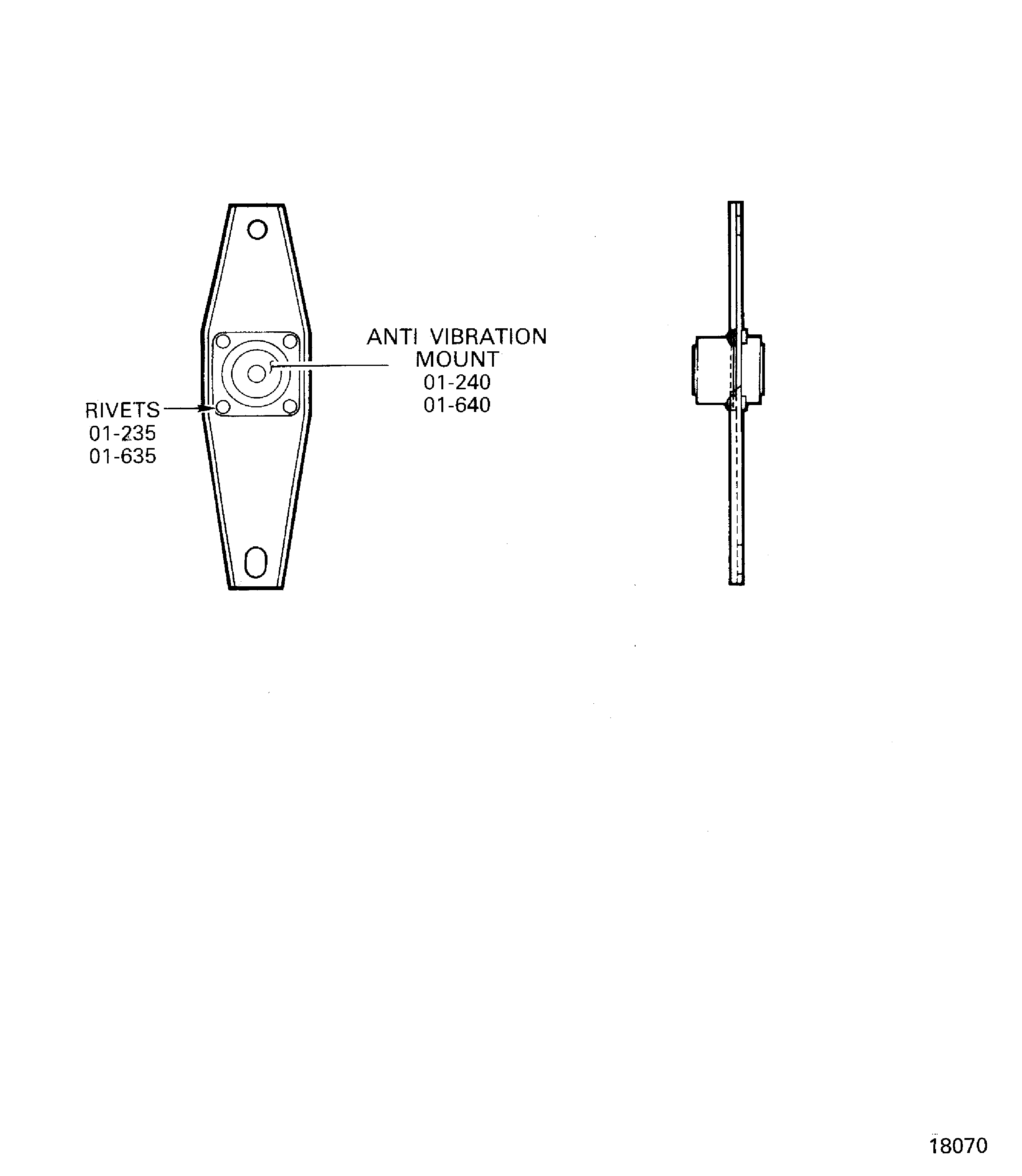

    6. Figure: Rear support, bracket (01-200 Assembly A)

    Rear support, bracket (01-200 Assembly A)

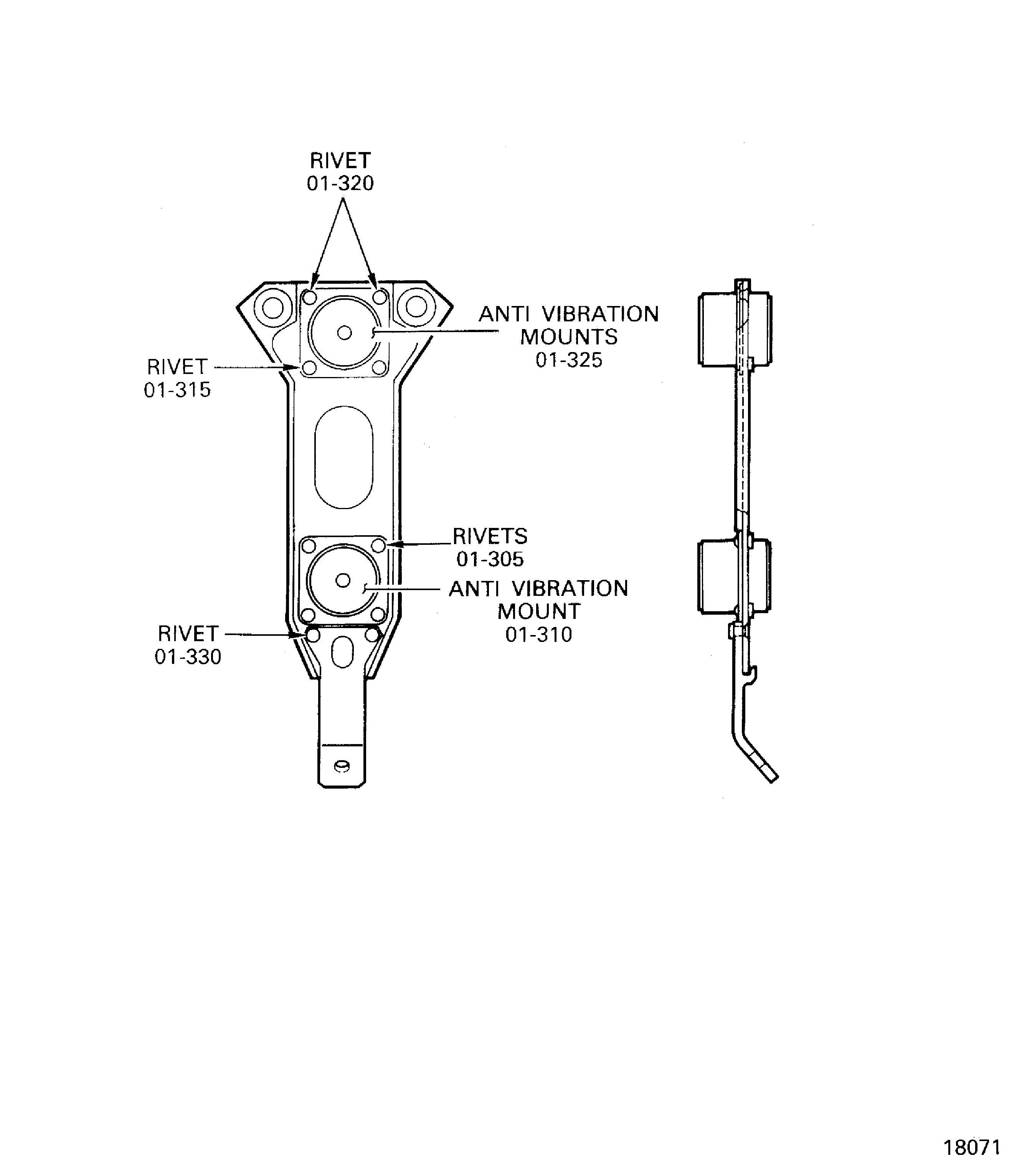

    Figure: Front support, bracket (01-270 Assembly B)

    Front support, bracket (01-270 Assembly B)

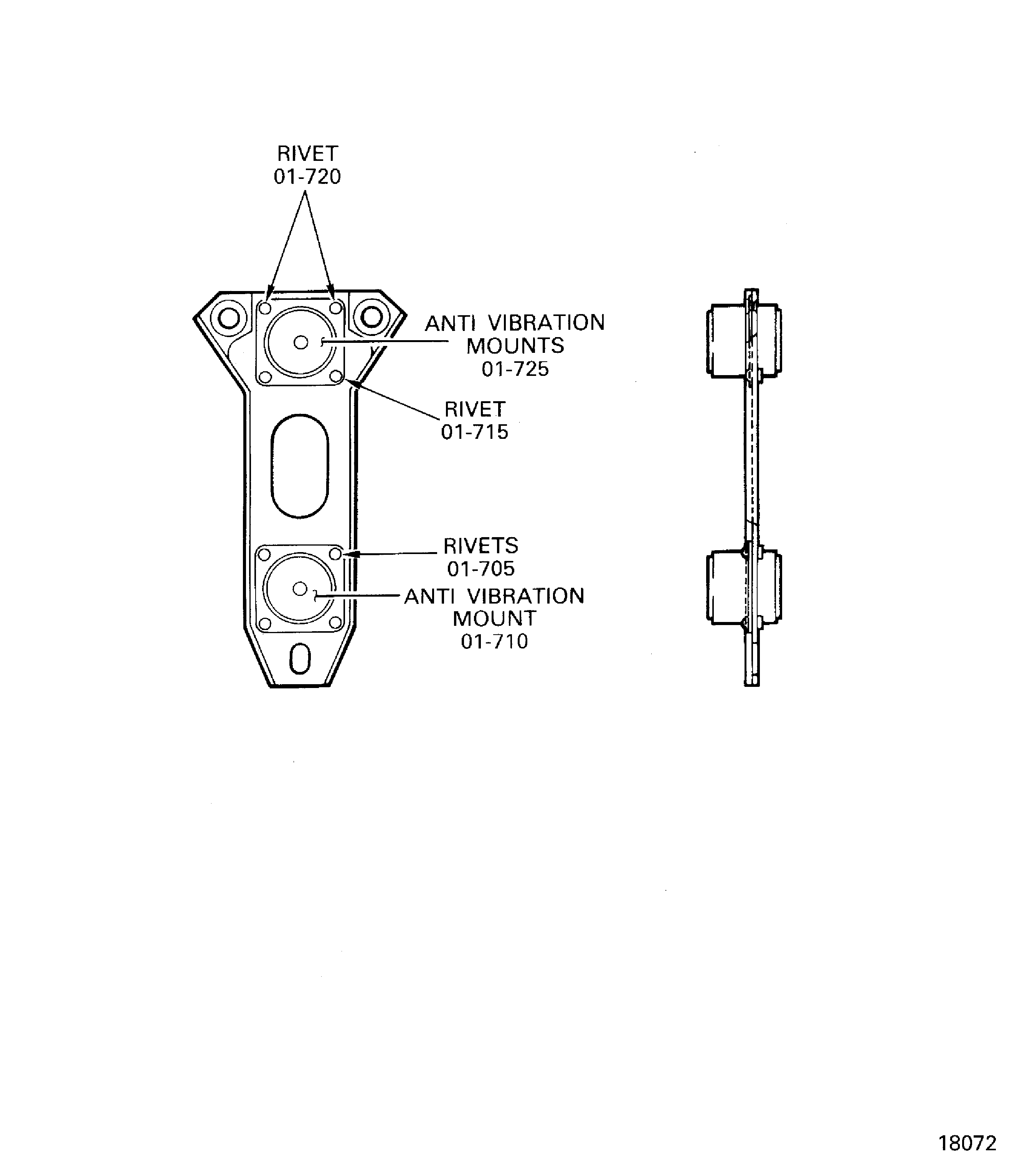

    Figure: Front support, bracket (01-670 Assembly C)

    Front support, bracket (01-670 Assembly C)

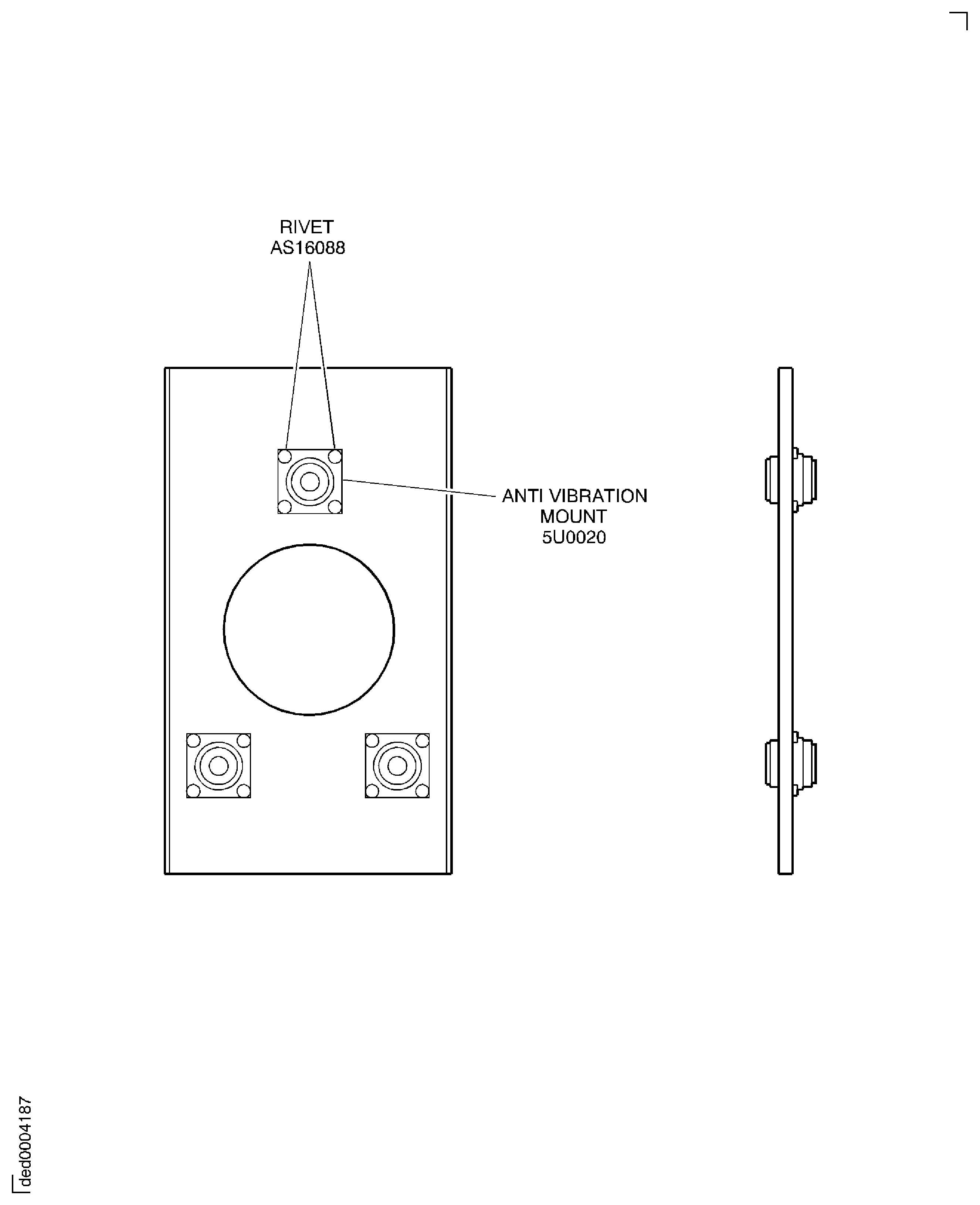

    Figure: Front support, bracket (01-200 Assembly D, 01-600 Assembly D)

    Front support, bracket (01-200 Assembly D, 01-600 Assembly D)

Requirements After Job Completion

Follow-On Conditions

NONE
