TASK 75-24-48-300-004 HPT Active Clearance Control (ACC) Manifolds - Related Parts - Blend Repair The Brackets, Repair-004 (VRS1547)
General
Price and availability - none
The practices and processes referred to in the procedure by the TASK number are in the SPM.
Other consumable materials are given in the SPM.
To identify the consumable materials refer to the PCI.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Hand Held Pneumatic Grinder | LOCAL | Hand Held Pneumatic Grinder |
Consumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 05-020 WATERPROOF SILICON CARBIDE | LOCAL | CoMat 05-020 | ||
| CoMat 05-021 WATERPROOF SILICON CARBIDE | 44197 | CoMat 05-021 |
Spares
NONESafety Requirements
NONEProcedure
Refer to Figure.
Use hand held pneumatic grinder. Dress until all damage is removed.
Dress to remove damage.
Blend dressed area. Refer to SPM TASK 70-35-03-300-501.
SUBTASK 75-24-48-350-052 Blend the Damaged Surface of the Brackets (02-240 and 02-440)
Refer to Figure.
If the blended area exceeds the blend limit given, reject the brackets.
Examine the repaired area of brackets.
Use 8x magnifying glass.
Visually examine the brackets. Refer to Inspection-000 TASK 75-24-51-200-400.
SUBTASK 75-24-48-220-082 Examine the Brackets (02-240 and 02-440)

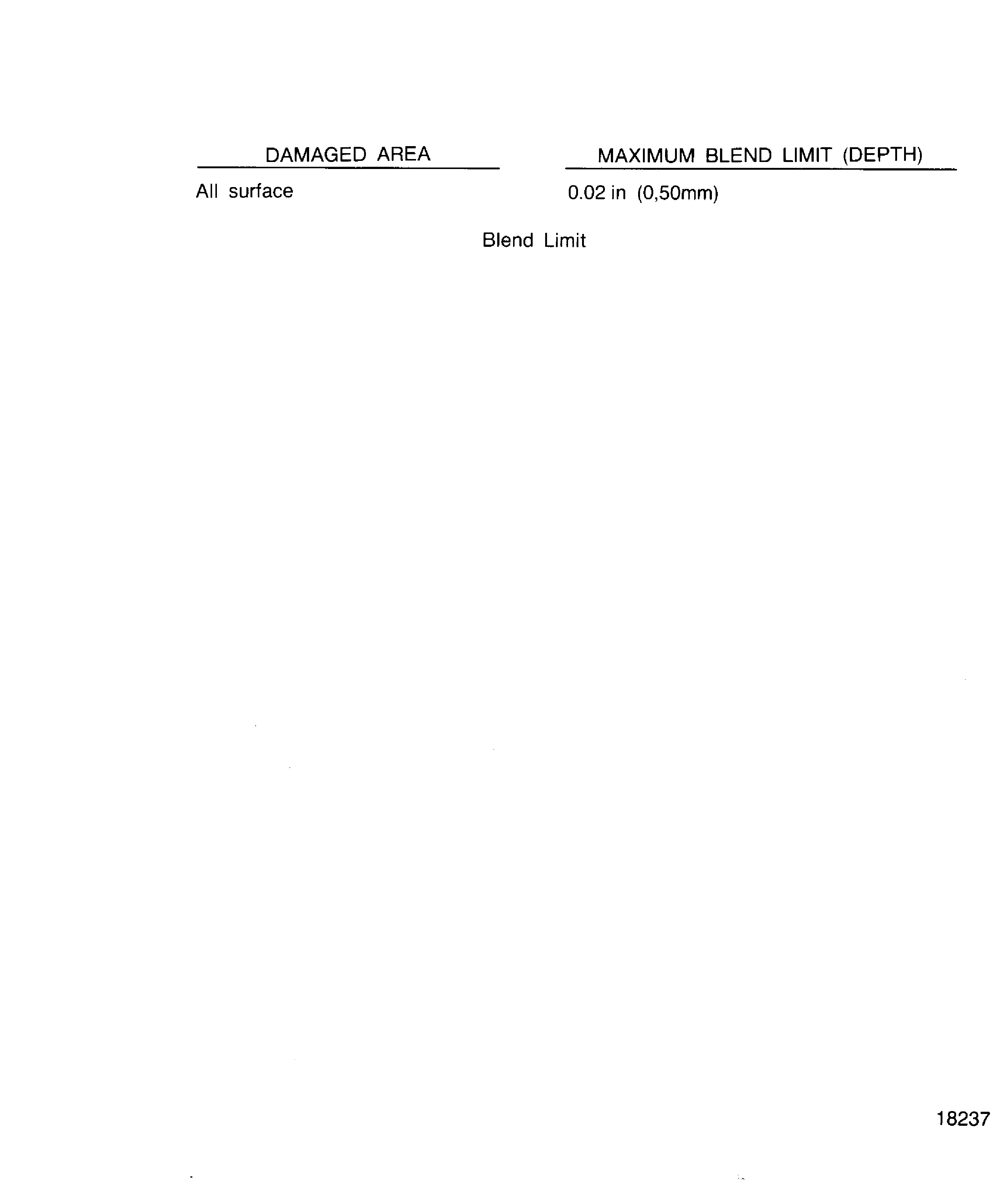

Figure: Blend Limit Of The Brackets
Blend Limit Of The Brackets
