Common Information
TASK 75-24-48-300-012 HPT ACC Air Tubes - Replace the Pin, Repair-012 (VRS1527)
Effectivity
FIG/ITEM | PART NO. |
02-200 | 2A0220 |
02-210 | 2A0225 |
02-220 | 2A0229 |
02-230 | 2A0233 |
02-400 | 2A0233 |
02-410 | 2A0227 |
02-420 | 2A0231 |
02-430 | 2A0235 |
Material of component
DESCRIPTION | SYMBOL | MATERIAL |
TCC tube assembly | Fe-18.5 Cr-11 Ni-0.4 Ti | |
TCC tube assembly (Pin) | Fe-18.5 Cr-11 Ni-0.4 Ti |
General
Price and availability - none.
The practices and processes referred to in the procedure by the TASK number are in the SPM.
For the method to clean the parts, refer to Cleaning-000 TASK 75-24-48-100-100.
NOTE
Repair parts
FIG/ITEM | PART NO. | PART IDENT | QTY |
02-204 | 2A0240 | Pin | 2 off |
02-206 | 2A0239 | Pin | 1 off |
02-214 | 2A0240 | Pin | 2 off |
02-216 | 2A0239 | Pin | 1 off |
02-224 | 2A0240 | Pin | 2 off |
02-226 | 2A0239 | Pin | 1 off |
02-234 | 2A0240 | Pin | 2 off |
02-236 | 2A0239 | Pin | 1 off |
02-404 | 2A0240 | Pin | 2 off |
02-406 | 2A0239 | Pin | 1 off |
02-414 | 2A0240 | Pin | 2 off |
02-416 | 2A0239 | Pin | 1 off |
02-424 | 2A0240 | Pin | 2 off |
02-426 | 2A0239 | Pin | 1 off |
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| TIG welding equipment | LOCAL | TIG welding equipment | ||
| Grinder, Hand held pneumatic | LOCAL | Grinder, Hand held pneumatic | ||
| Magnifying glass | LOCAL | Magnifying glass | 8X |
Consumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 03-204 WELDING FILLER WIRE | LOCAL | CoMat 03-204 |
Spares
NONESafety Requirements
NONEProcedure
Refer to Figure.
Refer to Figure.
Use a Grinder, Hand held pneumatic.
Cut out the pin.
SUBTASK 75-24-48-350-142 Cut Out the Pin
Refer to Cleaning-000 TASK 75-24-48-100-100.
Remove all the oxides, hydrocarbon, grit and scale from the surface to be welded and adjacent area by local cleaning.
SUBTASK 75-24-48-350-143 Remove all the Soil from the Surface
Refer to Figure.
Refer to Figure.
Refer to SPM TASK 70-31-02-310-501.
Weld the pin to the support by tungsten inert gas (TIG) weld.
Use a Grinder, Hand held pneumatic.
In contact area, remove excess weld and dress flush with adjacent area.
SUBTASK 75-24-48-350-144 Weld the Pin
Stress relieve at 1200 deg F plus or minus 25 deg F (649 deg C plus or minus 14 deg C) for one hour.
Heat treat the TCC tubes assemblies.
SUBTASK 75-24-48-310-081 Heat Treat the TCC Tube Assemblies
Refer to SPM TASK 70-23-05-230-501.
Penetrant examine the repaired area.
Use a 8x Magnifying glass.
Refer to Inspection-000 TASK 75-24-48-200-100.
Visually examine the repaired area.
SUBTASK 75-24-48-220-088 Examine the Welded Area for Cracks

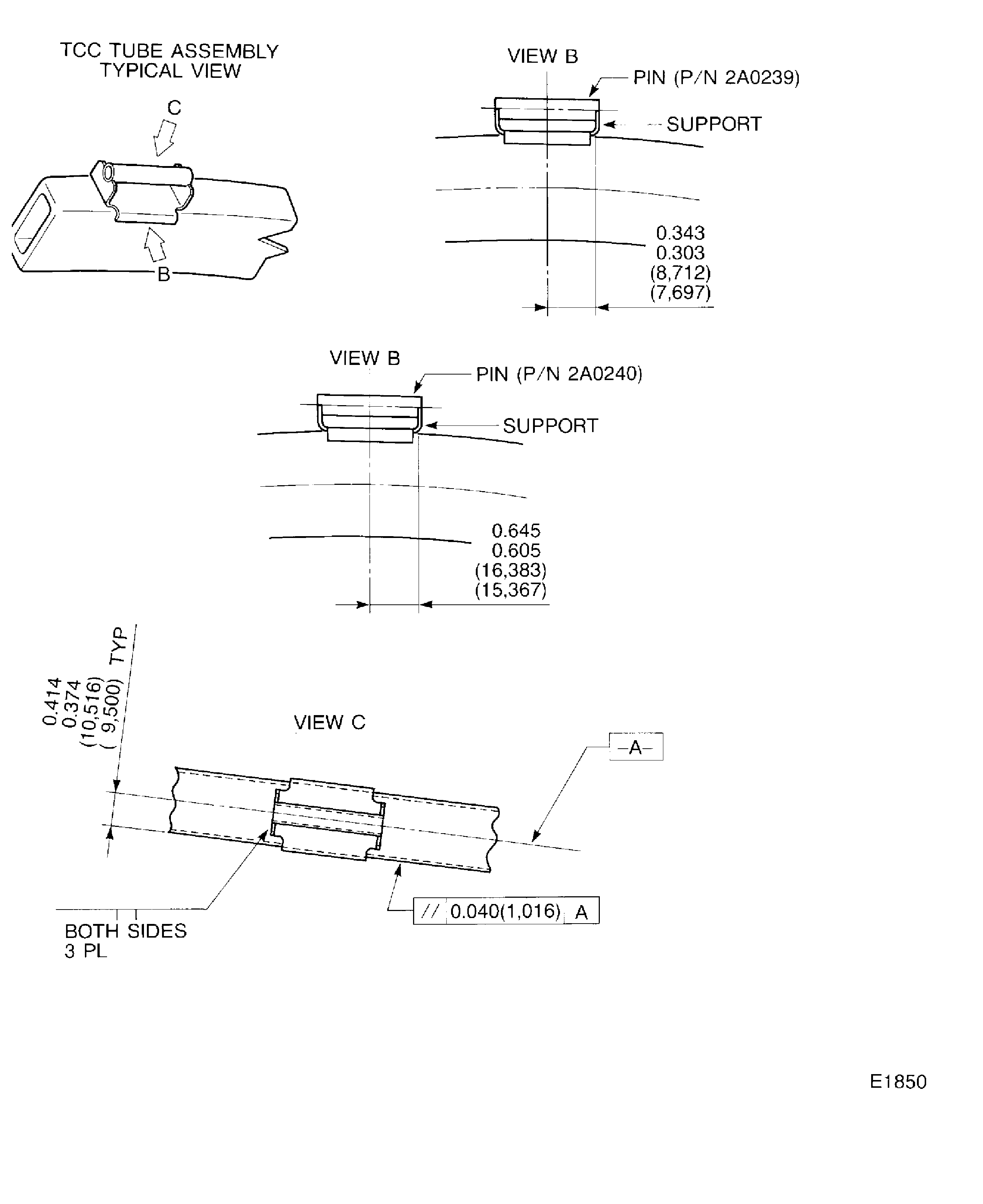

Figure: Replacement of the Pin
Replacement of the Pin
