TASK 75-24-49-300-003 LPT ACC Connector Air Tube - Blend Repair Surface Damage, Repair-003 (VRS4044)

DMC:V2500-A0-75-24-4901-00A-649A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 75-24-49-300-003 LPT ACC Connector Air Tube - Blend Repair Surface Damage, Repair-003 (VRS4044)

Effectivity

FIG/ITEM

PART NO.

01-010

3A0494

01-010

3A1549

Material of component

DESCRIPTION

RR SYMBOL

MATERIAL

Connector tube

TiCu2

General

Price and availability

Refer to IAE for any of these items.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

Related repairs - none

NOTE

Equivalent equipment may be used.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Illuminated comparator magnifierLOCALIlluminated comparator magnifier

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 75-24-49-350-053 General Instructions for the Blend Repair of the Connector Tube (01-010)

      1. Blend the nicks, dents or pits of the connector tube.

      1. Use files and stones to remove raised material.

      2. Polish the blended areas.

      1. Use fine stones to make the blended surface as smooth as the initial surface.

      2. Edges and corners are not permitted.

    2. SUBTASK 75-24-49-350-054 Blend the Connector Tube (01-010)

      NOTE

      Keep material removal to the minimum to remove damage.

    1. Refer to Figure.

      2. Blend repair in areas A1 and A2.

      1. No blend repair necessary.

      2. Remove raised material only.

      3. Blend repair the clamps.

      1. No blend repair necessary.

      2. Remove raised material only.

    3. SUBTASK 75-24-49-230-055 Examine the Connector Tube (01-010) for Cracks

      1. Do the test for cracks.

      1. Examine all blended areas.

      2. Refer to SPM TASK 70-23-05-230-501.

      3. No cracks are permitted.

    4. SUBTASK 75-24-49-220-074 Do the Post Repair Inspection of the Connector Tube (01-010)

      1. Examine the surface finish.

      2. The surface finish of all repairs must be as good as the surrounding areas.

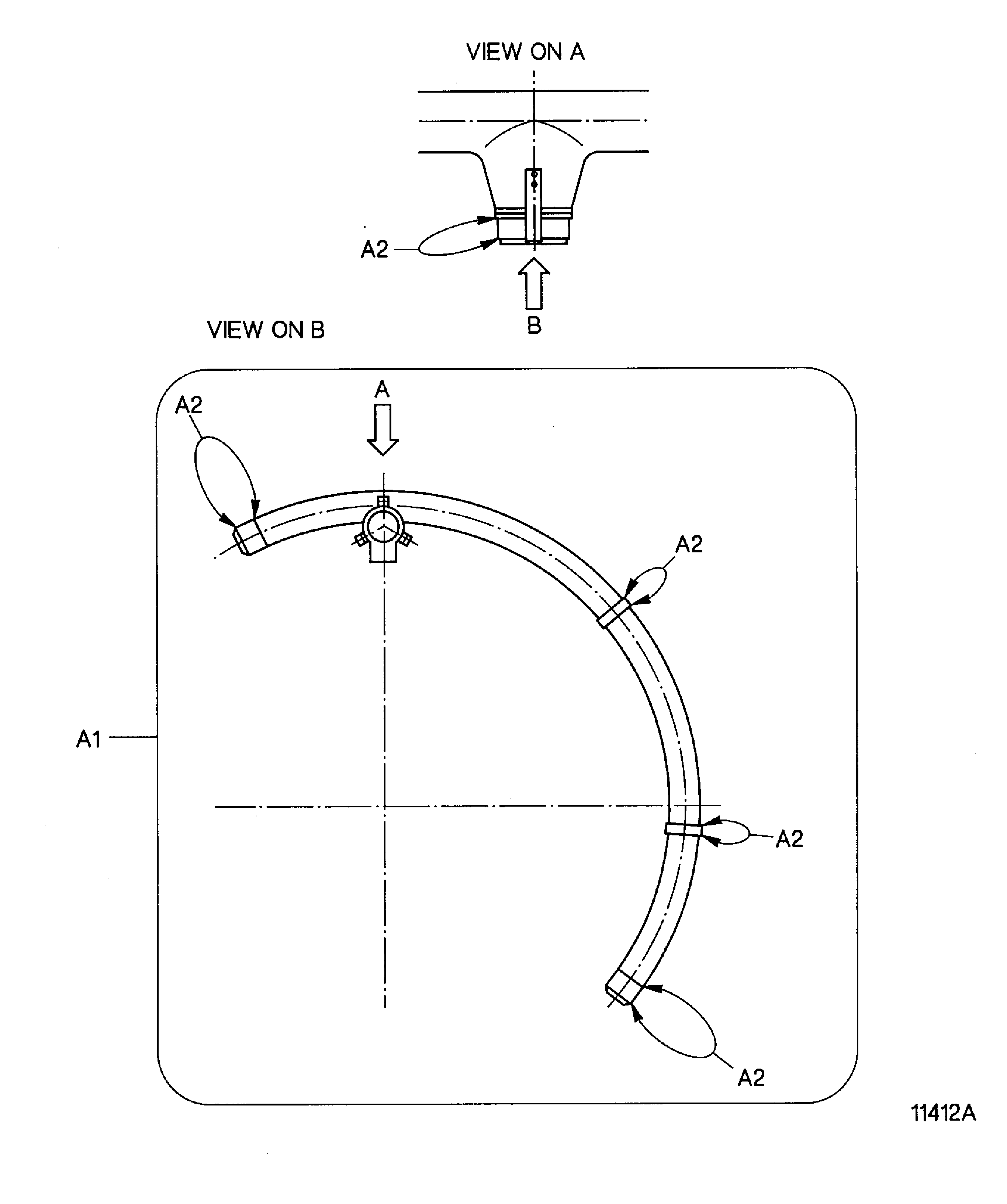

    5. Figure: Blend Repair of the Connector Tube

    Blend Repair of the Connector Tube

Requirements After Job Completion

Follow-On Conditions

NONE
Manufacturer Code:LOCAL
Enterprise Name:LOCALLY SUPPLIED
Manufacturer Code:LOCAL
Tool Number:Illuminated comparator magnifier
Tool Name:Illuminated comparator magnifier
