TASK 75-24-49-300-065 LPT ACC Connector Air Tube - Replace the Clip Nuts, Repair-065 (VRS4602)

DMC:V2500-A0-75-24-4901-08A-920A-C|Issue No:001.00|Issue Date:2020-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 75-24-49-300-065 LPT ACC Connector Air Tube - Replace the Clip Nuts, Repair-065 (VRS4602)

Effectivity

FIG./ITEM

PART NO.

01-010

3A3051

Material of Component

PART IDENT

IAE SYMBOL

MATERIAL

Connector tube

1.4544.9

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

Make sure that the necessary cleaning and inspection procedures are done before this repair.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
NUT-SELF LOCKING, ASSEMBLY OF, .190 DIA4W00432

Safety Requirements

NONE

Procedure

    1. SUBTASK 75-24-49-350-004 Replace the Clip Nuts

    1. Refer to Figure.

    2. Remove the clip nuts.

    3. Install the new clip nuts.

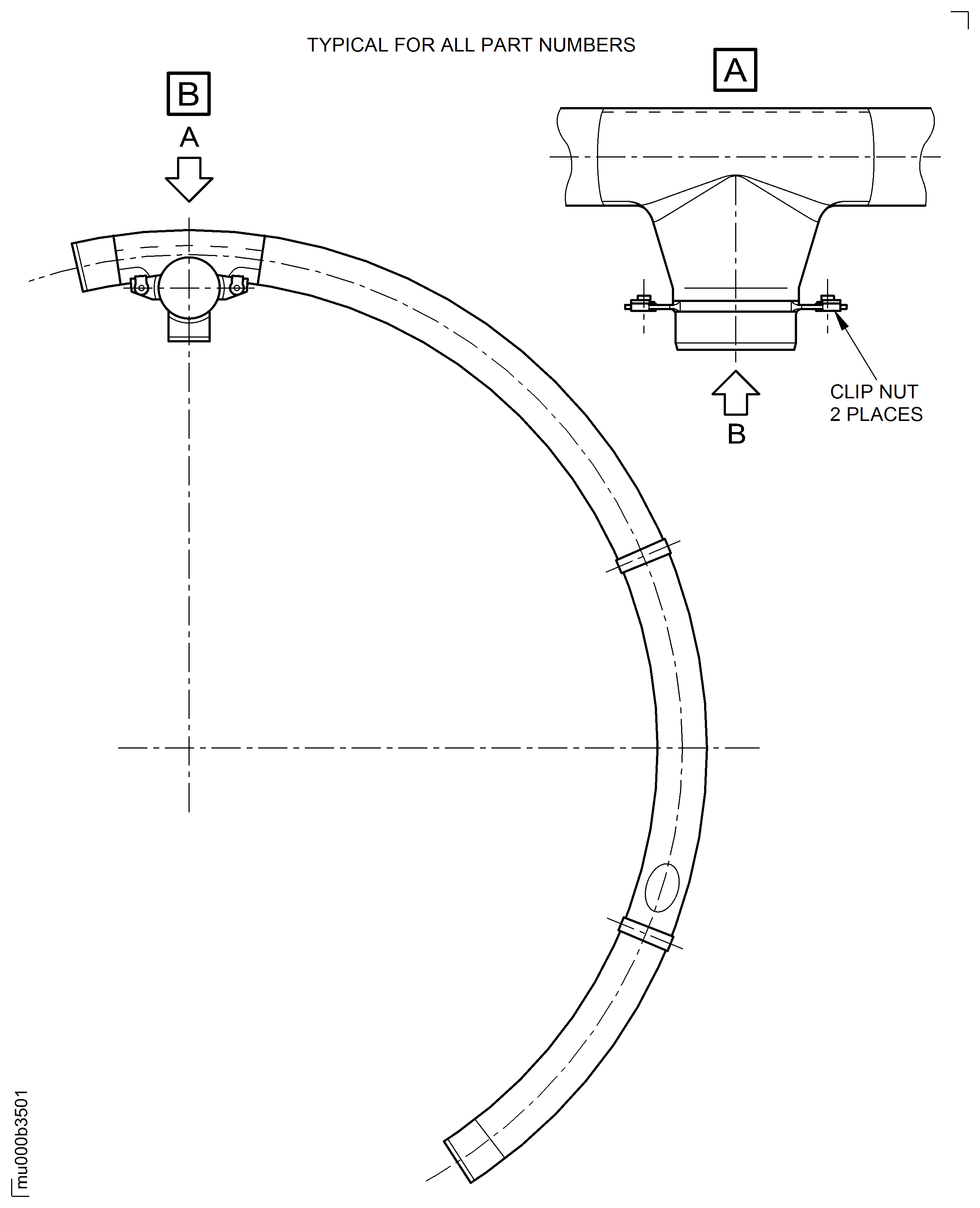

    2. Figure: Repair Details and Dimensions

    Repair Details and Dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
