TASK 75-24-49-300-002 LPT ACC Air Manifold and Ducts Remaining Parts - Blend Repair the Half Loop Clamp, Repair-002 (VRS4030)

DMC:V2500-A0-75-24-4920-00A-649A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 75-24-49-300-002 LPT ACC Air Manifold and Ducts Remaining Parts - Blend Repair the Half Loop Clamp, Repair-002 (VRS4030)

Effectivity

FIG/ITEM

PART NO.

02-590

3A0948

Material of component

DESCRIPTION

RR SYMBOL

MATERIAL

Half loop clamp

C 263

General

Price and availability

Refer to IAE for any of these items.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

Related repairs - none.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Illuminated comparator magnifierLOCALIlluminated comparator magnifier

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 75-24-49-350-051 General Instructions for the Blend Repair of the Half Loop Clamp (02-590)

      1. Blend the nicks, dents and pits of the clamp.

      1. Use files and stones to remove raised material.

      2. Polish the blended areas.

      1. Use fine stones to make the blended surface as smooth as the initial surface. Edges and corners are not permitted.

    2. SUBTASK 75-24-49-350-052 Blend Repair of the Half Loop Clamp (02-590)

      NOTE

      Keep material removal to the minimum to remove damage.

    1. Refer to Figure.

      2. Blend repair in areas A1 and A2.

      1. No blend repair necessary.

      2. Remove raised material only.

      3. Blend repair the holes.

      1. No blend repair necessary.

      2. Remove raised material only.

    3. SUBTASK 75-24-49-230-054 Examine the Half Loop Clamp (02-590) for Cracks

      1. Do the test for cracks.

      1. Examine all blended areas.

      2. Refer to the SPM TASK 70-23-05-230-501. No cracks are permitted.

    4. SUBTASK 75-24-49-220-073 Do the Post Repair Inspection of the Half Loop Clamp (02-590)

      1. Examine the surface finish.

      2. The surface finish of all repairs must be as good as surrounding areas.

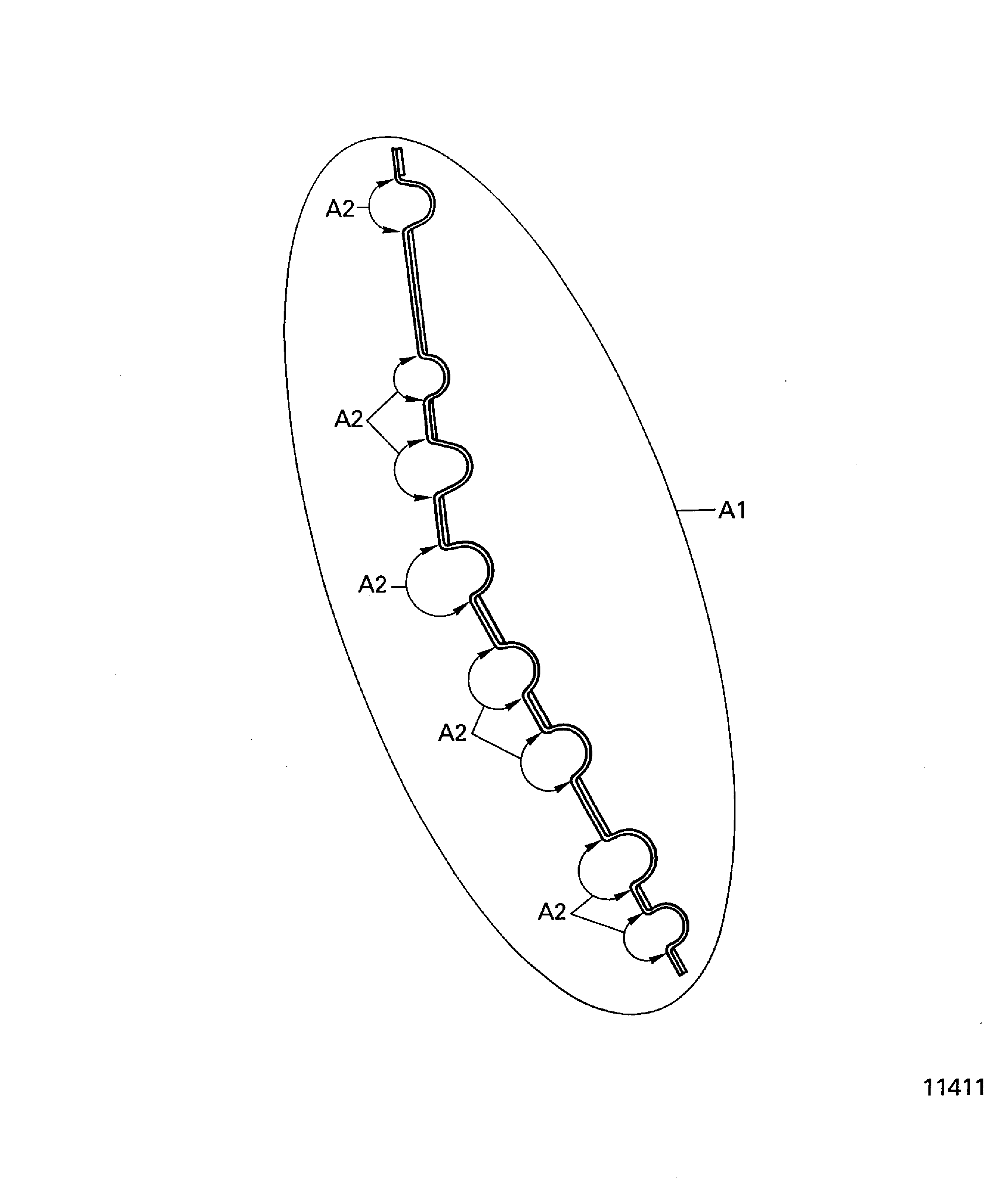

    5. Figure: Blend Repair of the Half Loop Clamp

    Blend Repair of the Half Loop Clamp

Requirements After Job Completion

Follow-On Conditions

NONE
