TASK 75-24-51-300-002 Active Clearance Control (ACC) Valve - Related Parts - Blend Repair The Bushings, Repair-002 (VRS1668)
General
Price and availability - none.
The practices and processes referred to in the procedure by the TASK number are in the SPM.
For the method to clean the parts, refer to Cleaning-000 TASK 75-24-51-100-400.
NOTE
To identify the consumable materials refer to the PCI.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 05-020 WATERPROOF SILICON CARBIDE | LOCAL | CoMat 05-020 | ||
| CoMat 05-021 WATERPROOF SILICON CARBIDE | 44197 | CoMat 05-021 |
Spares
NONESafety Requirements
NONEProcedure
Refer to Figure.
Use portable grinding equipment.
Dress until all damage is removed.
Dress to remove damage.
Refer to SPM TASK 70-35-03-300-501.
Refer to Figure.
Blend dressed area.
SUBTASK 75-24-51-350-052 Blend the Damaged Surface of the Bushes (01-190, 01-200, 01-210, 01-470 and 01-555)
Refer to Figure.
If the blended area exceeds the blend limit given in Fig Figure, reject the bushes.
Examine the repaired area of bushes.
Refer to Inspection-000 TASK 75-24-51-200-400.
Use 8X magnifying glass.
Visually examine the bushes.
SUBTASK 75-24-51-220-067 Examine the Bushes (01-190, 01-200, 01-210, 01-470 and 01-555)

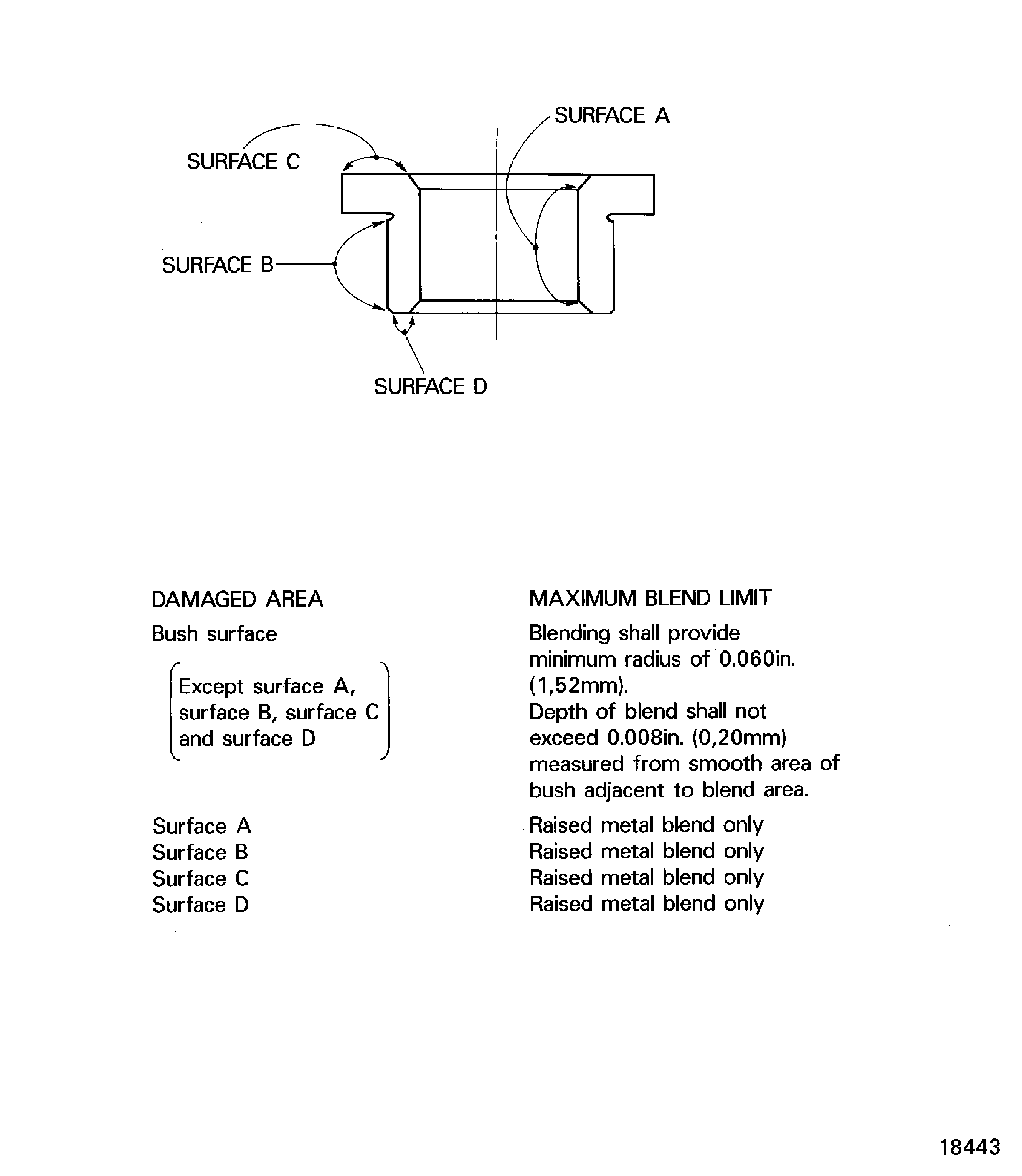

Figure: Blend Limit Of The Bushes
Blend Limit Of The Bushes
