TASK 75-31-43-300-001 LPC Bleed Slave Actuator - Related Parts - Blend Repair The Bracket, Repair-001 (VRS1680)
General
Price and availability - none
The practices and processes referred to in the procedure by the TASK numbers are in the SPM.
NOTE
To identify the consumable materials refer to the PCI.
For the method to clean the parts, refer to Cleaning-000 TASK 75-31-43-100-400.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 05-020 WATERPROOF SILICON CARBIDE | LOCAL | CoMat 05-020 | ||
| CoMat 05-021 WATERPROOF SILICON CARBIDE | 44197 | CoMat 05-021 |
Spares
NONESafety Requirements
NONEProcedure
Refer to Figure.
Use portable grinding equipment.
Dress until all damage is removed.
Dress to remove damage.
Refer to SPM TASK 70-35-03-300-501.
Refer to Figure.
Blend dressed area.
SUBTASK 75-31-43-350-051 Blend the Damaged Surface of the Bracket (01-090)
If the blended area is more than the blend limit given in Figure, reject the bracket.
Examine the repaired area of bracket.
Refer to Inspection-000 TASK 75-31-43-200-400.
Use 8X magnifying glass.
Visually examine the bracket.
SUBTASK 75-31-43-220-051 Examine the Bracket (01-090)

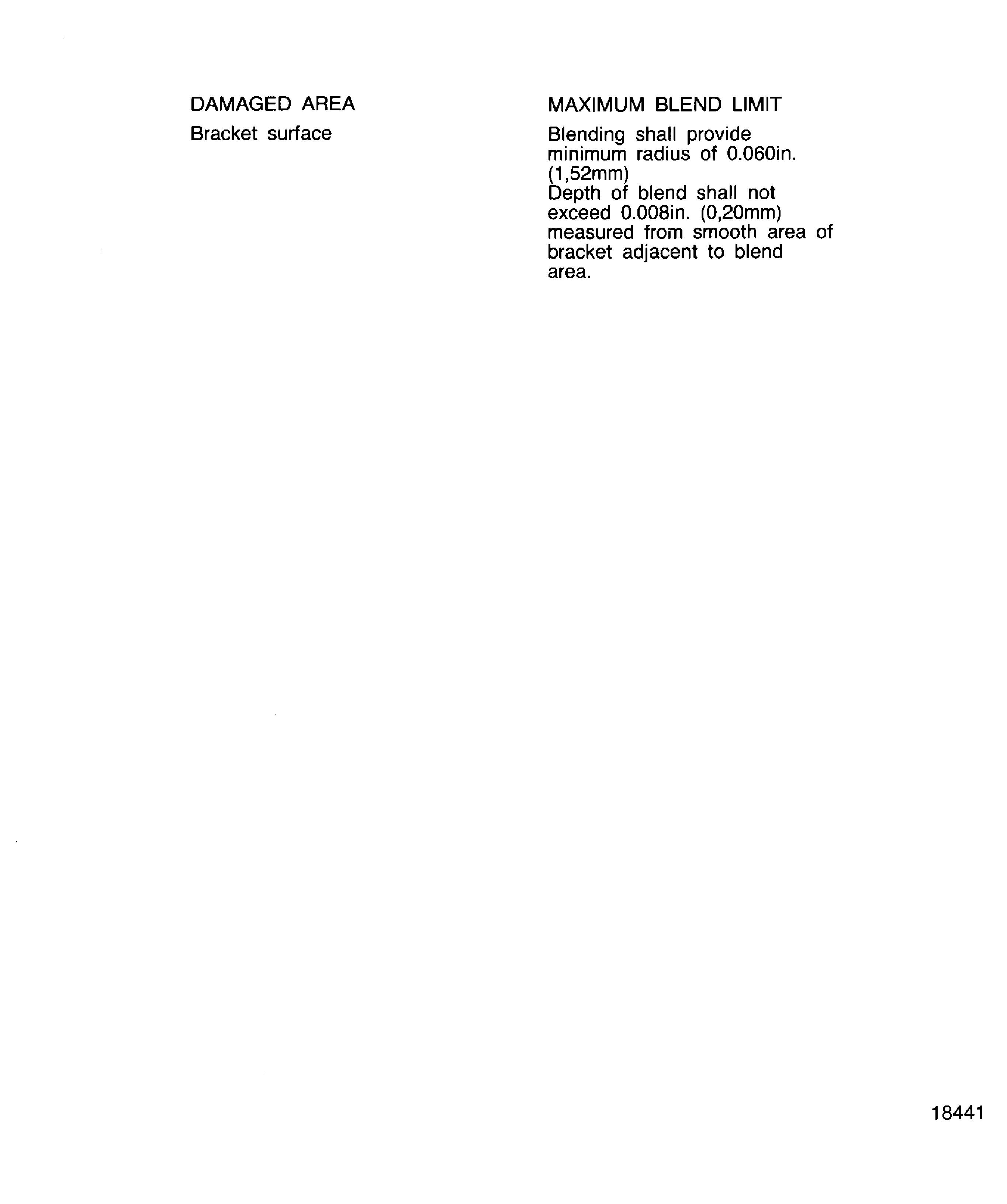

Figure: Blend Limit of the Bracket
Blend Limit of the Bracket
