TASK 75-31-43-300-005 LPC Bleed Slave Actuator - Related Parts - Repair The Worn Edge Corners Of Slots Of The BSBVA Slave Guide Assembly, Repair-005 (VRS1722)
General
The practices and processes referred to in the procedure by the TASK numbers are in the SPM.
NOTE
To identify the consumable materials refer to the PCI.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 05-019 WATERPROOF SILICON CARBIDE | LOCAL | CoMat 05-019 | ||
| CoMat 05-020 WATERPROOF SILICON CARBIDE | LOCAL | CoMat 05-020 | ||
| CoMat 05-021 WATERPROOF SILICON CARBIDE | 44197 | CoMat 05-021 |
Spares
NONESafety Requirements
NONEProcedure
Refer to Figure.
Use a honing stone or CoMat 05-019 WATERPROOF SILICON CARBIDE, CoMat 05-020 WATERPROOF SILICON CARBIDE and CoMat 05-021 WATERPROOF SILICON CARBIDE and/or a fine file to remove high metal.
Surface finish of the repair must be the same as the adjacent area. Refer to SPM TASK 70-35-03-300-501.
Make smooth and/or hand polish to remove the high metal from the worn edge corners of the slots.
SUBTASK 75-31-43-350-052 Remove the High Metal on the Worn Edge Corners of the Slots
CAUTION
TITANIUM COMPONENTS.SILICON CARBIDE TYPE WHEELS, STONES AND ABRASIVE PAPERS ARE TO BE USED FOR THIS REPAIR.ALUMINIUM OXIDE MUST NOT BE USED.THE MATERIAL WILL OXIDIZE AND CRACK IF MECHANICAL CUTTERS ARE USED HEAVILY. THIS HAS OCCURRED IF THE COMPONENT SHOWS DARK STRAW TO BLUE DISCOLORATION.Visually examine the repaired area for high metal.
Visually examine the repaired area.
SUBTASK 75-31-43-220-067 Examine the BSBVA Slave Guide Assembly

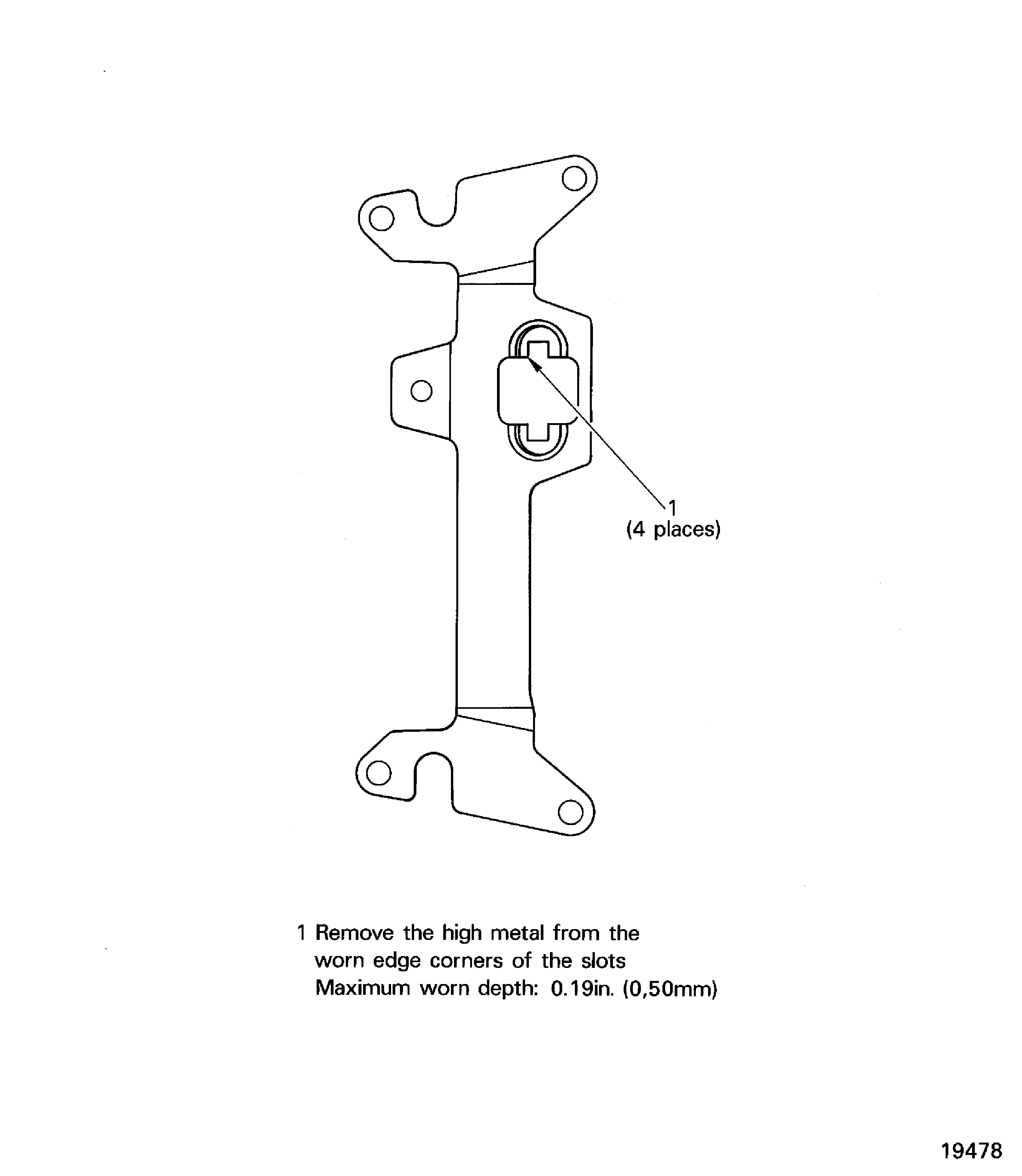

Figure: BSBVA Slave Guide Assembly - Repair Limit
BSBVA Slave Guide Assembly - Repair Limit
