TASK 75-32-49-300-001 HPC Bleed Control Air Tubes - Blend Repair Surface Damage, Repair-001 (VRS1681)
Effectivity
FIG/ITEM | PART NO. |
01-100 | 5A9043 |
01-500 | 5A9067 |
02-100 | 5A9068 |
02-100 | 6A5337 |
02-500 | 5A9139 |
02-500 | 6A6191 |
03-100 | 5A9147 |
03-500 | 5A9146 |
03-500 | 6A6194 |
04-100 | 5A9071 |
04-100 | 6A5330 |
04-500 | 5A8743 |
04-500 | 6A5331 |
05-100 | 5A8783 |
07-100 | 5A9148 |
07-500 | 5A9150 |
07-500 | 5A9079 |
08-100 | 6A5334 |
08-500 | 5A8746 |
08-500 | 6A5332 |
09-100 | 5A9140 |
09-500 | 5A9145 |
10-100 | 5A9074 |
10-500 | 5A8769 |
11-100 | 5A9149 |
11-500 | 5A9077 |
11-500 | 6A5338 |
12-100 | 5A8745 |
13-100 | 5A9044 |
13-100 | 6A2162 |
13-100 | 6A6005 |
13-500 | 5A8776 |
14-100 | 5A9046 |
14-100 | 6A2163 |
14-100 | 6A6013 |
14-500 | 5A8755 |
15-100 | 5A9306 |
15-100 | 6A6012 |
15-500 | 5A9050 |
15-500 | 6A6020 |
16-100 | 5A9307 |
16-100 | 6A6009 |
General
The practices and processes referred to in the procedure by the TASK numbers are in SPM.
Price and availability.
Refer to IAE for any of these items.
Tools.
Repair parts.
Repair of spares.
NOTE
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Fluorescent penetrant inspection equipment | LOCAL | Fluorescent Penetrant Inspection Equipment |
Consumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 05-020 WATERPROOF SILICON CARBIDE | LOCAL | CoMat 05-020 | ||
| CoMat 05-021 WATERPROOF SILICON CARBIDE | 44197 | CoMat 05-021 |
Spares
NONESafety Requirements
NONEProcedure
Use abrasive stone or CoMat 05-020 WATERPROOF SILICON CARBIDE and CoMat 05-021 WATERPROOF SILICON CARBIDE and/or fine file.
Surface finish of the repaired area must be the same as the adjacent area.
Refer to Figure and Figure. Refer to SPM TASK 70-35-03-300-501.
Make smooth and/or hand polish to remove the nicks, galls, scores and/or pick-up.
SUBTASK 75-32-49-350-051 Remove the Nicks, Galls, Scores and/or Pick-up from the Air Tube Assembly
Visually examine the repaired area for nicks, galls, scores and/or pick-up using 10X magnifying glass.
Refer to TASK 75-32-49-200-101 (INSPECTION-001).
Visually examine the repaired area.
SUBTASK 75-32-49-220-058 Examine the Air Tube Assembly
Make sure there are no cracks in the repaired area.
Refer to SPM TASK 70-23-05-230-501.
Fluorescent penetrant examine the repaired area.
SUBTASK 75-32-49-230-052 Examine the Air Tube Assembly for Cracks

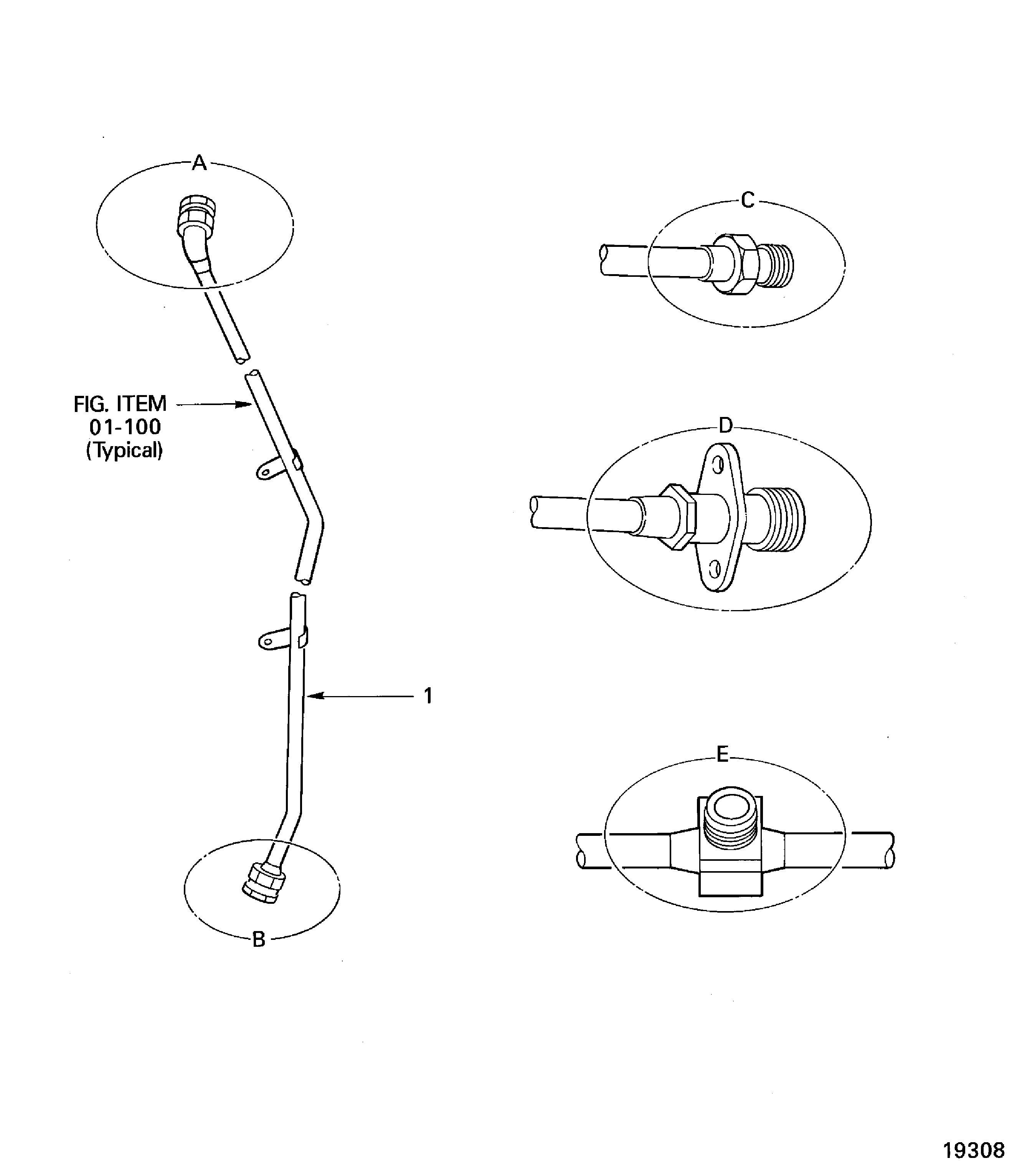

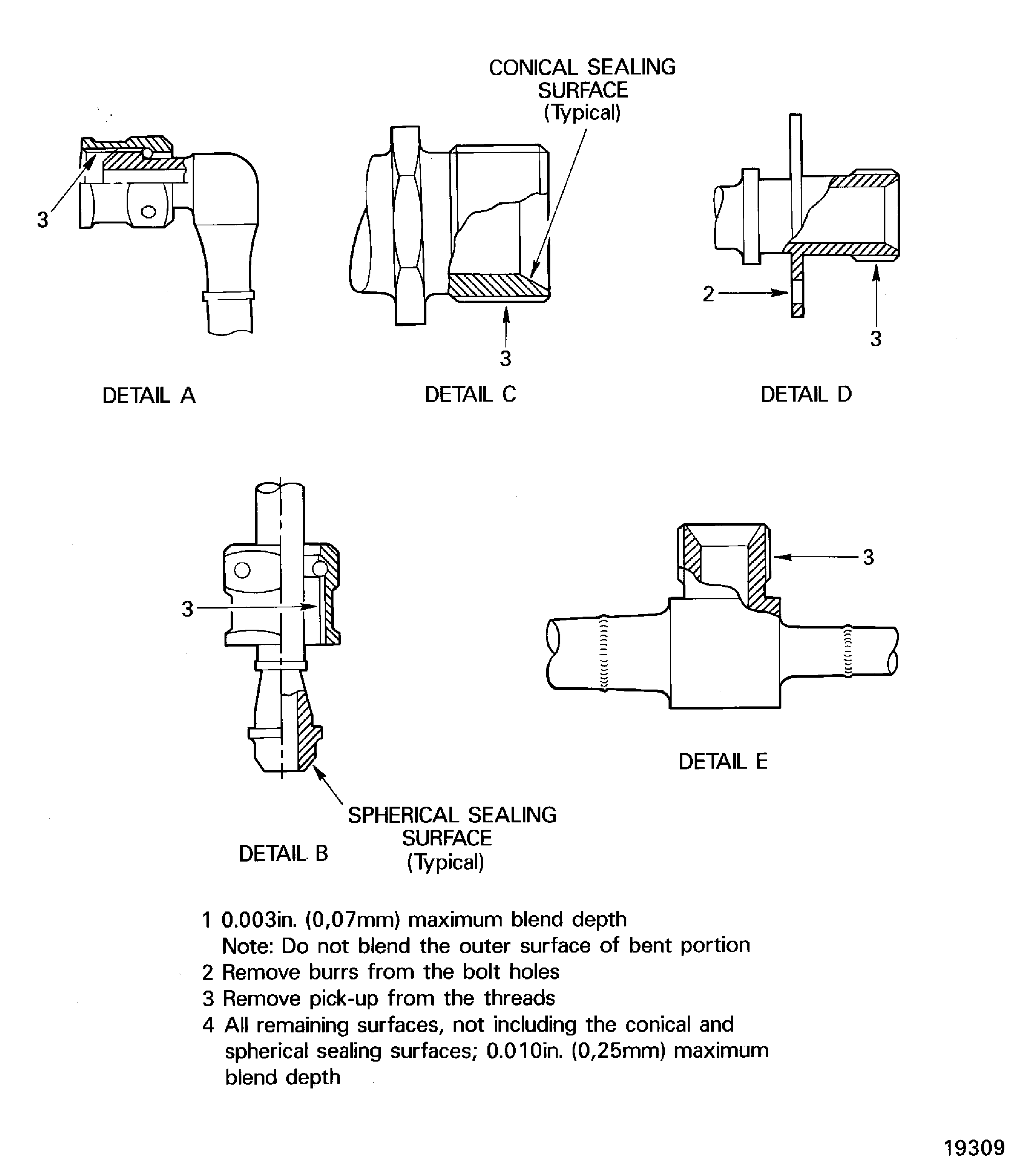

Figure: Repair Details and Dimensions
Repair Details and Dimensions
Repair Details and Dimensions
