TASK 79-11-41-300-001 Oil Tank - Related Parts - Repair The Surfaces Of The Static Deaerator, Repair-001 (VRS5206)
General
Price and availability - none.
The practices and processes referred to in the procedure by the TASK numbers are in the SPM.
NOTE
To identify the consumable materials refer to the PCI.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 02-140 TRIANGULAR INDIA STONE, FINE GRIT | LOCAL | CoMat 02-140 |
Spares
NONESafety Requirements
NONEProcedure
Refer to Figure.
Refer to SPM TASK 70-35-03-300-501.
Hand polish and blend. The maximum depth of the blending is 0.037 in. (0.94 mm).
Refer to Repair, VRS5207 (Repair-002) TASK 79-11-41-300-002.
Repair the surface protection.
SUBTASK 79-11-41-350-051 Repair the Rough Surfaces - Location 1
Refer to Figure.
Refer to SPM TASK 70-35-03-300-501.
Hand polish and blend. The maximum depth of the blending is 0.005 in. (0.13 mm).
Seal surfaces - location 2.
Refer to SPM TASK 70-35-03-300-501.
Hand polish and blend. The maximum depth of the blending is 0.01 in. (0.25 mm).
Not seal surfaces - location 3.
SUBTASK 79-11-41-350-052 Repair the Machined Surfaces

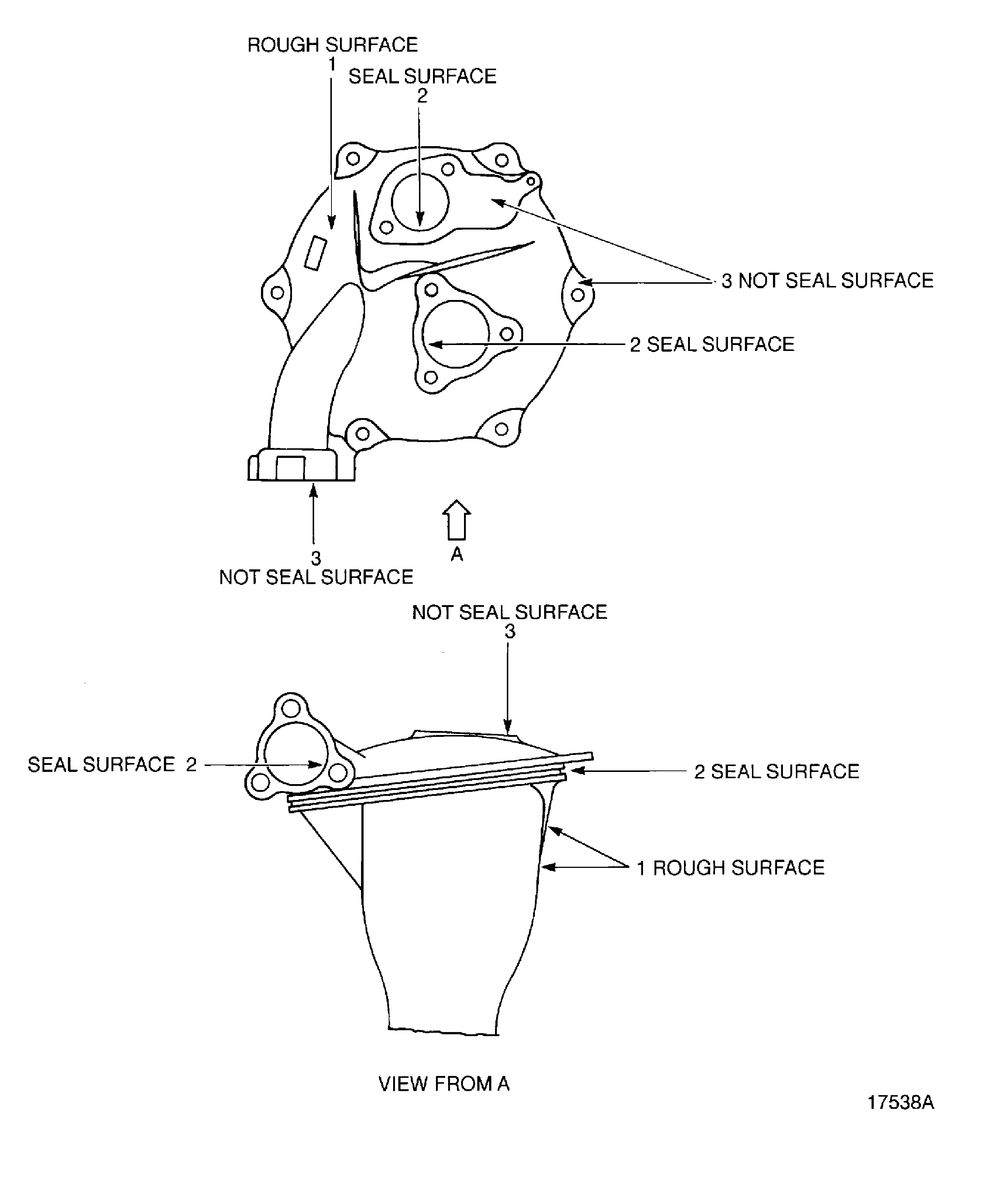

Figure: Repair Details And Dimensions
Repair Details And Dimensions
