TASK 79-11-41-300-017 Oil Tank - Related Parts - Nickel Plate The Piloting Diameter Of The Cover Assembly, Repair-017 (VRS5218)

DMC:V2500-A0-79-11-4100-02A-647A-C|Issue No:001.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 79-11-41-300-017 Oil Tank - Related Parts - Nickel Plate The Piloting Diameter Of The Cover Assembly, Repair-017 (VRS5218)

Effectivity

FIG/ITEM

PART NO.

01-410

4B7250

Material of component

DESCRIPTION

RR SYMBOL

MATERIAL

Cover Assembly

AMS 5645

General

NOTE

To identify the consumable materials, refer to the PCI.

Price and availability - none.

The practices and processes referred to in the procedure by the TASK number are in the SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Workshop Inspection EquipmentLOCALWorkshop Inspection Equipment
Grinding MachineLOCALGrinding Machine
FPI inspection stationLOCALFPI inspection station
BasketLOCALBasket
Process Plating TanksLOCALProcess Plating Tanks
OvenLOCALOven
Magnifying glassLOCALMagnifying glass

4X

Vibrating marking pencilLOCALVibrating marking pencil

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-067 STRIPPABLE COATING71410CoMat 02-067

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 79-11-41-320-053 Machine the Piloting Diameter of the Cover Assembly

    1. Refer to Figure.

      2. Machine the piloting diameter.

      1. Remove all damage and wear. The piloting diameter must be between 2.9896 and 2.9841 in. (75.936 and 75.796 mm) after the removal of the damage.

      2. Keep the removal of the material to the minimum necessary to remove the damage.

    2. SUBTASK 79-11-41-230-065 Examine the Cover Assembly

      1. Do the fluorescent penetrant inspection for cracks.

      1. Refer to SPM TASK 70-23-01-230-501.

      2. Cracks are not permitted.

    3. SUBTASK 79-11-41-330-063 Nickel Plate the Piloting Diameter of the Cover Assembly

    1. Refer to Figure.

      2. Apply masking to the areas of the cover assembly not to be plated.

      3. Do the nickel plating.

      1. Refer to SPM TASK 70-33-08-300-503. Plate to a sufficient thickness to permit machining to the last dimensions indicated in the reference figure.

      2. Plating external to the piloting diameter area is permitted, but must be removed.

    4. Remove the mask.

      5. Clean and dry the cover assembly.

      1. Flush with cold water.

      2. Flush with hot water.

      3. Dry with air blast.

    4. SUBTASK 79-11-41-370-052 De-embrittle the Cover Assembly

      1. Put the cover assembly into an oven at 241 to 260 deg F (116 to 127 deg C) for 60 to 90 minutes.

      1. Do this procedure as soon as possible, in less than 4 hours, after plating.

    5. SUBTASK 79-11-41-220-116 Examine the Cover Assembly

      1. Do a visual inspection of the plating for finish, cracks and adhesion.

      1. Plating must have a constant color. No circumferential cracks are permitted.

      2. No roughness or blistering is permitted.

    6. SUBTASK 79-11-41-320-054 Machine the Piloting Diameter of the Cover Assembly

    1. Refer to Figure.

      2. Machine the piloting diameter.

      1. The dimension must be between 2.9919 to 2.9899 in. (75.996 to 75.946 mm).

      2. Chamfer, where necessary.

    7. SUBTASK 79-11-41-220-117 Examine the Nickel Plated Area

    1. Refer to Figure.

      2. Do the visual inspection of the plated area for cracks and adhesion.

      2. The natural network crack, shown by grinding is permitted.

      3. Measure the thickness of the plating.

      1. Do not accept a thickness of less than 0.0006 in. (0.015 mm), after the last machining is not permitted.

    8. SUBTASK 79-11-41-350-068 Record the Repair

    1. Refer to Figure.

      2. Vibro-engrave VRS5218 adjacent to the part number.

      2. Remove the metal lifted by marking.

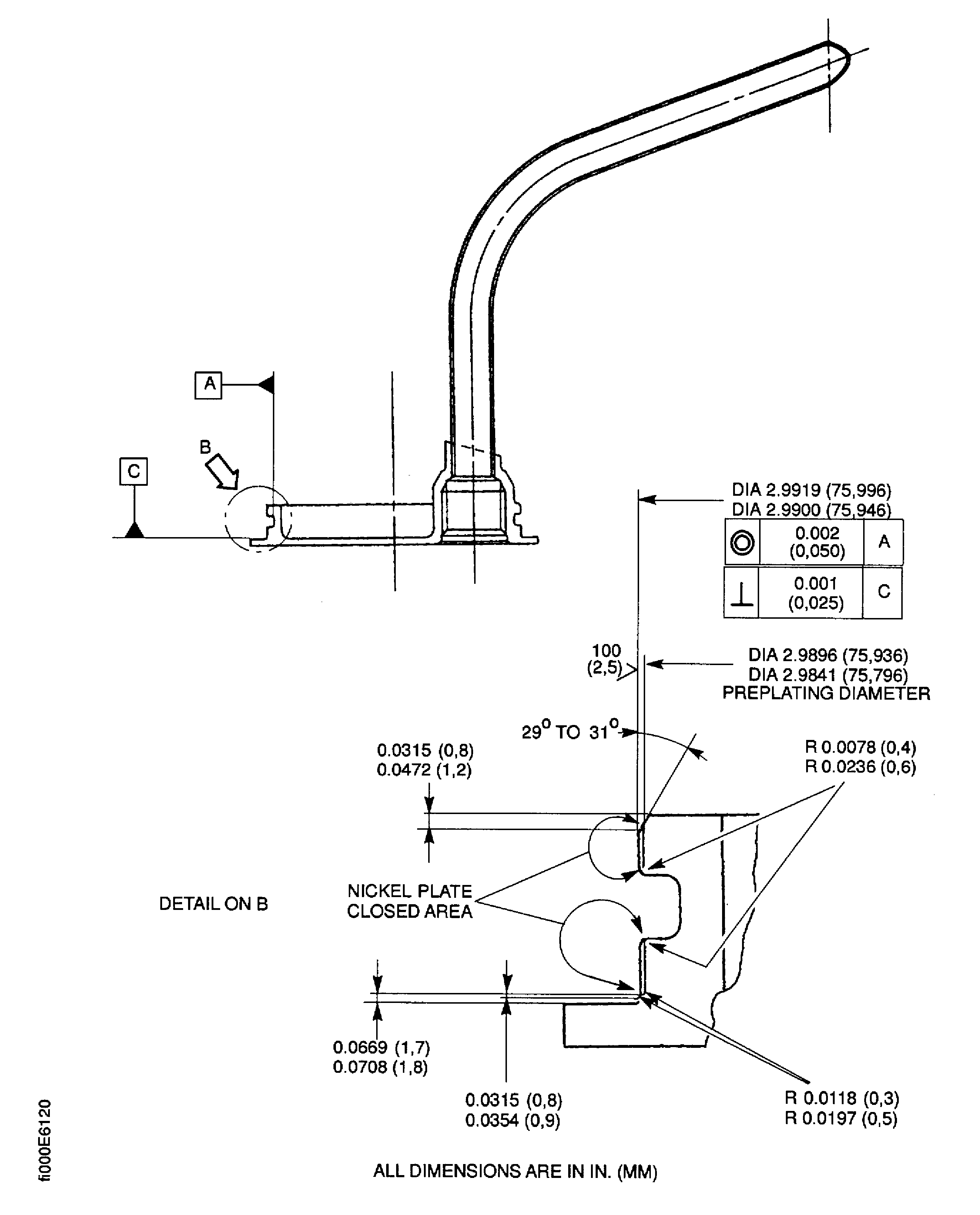

    9. Figure: Repair details and Dimensions

    Repair details and Dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
