TASK 79-11-41-300-030 Oil Tank - Related Parts - Nickel Plate The Piloting Diameter Of The Oil Tank Assembly, Repair-030 (VRS5235)

DMC:V2500-A0-79-11-4100-06A-647A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 79-11-41-300-030 Oil Tank - Related Parts - Nickel Plate The Piloting Diameter Of The Oil Tank Assembly, Repair-030 (VRS5235)

Effectivity

FIG/ITEM

PART NO.

01-860

4B7030

01-860

4B7195

01-860

4B7244

Material of component

PART IDENT

SYMBOL

MATERIAL

Oil Tank Assembly

A357-T61 (AMS 4219)

General

Price and availability - none.

The practices and processes referred to in the procedure by the TASK number are in the SPM.

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Workshop Inspection EquipmentLOCALWorkshop Inspection Equipment
Grinding MachineLOCALGrinding Machine
FPI inspection stationLOCALFPI inspection station
BasketLOCALBasket
Process Plating TanksLOCALProcess Plating Tanks
OvenLOCALOven
Magnifying glassLOCALMagnifying glass

4X

Vibrating marking pencilLOCALVibrating marking pencil

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-067 STRIPPABLE COATING71410CoMat 02-067

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 79-11-41-320-062 Machine the Piloting Diameter of the Oil Tank Assembly

    1. Refer to Figure.

      2. Machine the piloting diameter.

      1. Remove all damage and wear.

      2. The piloting diameter must be between 7.0838 and 7.0783 in. (179.930 and 179.790 mm) after the removal of the damage.

      3. Keep the removal of the material to the minimum necessary, to remove the damage.

    2. SUBTASK 79-11-41-230-070 Examine the Oil Tank Assembly

      1. Do the fluorescent penetrant inspection for cracks.

      1. Refer to SPM TASK 70-23-01-230-501.

      2. No cracks are permitted.

    3. SUBTASK 79-11-41-330-068 Nickel Plate the Piloting Diameter of the Oil Tank Assembly

    1. Refer to Figure.

      2. Mask the areas of the oil tank assembly not to be plated.

      3. Do the nickel plating.

      1. Refer to SPM TASK 70-33-08-300-503.

      2. Plate to a sufficient thickness to permit machining to the last dimensions indicated in the reference figure.

      3. The plating out of the piloting diameter area is permitted, but must be removed.

    4. Remove the mask.

      5. Clean and dry the oil tank assembly.

      1. Flush with cold water.

      2. Flush with hot water.

      3. Dry with air blast.

    4. SUBTASK 79-11-41-370-057 De-embrittle the Oil Tank Assembly

      1. Put the oil tank assembly into an oven at 241 to 260 deg F (116 to 127 deg C) for 60 to 90 minutes.

      1. Do this procedure as soon as possible, in less than 4 hours, after plating.

    5. SUBTASK 79-11-41-220-125 Examine the Oil Tank Assembly

      1. Do the visual inspection of the plating for finish, cracks and adhesion.

      1. Plating must have a constant color.

      2. No circumferential cracks are permitted.

      3. No rough or blistering are permitted.

    6. SUBTASK 79-11-41-320-063 Machine the Piloting Diameter of the Oil Tank Assembly

    1. Refer to Figure.

      2. Machine the piloting diameter.

      1. Machine the piloting diameter, the dimension must be between 7.0862 to 7.0842 in. (179.990 to 179.940 mm).

      2. Chamfer, where necessary.

    7. SUBTASK 79-11-41-220-126 Examine the Nickel Plated Area

    1. Refer to Figure.

      2. Do the visual inspection of the plated area for cracks and adhesion.

      2. The natural network crack, emphasized by grinding is permitted.

      3. Measure the thickness of the plating.

      1. Do not accept a thickness of less than 0.0006 in. (0.015 mm), after the last machining.

    8. SUBTASK 79-11-41-350-073 Record the Repair

    1. Refer to Figure.

      2. Vibro-engrave VRS5235 adjacent to the part number.

      2. Remove the metal lifted by marking.

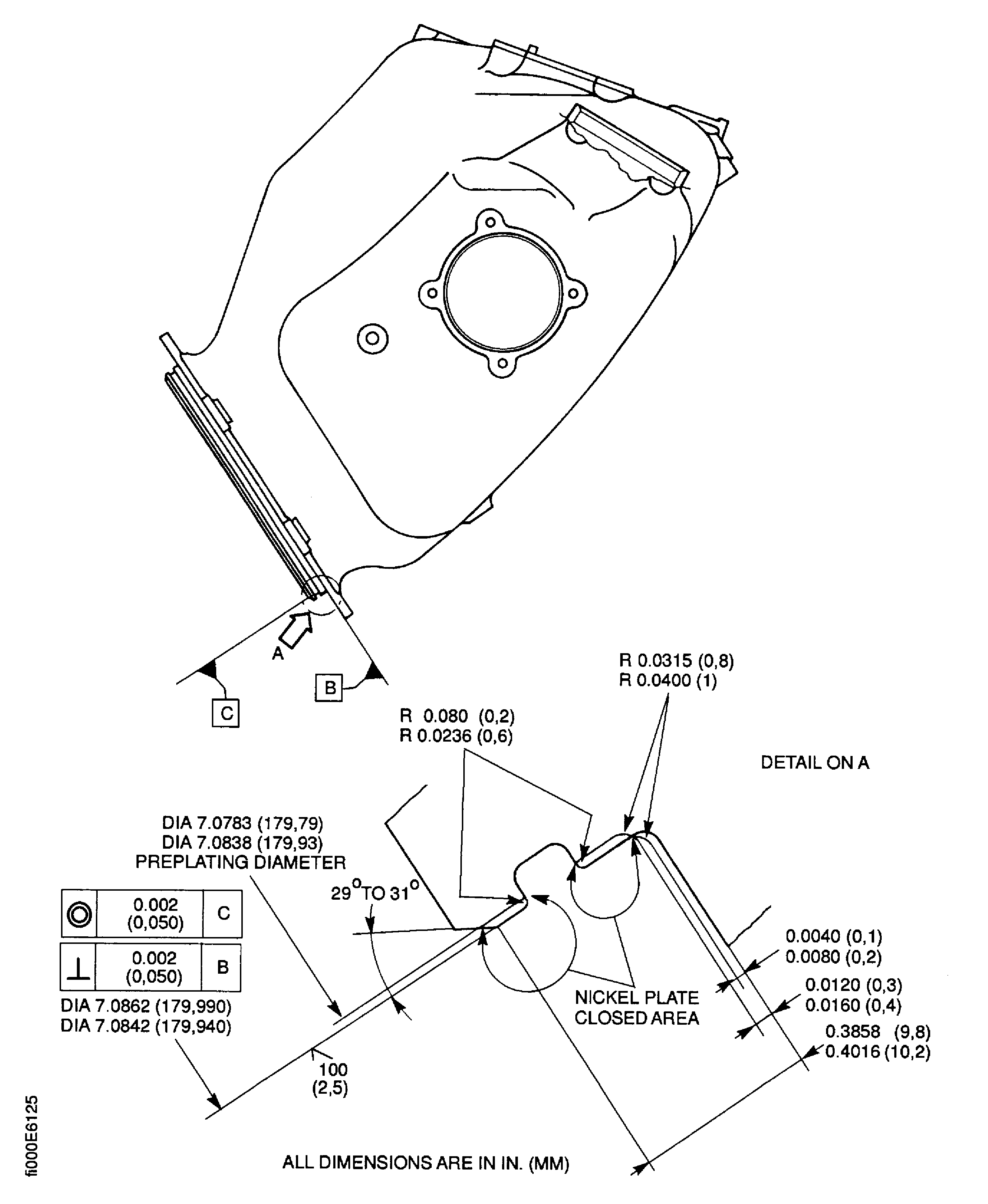

    9. Figure: Repair Details And Dimensions

    Repair Details And Dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
