Common Information
TASK 79-21-41-300-007 Oil Pressure Pump/Filter Housing - Related Parts - Replace The Damaged Studs In The Oil Pump Casing Assembly, Repair-007 (VRS5307)
Repair parts
FIG/ITEM | PART NO. | PART IDENT | QTY |
01-842 | MS51997E103P | Ring, locking | A/R |
01-843 | MS51997E104103P | Ring, locking (oversized) | A/R |
01-843 | RLR1997E104103 | Ring (oversize) | A/R |
01-844 | MS51992C80313 | Stud | A/R |
General
Price and availability - none.
The practices and processes referred to in the procedure by the TASK numbers are in the SPM.
Tools for removal and installation may be purchased from ROSAN Inc., 2901 West Coast Highway, Newport Beach, California 92663.
NOTE
NOTE
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Removal tool | LOCAL | SM101-18 | ||
| Wrench | LOCAL | R1105W | ||
| Drive Tool | LOCAL | SF5902-3D |
Consumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 10-048 LUBRICANT | 0AM53 | CoMat 10-048 |
Spares
NONESafety Requirements
NONEProcedure
Refer to Figure.
Use Removal tool.
Lower over the shank, and starting motor.
Cut off the stud if too long for Removal tool.
Keep sufficient shank length to give pilot for the Removal tool over the shank and starting motor.
Install the Removal tool in the drill press chuck.
Lift the tool frequently to permit the cutting teeth to be clear from chips.
It is not necessary to mill fully through the lock ring.
Start the motor and mill the lock ring to remove serration interlock.
SUBTASK 79-21-41-320-051 Mill the Lock Ring
Use Wrench.
Continuous pressure of withdrawn stud should cause lock ring to be forced out from its location.
Break with a punch and remove the remaining portion of lock ring if it has been milled fully through and it does not lift out with the stud.
Apply removal torque to the stud.
Complete the removal of the stud.
SUBTASK 79-21-41-350-090 Remove the Stud
Refer to Figure.
Machine the diameter to 0.449 to 0.459 in. (11.404 to 11.659 mm).
The depth must be 0.122 to 0.137 in. (3.10 to 3.48 mm).
Machine the oversized diameter of the lock ring seat.
SUBTASK 79-21-41-320-055 Machine the Oversized Diameter of the Lock Ring Seat
Refer to SPM TASK 70-23-05-230-501.
Cracks are not permitted.
NOTE
Do this subtask only if you have machnined the oversized diameter.Do a local fluorescent penetrant test for cracks in the machined area.
SUBTASK 79-21-41-330-078 Examine the Machined Area
Refer to Figure.
Refer to SPM TASK 70-38-02-300-503.
Apply the anodic treatment to the machine oversized diameter of the lock ring seat.
SUBTASK 79-21-41-330-058 Apply the Anodic Treatment to the Machine Oversized Diameter of the Lock Ring Seat
Refer to Figure.
Lubricate the coarse threaded stud end.
Use Wrench.
The depth must be 0.010 to 0.020 in. (0.254 to 0.508 mm).
Stud must be perpendicular to flat surface of relevant flange within 0.014 in. (0.35 mm) each 4 in. (101.60 mm).
Install the stud in the hole.
SUBTASK 79-21-41-350-089 Install the New Stud
Refer to Figure.
Align the external serrations of the new lock ring with those in parent material of the housing.
Install the new lock ring.
Use Drive Tool. The depth must be 0.005 to 0.010 in. (0.127 to 0.254 mm).
Install the new lock ring.
SUBTASK 79-21-41-350-088 Install the New Lock Ring
Do the touch up process if the anodic treatment has been damaged by stud installation.
Refer to SPM TASK 70-38-02-300-503.
Check the surface.
SUBTASK 79-21-41-330-055 Restore the Damaged Anodic Treatment

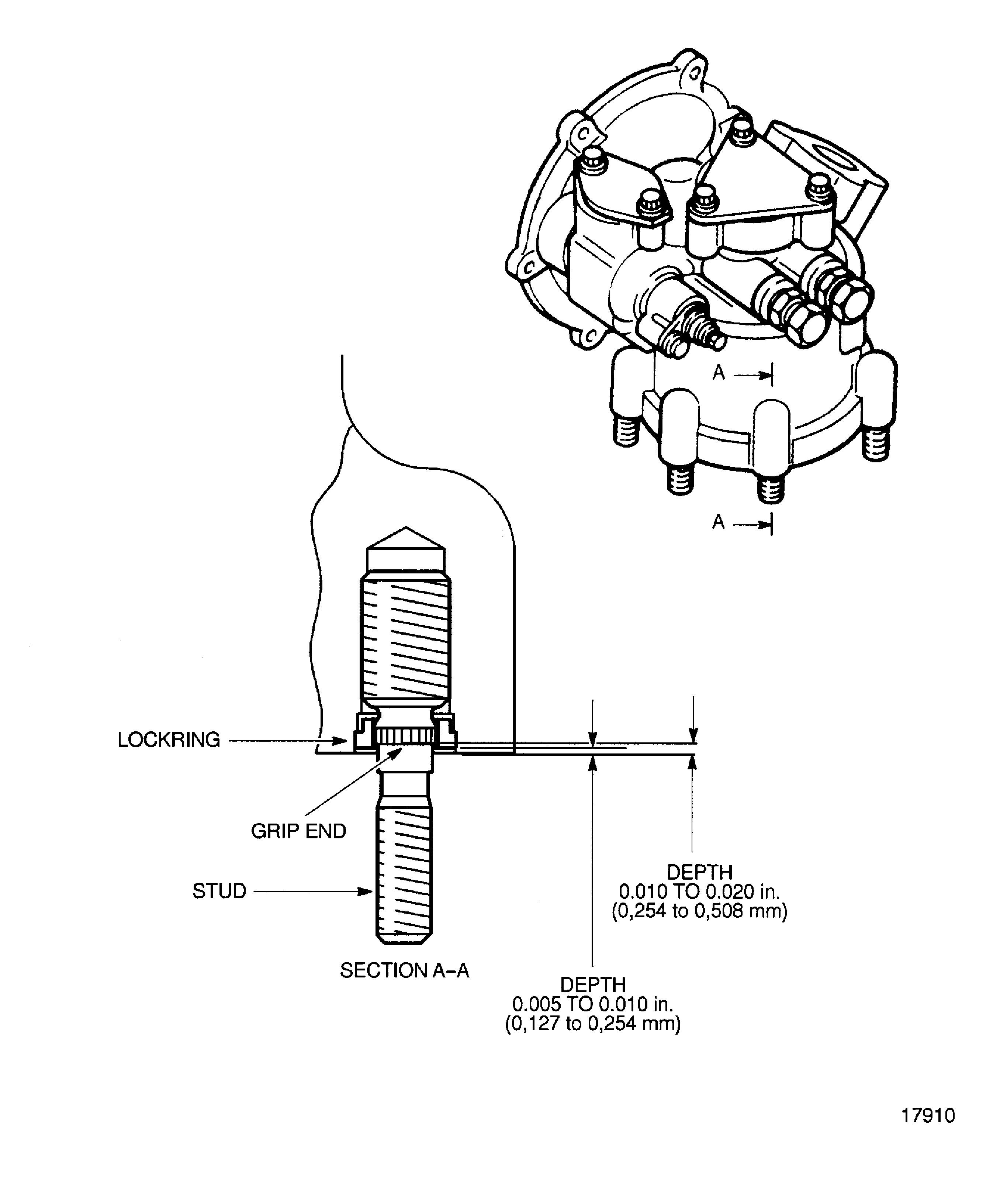

Figure: Repair Details And Dimensions
Repair Details And Dimensions

Figure: Repair Details And Dimensions
Repair Details And Dimensions
