TASK 79-21-41-300-016 Oil Pressure Pump/Filter Housing - Related Parts - Repair The Flange Locating Seat By Bushing In The Oil Pressure Pump, Repair-016 (VRS5316)

DMC:V2500-A0-79-21-4100-02A-664A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 79-21-41-300-016 Oil Pressure Pump/Filter Housing - Related Parts - Repair The Flange Locating Seat By Bushing In The Oil Pressure Pump, Repair-016 (VRS5316)

Effectivity

FIG./ITEM

PART NO.

01-750

4A7089

01-750

4A7099

01-750

4A7304

Material of component

PART IDENT

SYMBOL

MATERIAL

Oil pressure pump

-

A357-T61 (AMS 4219)

Bushing

-

AA2024-T3 (AMS 4152K)

General

Price and availability - none.

The practices and processes referred to in the procedure by the TASK number are in the SPM.

NOTE

To identify the consumable materials refer to the PCI.

Repair Parts

FIG/ITEM

PART NO

PART IDENT

QTY

01-834

4L7008

Bushing

1

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Workshop Inspection EquipmentLOCALWorkshop Inspection Equipment
Grinding MachineLOCALGrinding Machine
Magnifying glassLOCALMagnifying glass
OvenLOCALOven
FreezerLOCALFreezer
Arbor PressLOCALArbor press
Vibro-engraving materialsLOCALVibro-engraving materials

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 79-21-41-320-070 Machine the Flange Locating Seat in the Oil Pressure Pump

    1. Refer to Figure.

      2. Machine the outlet tube locating seat.

      1. The diameter of the bore must be between 0.7858 and 0.7874 in. (19.960 and 20.000 mm) after removal of the damage.

      2. The true position of the bore must be within 0.040 in. (0.100 mm) FIR in relation to diameter C index 2.

      3. Bore surface rough must be 63 micro in. (1.6 micron).

    2. SUBTASK 79-22-41-220-166 Examine the Flange Locating Seat

      1. Inspect the pressure pump for cracks in locality of the flange locating seat.

    3. SUBTASK 79-21-41-330-068 Apply the Chromate Conversion Coating

      1. Apply the chromate conversion coating to the machined surfaces.

      1. Refer to SPM TASK 70-38-02-300-503.

    4. SUBTASK 79-21-41-350-074 Install the Bushing

    1. Refer to Figure.

    2. CAUTION

      MAKE SURE THAT THE LEAD IN CHAMFER OF THE BUSHING POINTS AWAY FROM THE DRIFT.

      Install the bushing to drift.

      3. WARNING

        DO NOT TOUCH THE HOT PARTS WITHOUT PROTECTIVE GLOVES.

        WARNING

        HOT PARTS CAN CAUSE REDDENING AND BLISTERING OF THE SKIN IF THE HANDS ARE NOT PROTECTED.

        WARNING

        IMMERSE THE CONTACTED AREA IN COLD WATER FOR 10 MINUTES IF THE SKIN IS BURNED. IMMEDIATELY GET THE MEDICAL ATTENTION IF PAIN OR BLISTERING PERSISTS.

        Increase the temperature of the pressure pump and/or decrease the temperature of the assembled drift and bushing.

      1. Use an Oven and/or a Freezer.

      2. Do not increase the temperature of the pressure pump above 284 deg F (140 deg C).

      3. Do not decrease the temperature of the assembled drift and bushing below minus 58 deg F (minus 50 deg C).

        NOTE

        The difference in temperature between the parts must be 248 deg F (120 deg C).

      4. Remove the pressure pump from the oven and/or the assembled drift and bushing from freezer.

      1. Use protective gloves.

      5. CAUTION

        INSTALL BUSHING IN MACHINED BORE IMMEDIATELY AFTER REMOVAL FROM FREEZER, OTHERWISE BUSHING CANNOT BE CORRECTLY INSTALLED

        Install the bushing into machined bore.

      1. Use drift and an Arbor Press.

      2. Give sufficient back-up support at bushing bore area to prevent pressure pump distortion when you install the bushing.

    6. Let the parts get the room temperature.

    7. Remove the drift.

    5. SUBTASK 79-21-41-320-071 Machine the Inner Diameter of the Bushing

    1. Refer to Figure.

      2. Machine the inner diameter of the bushing.

      1. The last dimension of the inner diameter must be between 0.630 and 0.6315 in. (16.000 and 16.0400 mm).

      2. The true position of the diameter must be within 0.0020 in. (0.050 mm) FIR in relation to diameter C, index 2 and 0.0138 in. (0.350 mm) FIR in relation to holes B, index 1.

      3. The perpendicularity of the diameter must be within 0.0020 in. (0.050 mm) FIR in relation to surface H, index 12.

      4. Bore surface rough must be 63 micro in. (1.6 micron).

      5. Chamfer where necessary.

    6. SUBTASK 79-21-41-330-069 Apply the Chromate Conversion Coating

      1. Apply the chromate conversion coating to the machined surface of the bushing.

      1. Refer to SPM TASK 70-38-02-300-503.

    7. SUBTASK 79-21-41-350-075 Record the Repair

      1. Vibroengrave 'VRS5316' adjacent to the part number.

      2. .Remove the metal lifted by marking.

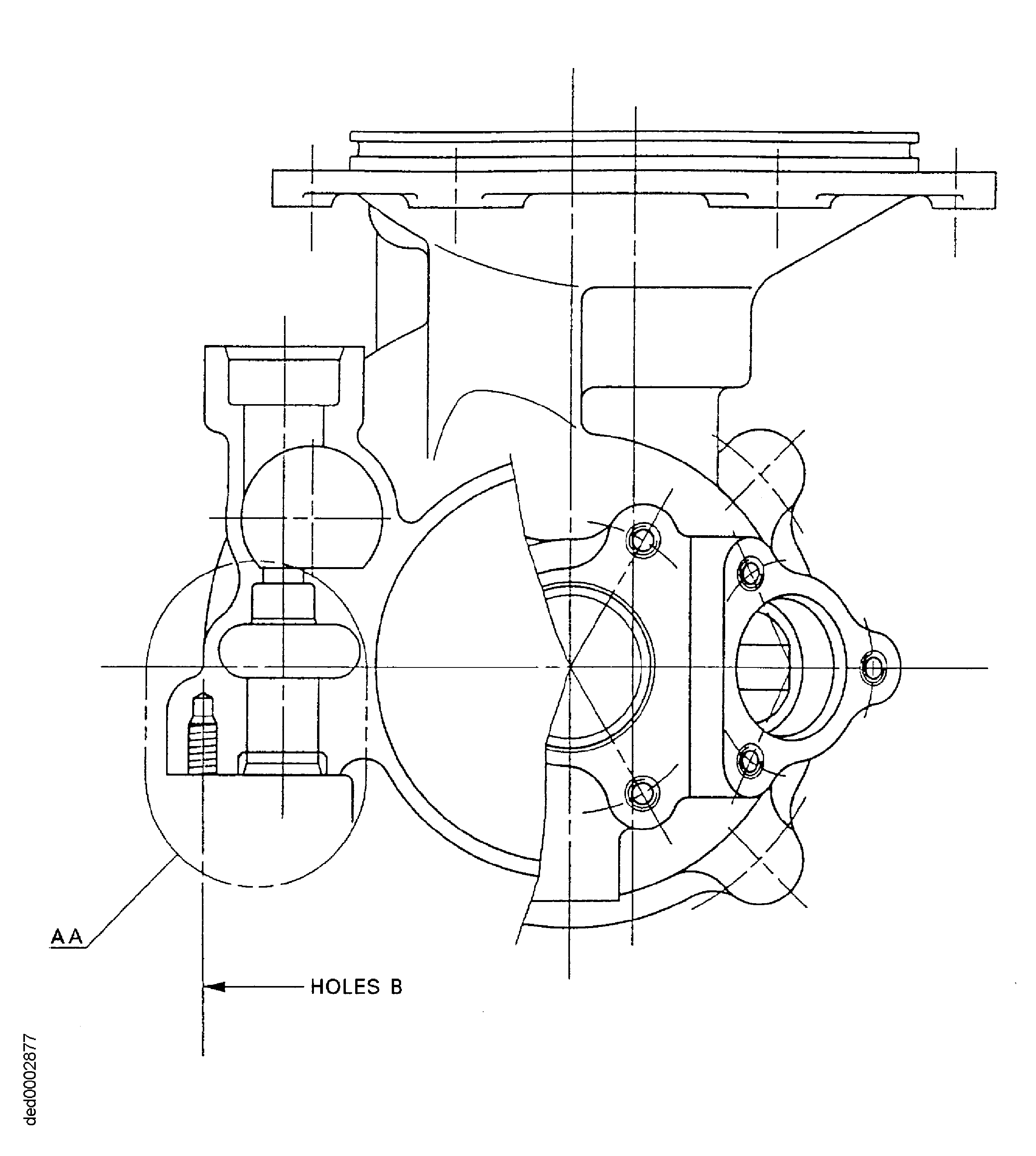

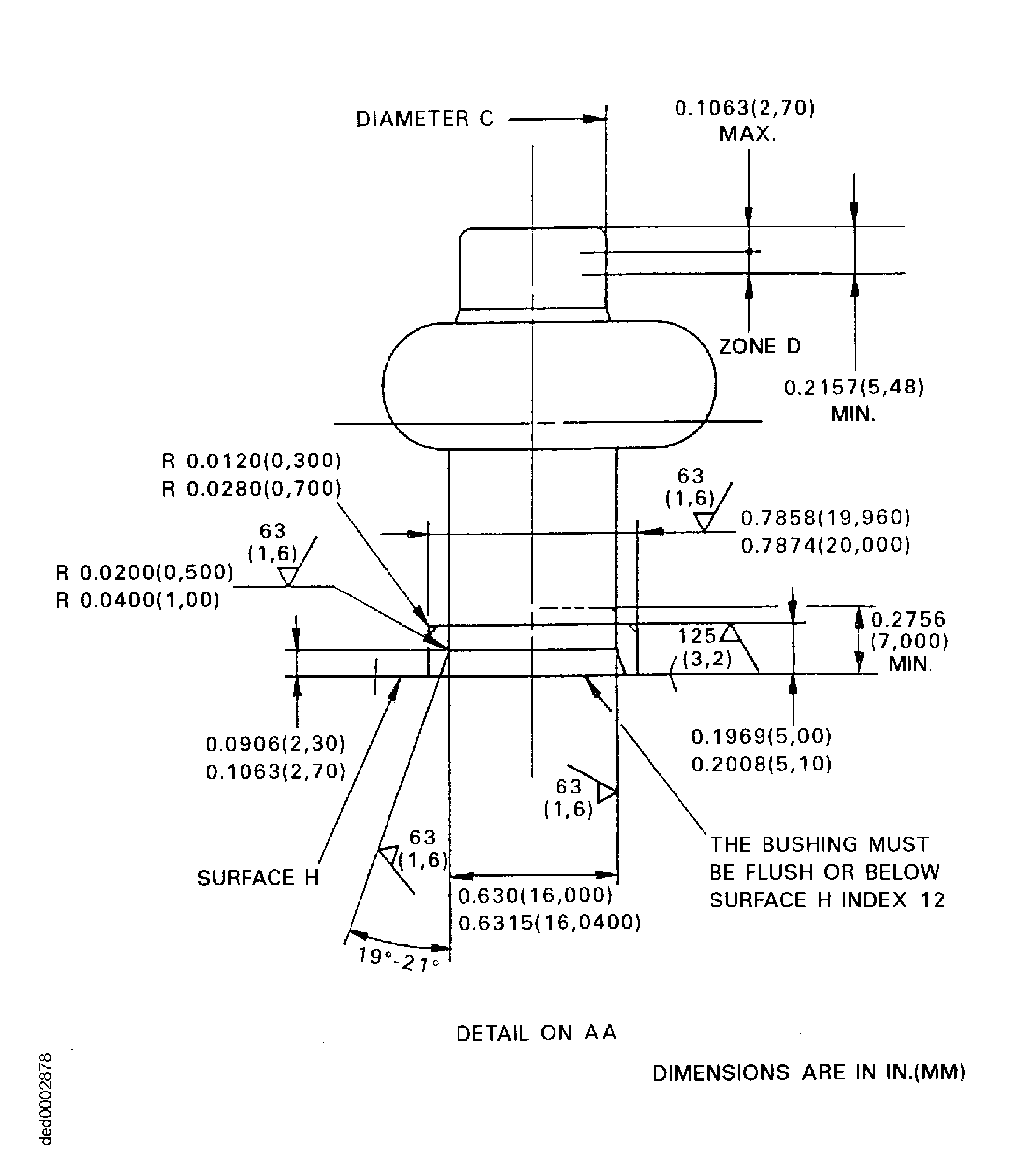

    8. Figure: Repair Details and Dimensions

    Repair Details and Dimensions

    Repair Details and Dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
Manufacturer Code:LOCAL
Enterprise Name:LOCALLY SUPPLIED
Manufacturer Code:LOCAL
Tool Number:Arbor press
Tool Name:Arbor Press
Manufacturer Code:LOCAL
Tool Number:Freezer
Tool Name:Freezer
Manufacturer Code:LOCAL
Tool Number:Grinding Machine
Tool Name:Grinding Machine
