Common Information
TASK 79-21-43-300-001 Fuel Cooled Oil Cooler (FCOC) - Related Parts - Blend Repair The Brackets, Repair-001 (VRS1682)
General
Price and Availability
Refer to IAE for any of the following:
Tools.
Engine parts.
Repair of spares.
The practices and processes referred to in the procedure by the TASK number are in the SPM.
To identify the consumable materials refer to the PCI.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Hand Held Pneumatic Grinder | LOCAL | Hand Held Pneumatic Grinder | ||
| Files, rotating (Silicon carbide) | LOCAL | Files, rotating (Silicon carbide) | ||
| Fluorescent Penetrant Inspection Equipment | LOCAL | Fluorescent penetrant inspection equipment |
Consumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 05-020 WATERPROOF SILICON CARBIDE | LOCAL | CoMat 05-020 | ||
| CoMat 05-021 WATERPROOF SILICON CARBIDE | 44197 | CoMat 05-021 |
Spares
NONESafety Requirements
NONEProcedure
Refer to Figure.
Dress until all damage is removed.
Dress to remove damage.
Maximum blend limit is 0.005 in. (0.12 mm) in depth.
Blend dressed area and polish out scores.
SUBTASK 79-21-43-350-051 Dress to Remove Damage
CAUTION
TITANIUM COMPONENTS.1. SILICON CARBIDE TYPE WHEELS, STONES AND ABRASIVE PAPERS ARE TO BE USED FOR THIS REPAIR.2. ALUMINUM OXIDE TYPES MUST NOT BE USED.3. THE MATERIAL WILL OXIDIZE AND CRACK IF MECHANICAL CUTTERS ARE USED HEAVILY. THIS HAS OCCURRED WHEN THE COMPONENT SHOWS DARK STRAW TO BLUE DISCOLORATION. IF AT ANY TIME THIS COLORATION OCCURS THE COMPONENTS MUST BE REJECTED.Visually examine repaired area for nicks, scratches and/or damage.
Use 10X magnifying glass.
Refer to TASK 79-21-43-200-403 (Inspection-003).
Do a visual inspection on the repaired area.
SUBTASK 79-21-43-220-060 Examine the Brackets
Refer to SPM TASK 70-23-01-230-501.
Make sure there are no cracks in the repaired area.
Penetrant crack test dressed area.
SUBTASK 79-21-43-230-056 Examine the Bracket for Cracks

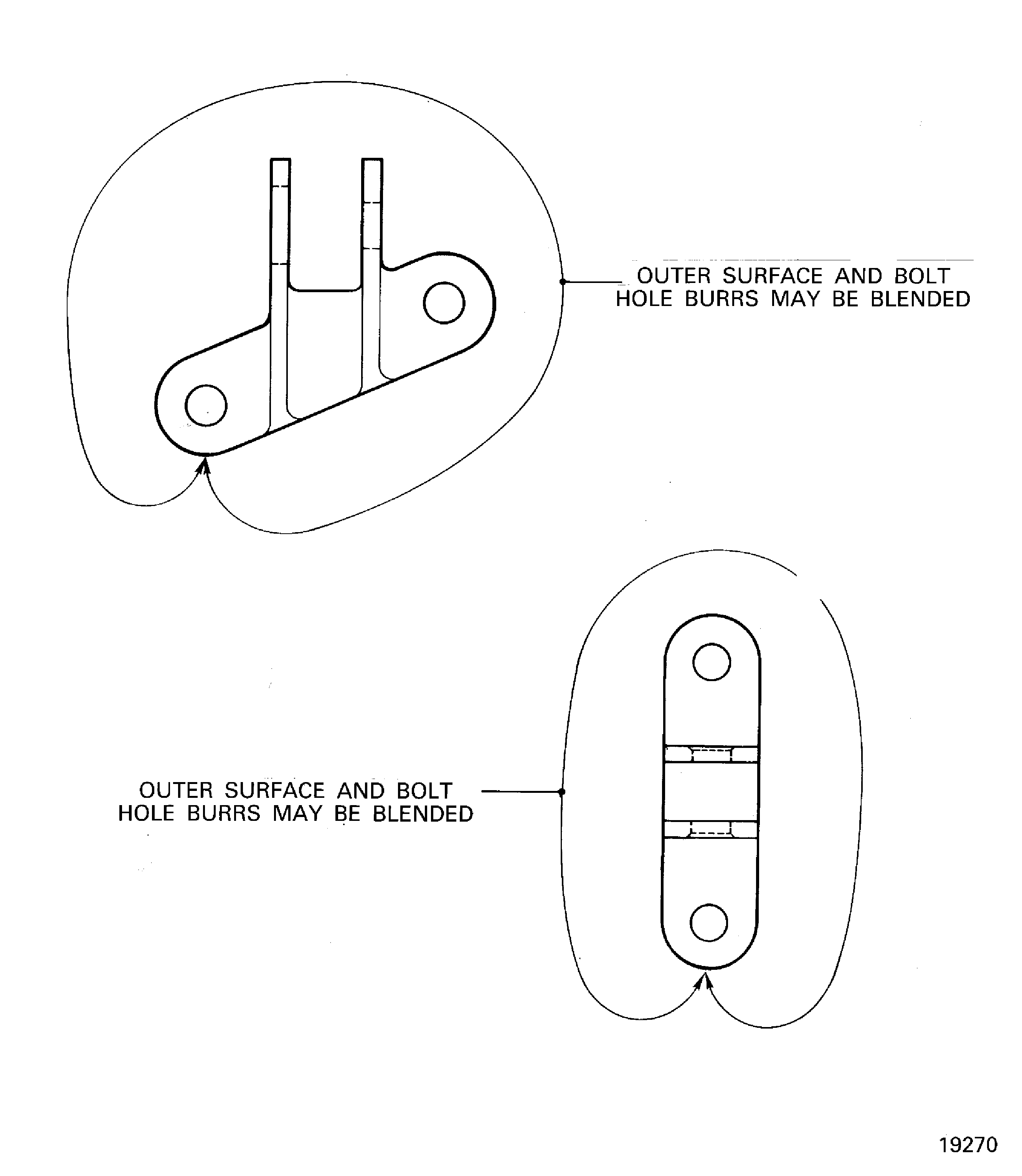

Figure: Bracket Repair Areas
Bracket Repair Areas
