TASK 79-21-43-300-003 Fuel Cooled Oil Cooler (FCOC) - Related Parts - Blend Repair The Pins, Repair-003 (VRS1706)
General
Price and availability
Refer to IAE for any of the following:
Tools
Engine parts
Repair of spares
The practices and processes referred to in the procedure by the TASK number are in the SPM.
To identify the consumable materials refer to the PCI.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Hand Held Pneumatic Grinder | LOCAL | Hand Held Pneumatic Grinder | ||
| Files, rotating (Silicon carbide) | LOCAL | Files, rotating (Silicon carbide) |
Consumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 05-020 WATERPROOF SILICON CARBIDE | LOCAL | CoMat 05-020 | ||
| CoMat 05-021 WATERPROOF SILICON CARBIDE | 44197 | CoMat 05-021 |
Spares
NONESafety Requirements
NONEProcedure
Refer to Figure.
Dress until all damage is removed.
Dress to remove damage.
Maximum blend limit is 0.005 in. (0.12 mm) in depth.
Blend dressed area, polish out scores.
SUBTASK 79-21-43-350-053 Dress to Remove Damage
Refer to the Inspection-001 TASK 79-21-43-200-401-A00.
Do a visual inspection of the repaired area
SUBTASK 79-21-43-220-063 Examine the Pin

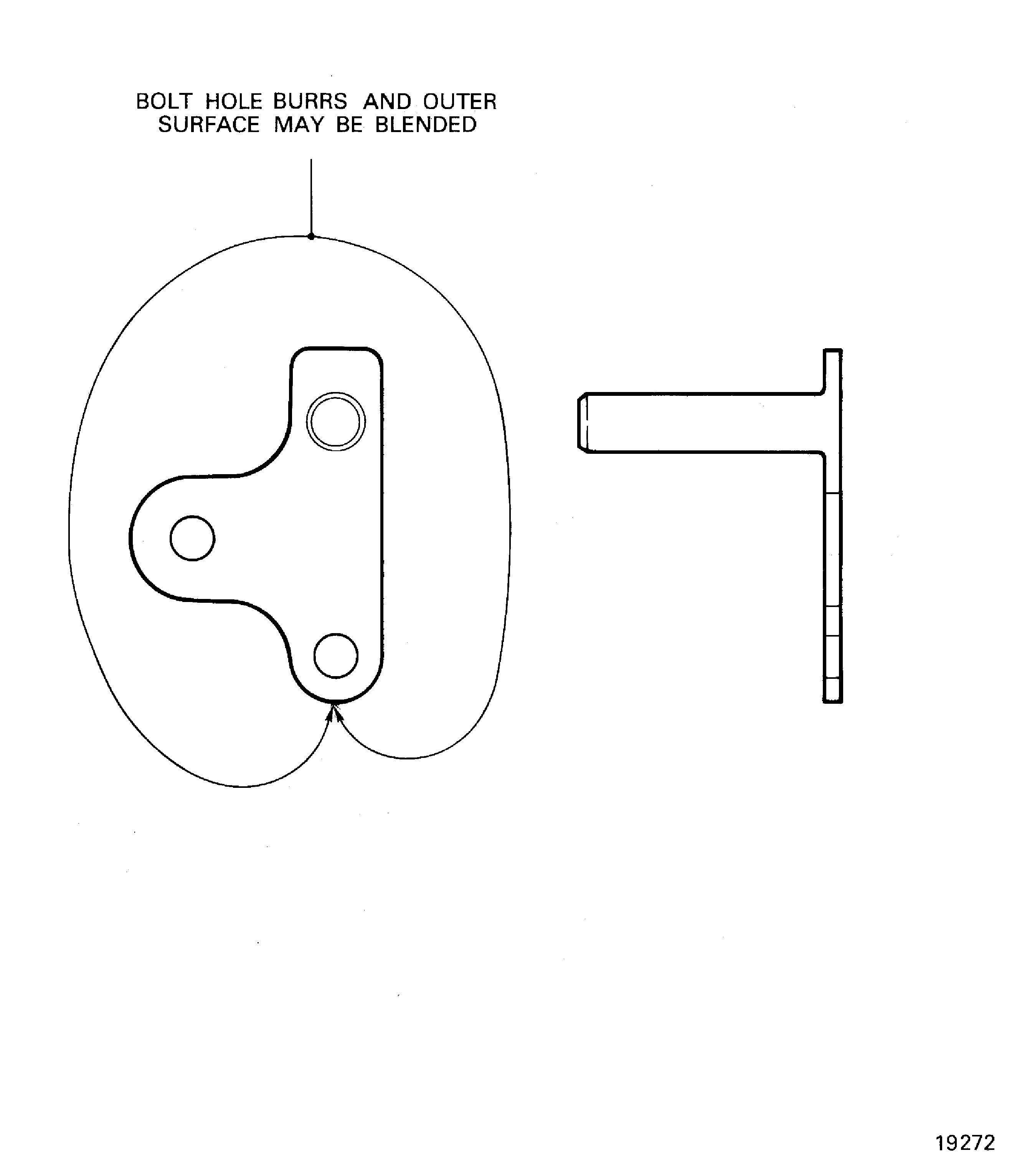

Figure: Pin Repair Areas
Pin Repair Areas
