TASK 79-21-49-300-015 Engine Pressure Oil Tubes - Blend Repair Surface Damage, Repair-015 (VRS1904)
Effectivity
FIG./ITEM | PART NO. |
03-500 | 5A8767 |
04-100 | 5A0245 |
04-100 | 5A8777 |
04-500 | 5A9356 |
05-100 | 5A8774 |
06-100 | 5A0246 |
06-100 | 5A8778 |
06-500 | 5A0247 |
06-500 | 5A8779 |
General
The practices and processes referred to in the procedure by the TASK number are in SPM.
Price and availability.
Refer to IAE for any these items.
Tools.
Repair parts.
Repair of spares.
NOTE
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Fluorescent penetrant inspection equipment | LOCAL | Fluorescent Penetrant Inspection Equipment |
Consumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 05-020 WATERPROOF SILICON CARBIDE | LOCAL | CoMat 05-020 | ||
| CoMat 05-021 WATERPROOF SILICON CARBIDE | 44197 | CoMat 05-021 |
Spares
NONESafety Requirements
NONEProcedure
Refer to Figure.
Refer to SPM TASK 70-35-03-300-501.
Use CoMat 05-020 WATERPROOF SILICON CARBIDE abrasive paper and CoMat 05-021 WATERPROOF SILICON CARBIDE, and/or fine file.
Surface finish of the repaired area must be the same as the adjacent area.
WARNING
TITANIUM COMPONENTSSILICON CARBIDE TYPE WHEELS, STONES AND ABRASIVE PAPERS ARE TO BE USED FOR THIS REPAIR.ALUMINIUM OXIDE MUST NOT BE USED.THE MATERIAL WILL OXIDE AND CRACK IF MECHANICAL CUTTERS ARE USED HEAVILY. THIS HAS OCCURED IF THE COMPONENT SHOWS DARK STRAW TO BLUE DISCOLORATION.Make smooth and/or hand polish to remove the nicks, galls and/or scores.
SUBTASK 79-21-49-350-054 Remove the Nicks, Galls, Scores and/or Pick-up from the Oil Tube Assembly
Refer to TASK 79-21-49-200-101 (INSPECTION-000).
Visually examine the repaired area for nicks, galls, scores and/or pick-up using 10X magnifying glass.
Visually examine the repaired area.
SUBTASK 79-21-49-230-061 Examine the Oil Tube Assembly
Refer to SPM TASK 70-23-05-230-501.
Make sure there are no cracks in the repaired area.
Fluorescent penetrant examine the repaired area.
SUBTASK 79-21-49-230-062 Examine the Oil Tube Assembly for Cracks

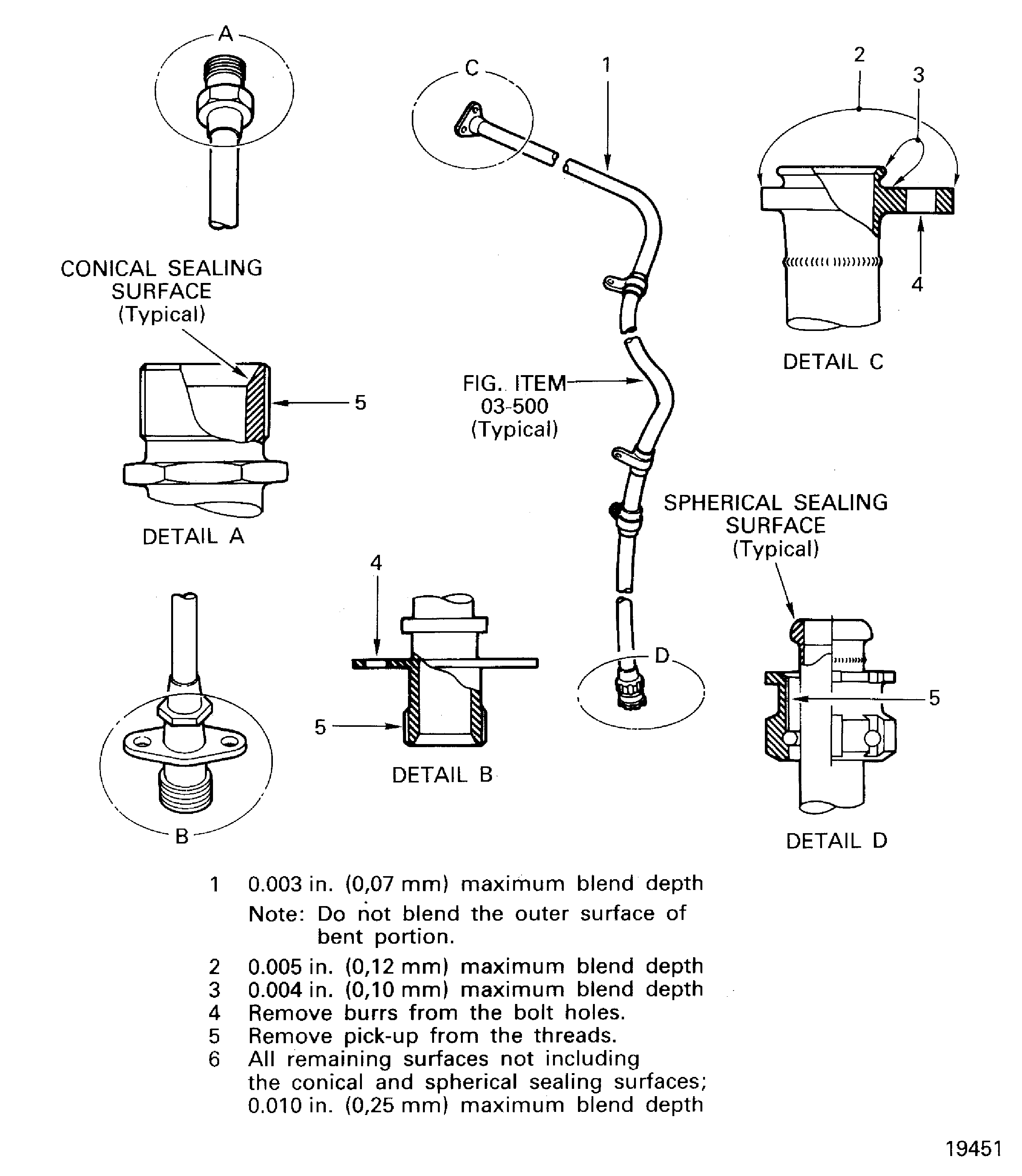

Figure: Repair Details and Dimensions
Repair Details and Dimensions
