TASK 79-22-41-300-001 Oil Scavenge Pump - Related Parts - Repair The Surfaces Of The Oil Scavenge Pump Cover Assembly, Repair-001 (VRS5332)
General
Price and availability - none
The practices and processes referred to in the procedure by the TASK numbers are in the SPM.
NOTE
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 05-020 WATERPROOF SILICON CARBIDE | LOCAL | CoMat 05-020 |
Spares
NONESafety Requirements
NONEProcedure
Refer to Figure.
The maximum depth of the blending is 0.037 in. (0.94 mm).
Refer to SPM TASK 70-35-03-300-501.
Use CoMat 05-020 WATERPROOF SILICON CARBIDE abrasive paper.
Hand polish and blend.
Repair, VRS5333 (Repair-002) TASK 79-22-41-300-002.
Repair the surface protection
SUBTASK 79-22-41-350-051 Blend Repair the Cover (01-050) Rough Surfaces at Location 1
Refer to Figure.
The maximum depth of the blending is 0.010 in. (0.25 mm).
Refer to SPM TASK 70-35-03-300-501.
Use CoMat 05-020 WATERPROOF SILICON CARBIDE abrasive paper. Smooth in a circumferential direction, not along the axis of the part.
Reject cover if grooves or excessive wear cannot be fully removed.
Hand polish and blend.
Not seal surfaces at location 2
The maximum depth of the blending is 0.005 in. (0.13 mm).
Refer to SPM TASK 70-35-03-300-501.
Use CoMat 05-020 WATERPROOF SILICON CARBIDE abrasive paper. Smooth in a circumferential direction, not along the axis of the part.
Reject cover if grooves or excessive wear cannot be fully removed.
Hand polish and blend.
Seal surfaces at location 3
Repair, VRS5333 (Repair-002) TASK 79-22-41-300-002.
Repair the surface protection.
SUBTASK 79-22-41-350-052 Blend Repair the Cover (01-050) Machined Surfaces

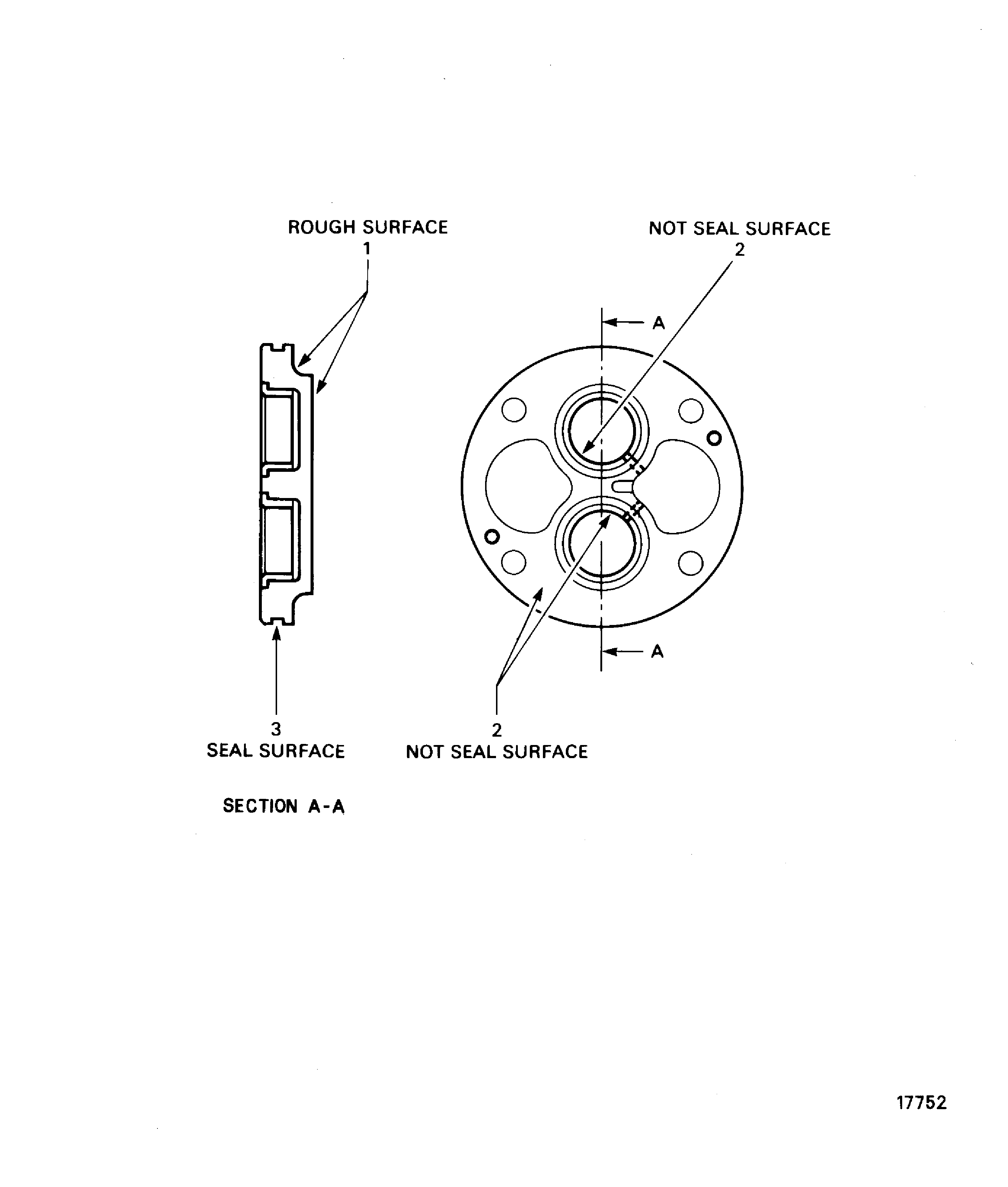

Figure: Locations On The Cover Assembly
Locations On The Cover Assembly
