TASK 79-22-41-300-006 Oil Scavenge Pump - Related Parts - Repair The Surfaces Of The Oil Scavenge Pump Drive Gear Assembly, Repair-006 (VRS5338)
General
Price and availability - none
The practices and processes referred to in the procedure by the TASK numbers are in the SPM.
NOTE
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 02-140 TRIANGULAR INDIA STONE, FINE GRIT | LOCAL | CoMat 02-140 |
Spares
NONESafety Requirements
NONEProcedure
Refer to Figure.
Refer to SPM TASK 70-35-03-300-501.
The maximum permitted blend length is 0.060 in. (1.50 mm).
The maximum permitted blend depth is 0.012 in. (0.30 mm).
Do not blend more than 50 percent of each tooth tip.
Do not blend one tooth after the other tooth in the same circumferential area
Blend the gear tip of the tooth area at location 1
Refer to SPM TASK 70-35-03-300-501.
The maximum permitted blend depth is 0.002 in. (0.05 mm).
The maximum permitted damaged area on each tooth is 10 percent of the face surface.
Blend the face surface of the gear tooth at location 2
Refer to SPM TASK 70-35-03-300-501.
A 40 microinches (1 micrometer) is necessary.
Reject the gear if the chips or nicks cannot be fully removed
Hand polish and blend the damage on the end surface at location 3
Refer to SPM TASK 70-35-03-300-501.
A 4 microinches (0.1 micrometer) is necessary.
Hand hone the damage on the bush journals at location 4
SUBTASK 79-22-41-350-054 Blend Repair the Drive Gear Assembly (01-180) Surfaces

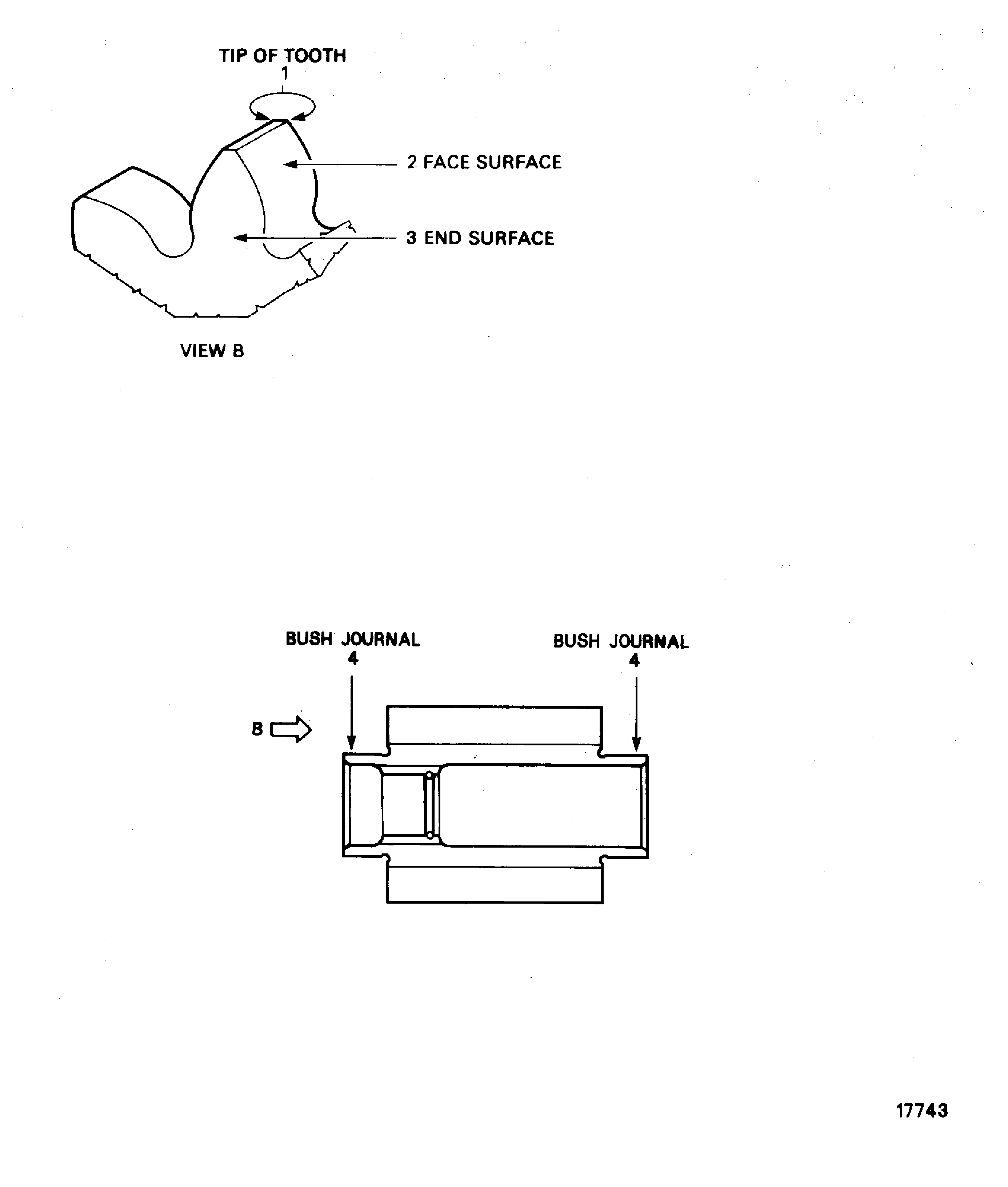

Figure: Locations On The Drive Gear Assembly
Locations On The Drive Gear Assembly
